Catalyst E And 4e
Name: Catalyst E and 4E: Catalyst E Handrims - Plastic Coated
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility

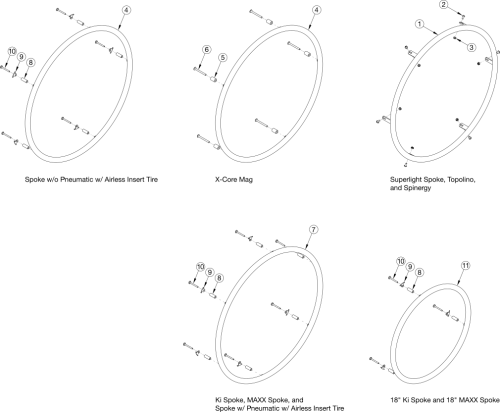

Part Picture
(Click on image to enlarge)
Handrim Hardware ChartFor more information see Handrim Hardware Chart. Quantity in Handrim Hardware Kits are for one wheel.
Tab mounted handrims must be installed prior to the tire being installed.
If the Spoke wheel (effective 2/27/2023) is present with a Pneumatic w/ Airless Insert tire, the 6 rivet nut handrim and hardware should be used. If the Spoke wheel is present and does NOT have a Pneumatic w/ Airless Insert tire, the 5 rivet nut handrim and hardware should be used.
Attachments:
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 8a, 9a, 10a | 502168 | Handrim Hardware Kit, 6 Rivet Nut, EACH- Used with MAXX Spoke wheels with standard handrim mount option. Used with Spoke wheel with standard handrim mount option when Pneumatic w/ Airless Insert tires ARE present. | Used with MAXX Spoke wheels with standard handrim mount option. Used with Spoke wheel with standard handrim mount option when Pneumatic w/ Airless Insert tires ARE present. | $38.61 | EA | |
| 8b, 9a, 10b | 113069 | Handrim Hardware Kit, Close Mount, 6 Rivet Nut, EACH- Used with MAXX Spoke wheels with close handrim mount option. Used with Spoke wheel with close handrim mount option when Pneumatic w/ Airless Insert tires ARE present. | Used with MAXX Spoke wheels with close handrim mount option. Used with Spoke wheel with close handrim mount option when Pneumatic w/ Airless Insert tires ARE present. | $54.12 | EA | |
| 8c, 10c | 117377 | Handrim Hardware Kit, Standard Mount, MAXX Mag, EACH- Used with MAXX Mag wheels with standard handrim mount option | Used with MAXX Mag wheels with standard handrim mount option | $32.64 | EA | |
| 8b, 10a | 117378 | Handrim Hardware Kit, Close Mount, MAXX Mag, EACH- Used with MAXX Mag wheels with close mount handrim mount option | Used with MAXX Mag wheels with close mount handrim mount option | $37.86 | EA | |
| 7a | 112819 | Handrim Plastic Coated 6 Rivet Nut 20"- Used on 20" MAXX Spoke and 20" MAXX Mag wheels. Replaced 200542. | Used on 20" MAXX Spoke and 20" MAXX Mag wheels. Replaced 200542. | $152.70 | EA | |
| 7b | 112820 | Handrim Plastic Coated 6 Rivet Nut 22"- Used on 22" MAXX Spoke, 22" Spoke, and 22" MAXX Mag wheels. Replaced part 100576. | Used on 22" MAXX Spoke, 22" Spoke, and 22" MAXX Mag wheels. Replaced part 100576. | $136.58 | EA | |
| 7c | 112821 | Handrim Plastic Coated 6 Rivet Nut 24"- Used on 24" MAXX Spoke, 24" Spoke, and 24" MAXX Mag wheels | Used on 24" MAXX Spoke, 24" Spoke, and 24" MAXX Mag wheels | $143.41 | EA | |
| 7d | 112822 | Handrim Plastic Coated 6 Rivet Nut 25"- Used on 25" MAXX Spoke wheels. Replaces 101870 | Used on 25" MAXX Spoke wheels. Replaces 101870 | $152.70 | EA | |
| 7e | 112823 | Handrim Plastic Coated 6 Rivet Nut 26"- Used on 26" MAXX Spoke wheels | Used on 26" MAXX Spoke wheels | $136.58 | EA | |
| 5a, 6a | 502173 | Handrim Hardware Kit, 5 Rivet Nut, Plastic Coated, EACH- Used with X Core Mag wheels with standard handrim mount option | Used with X Core Mag wheels with standard handrim mount option | $33.10 | EA | |
| 5b, 6b | 113070 | Handrim Hardware Kit, Close Mount, 5 Rivet Nut, EACH- Used with X Core Mag wheels with close mount handrim mount option | Used with X Core Mag wheels with close mount handrim mount option | $27.04 | EA | |
| 8a, 9b, 10a | 118971 | Handrim Hardware Kit, 5 Rivet Nut, Spoke Wheel, EACH- Used with Spoke wheel with standard handrim mount option when Pneumatic w/ Airless Insert tires are NOT present | Used with Spoke wheel with standard handrim mount option when Pneumatic w/ Airless Insert tires are NOT present | $34.65 | EA | |
| 8b, 9b, 10b | 118970 | Handrim Hardware Kit, Close Mount, 5 Rivet Nut, Spoke Wheel, EACH- Used with Spoke wheel with close handrim mount option when Pneumatic w/ Airless Insert tires are NOT present | Used with Spoke wheel with close handrim mount option when Pneumatic w/ Airless Insert tires are NOT present | $37.60 | EA | |
| 4a | 101963 | Handrim Plastic Coated 5 Rivet Nut 20"- Used on 20" 5-Spoke X Core Mag wheels | Used on 20" 5-Spoke X Core Mag wheels | $140.71 | EA | |
| 4b | 101964 | Handrim Plastic Coated 5 Rivet Nut 22"- Used on 22" 5-Spoke X Core Mag and 22" Spoke wheel | Used on 22" 5-Spoke X Core Mag and 22" Spoke wheel | $140.71 | EA | |
| 4c | 100976 | Handrim Plastic Coated 5 Rivet Nut 24"- Used on 24" 5-Spoke X Core Mag and 24" Spoke wheel | Used on 24" 5-Spoke X Core Mag and 24" Spoke wheel | $132.37 | EA | |
| 2 | 502170 | Handrim Hardware Kit, Superlight, EACH- Used with Superlight Spoke wheels | Used with Superlight Spoke wheels | $16.55 | EA | |
| 1a | 112812 | Handrim Plastic Coated 6 Tab 24"- Used on 24" Superlight wheels. Replaced 100836. | Used on 24" Superlight wheels. Replaced 100836. | $156.17 | EA | |
| 1b | 101091 | Handrim Plastic Coated 6 Tab 25"- Used on 25" Superlight wheels | Used on 25" Superlight wheels | $163.87 | EA | |
| 2 | 100536 | M5 x 12 BTN SHCS ZC- Used with Superlight Spoke wheels | Used with Superlight Spoke wheels | $2.21 | ||
| 5a | 101756 | Handrim Spacer Plastic Coated Rivet- Used with X Core Mag wheels | Used with X Core Mag wheels | $0.56 | ||
| 6a | 100724 | M5 x 55 PH TRS HD M/S ZC- Used with X Core Mag wheels | Used with X Core Mag wheels | $1.10 | ||
| 8a | 100653 | Handrim Spacer Spoke- Used with MAXX Spoke and Spoke wheel with standard handrim mount option | Used with MAXX Spoke and Spoke wheel with standard handrim mount option | $1.10 | ||
| 8c | 100629 | Handrim Spacer Alum Ano Riv- Used with MAXX Mag wheels with standard handrim mount option | Used with MAXX Mag wheels with standard handrim mount option | $1.16 | EA | |
| 9a | 100698 | Handrim Tab- Used with MAXX Spoke wheels. Used with Spoke wheel when Pneumatic w/ Airless Insert tires ARE present. Tabs are included / installed with MAXX Spoke wheels and Spoke wheel and tire assemblies. | Used with MAXX Spoke wheels. Used with Spoke wheel when Pneumatic w/ Airless Insert tires ARE present. Tabs are included / installed with MAXX Spoke wheels and Spoke wheel and tire assemblies. | $4.17 | ||
| 9b | 116732 | Wheel Tabs, Long, 5 Rivet Nut- Used with Spoke wheel when Pneumatic w/ Airless Insert tires are NOT present | Used with Spoke wheel when Pneumatic w/ Airless Insert tires are NOT present | $4.17 | ||
| 10a | 100654 | M5 x 40 DIN7985 PH Pan HD M/S ZC- Used with MAXX Spoke and Spoke wheel with standard handrim mount option | Used with MAXX Spoke and Spoke wheel with standard handrim mount option | $1.66 | ||
| 10c | 103545 | M5 x 50 DIN7985 PH PAN HD M/S BLK ZC- Used with MAXX Mag wheels with standard handrim mount option | Used with MAXX Mag wheels with standard handrim mount option | $4.28 |
