Catalyst E And 4e

Name: Catalyst E and 4E: Catalyst E Armrests - Height Adjustable Tall T-arm
Manufacturer: Ki Mobility

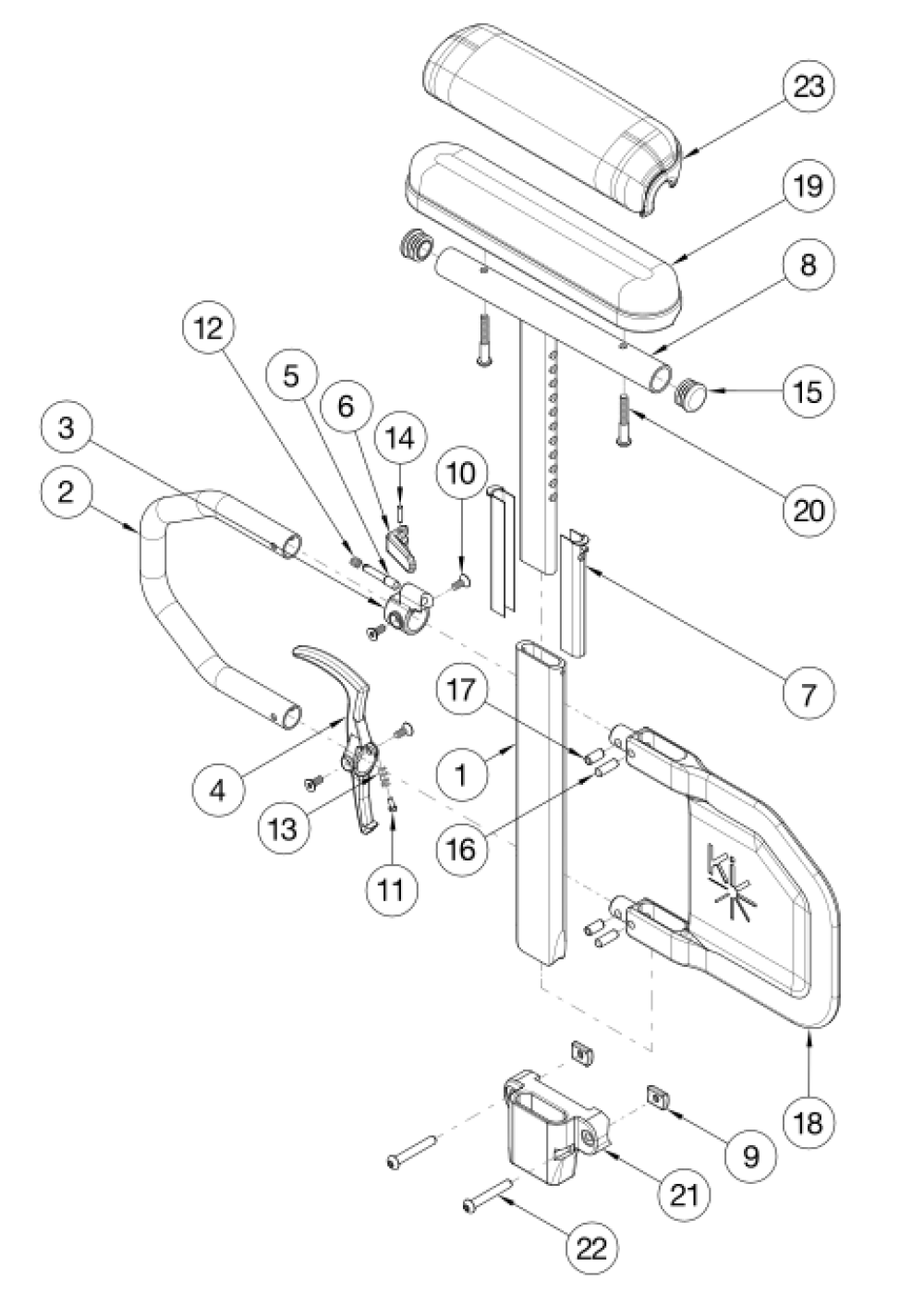

Catalyst E Armrests - Height Adjustable Tall T-arm parts diagram
(Click on image to enlarge)

Short assemblies used with 14" - 17" Seat Depths. Long assemblies used with 18" - 20" Seat Depths. If retrofitting, Receivers are needed.
Pos. Part # Description Price UOM Buy
1 - 7, 8b, 9 - 18b, 19a, 20a, 21, 22 115892 Height Adj T-Arm Assm w/ Long Side Shield and Standard Pad Full, 1" Receiver, Catalyst E
$269.37
EA
1 - 7, 8b, 9 - 18b, 19a, 20a, 21, 22 115893 Height Adj T-Arm Assm w/ Long Side Shield and Standard Pad Full, 1" Receiver, Catalyst E, PAIR
$519.65
EA
1 - 7, 8b, 9 - 18a, 19a, 20a, 21, 22 115894 Height Adj T-Arm Assm w/ Short Side Shield and Standard Pad Full, 1" Receiver, Catalyst E
$269.37
EA
1 - 7, 8b, 9 - 18a, 19a, 20a, 21, 22 115895 Height Adj T-Arm Assm w/ Short Side Shield and Standard Pad Full, 1" Receiver, Catalyst E, PAIR
$519.65
EA
1 - 7, 8a, 9 - 18b, 19b, 20a, 21, 22 115896 Height Adj T-Arm Assm w/ Long Side Shield and Standard Pad Desk, 1" Receiver, Catalyst E
$279.14
EA
1 - 7, 8a, 9 - 18b, 19b, 20a, 21, 22 115897 Height Adj T-Arm Assm w/ Long Side Shield and Standard Pad Desk, 1" Receiver, Catalyst E, PAIR
$539.18
EA
1 - 7, 8a, 9 - 18a, 19b, 20a, 21, 22 115898 Height Adj T-Arm Assm w/ Short Side Shield and Standard Pad Desk, 1" Receiver, Catalyst E
$279.14
EA
1 - 7, 8a, 9 - 18a, 19b, 20a, 21, 22 115899 Height Adj T-Arm Assm w/ Short Side Shield and Standard Pad Desk, 1" Receiver, Catalyst E, PAIR
$539.18
EA
1 - 7, 8b, 9 - 18b, 20b, 21, 22, 23a 115900 Height Adj T-Arm Assm w/ Long Side Shield and Waterfall Pad Full, 1" Receiver, Catalyst E
$269.37
EA
1 - 7, 8b, 9 - 18b, 20b, 21, 22, 23a 115901 Height Adj T-Arm Assm w/ Long Side Shield and Waterfall Pad Full, 1" Receiver, Catalyst E, PAIR
$519.65
EA
1 - 7, 8b, 9 - 18a, 20b, 21, 22, 23a 115902 Height Adj T-Arm Assm w/ Short Side Shield and Waterfall Pad Full, 1" Receiver, Catalyst E
$269.37
EA
1 - 7, 8b, 9 - 18a, 20b, 21, 22, 23a 115903 Height Adj T-Arm Assm w/ Short Side Shield and Waterfall Pad Full, 1" Receiver, Catalyst E, PAIR
$519.65
EA
1 - 7, 8a, 9 - 18b, 20b, 21, 22, 23b 115904 Height Adj T-Arm Assm w/ Long Side Shield and Waterfall Pad Desk, 1" Receiver, Catalyst E
$279.14
EA
1 - 7, 8a, 9 - 18b, 20b, 21, 22, 23b 115905 Height Adj T-Arm Assm w/ Long Side Shield and Waterfall Pad Desk, 1" Receiver, Catalyst E, PAIR
$539.18
EA
1 - 7, 8a, 9 - 18a, 20b, 21, 22, 23b 115906 Height Adj T-Arm Assm w/ Short Side Shield and Waterfall Pad Desk, 1" Receiver, Catalyst E
$279.14
EA
1 - 7, 8a, 9 - 18a, 20b, 21, 22, 23b 115907 Height Adj T-Arm Assm w/ Short Side Shield and Waterfall Pad Desk, 1" Receiver, Catalyst E, PAIR
$539.18
EA
1 - 7, 8b, 10 - 18b, 19a, 20a 116196 Height Adj Tall T-Arm Assm w/Long Side Shield and Std Pad Full
$273.47
EA
1 - 7, 8b, 10 - 18b, 19a, 20a 116197 Height Adj Tall T-Arm Assm w/Long Side Shield and Std Pad Full, Pair
$546.92
EA
1 - 7, 8b, 10 - 18a, 19a, 20a 116164 Height Adjustable Tall T-Arm Assembly w/Short Side Shield and Std Pad Full
$273.47
EA
1 - 7, 8b, 10 - 18a, 19a, 20a 116165 Height Adjustable Tall T-Arm Assembly w/Short Side Shield and Std Pad Full, Pair
$546.92
EA
1 - 7, 8a, 10 - 18b, 19b, 20a 116194 Height Adj Tall T-Arm Assm w/Long Side Shield and Std Pad Desk
$273.47
EA
1 - 7, 8a, 10 - 18b, 19b, 20a 116195 Height Adj Tall T-Arm Assm w/Long Side Shield and Std Pad Desk, Pair
$546.92
EA
1 - 7, 8a, 10 - 18a, 19b, 20a 116162 Height Adjustable Tall T-Arm Assembly w/Short Side Shield and Std Pad Desk
$273.47
EA
1 - 7, 8a, 10 - 18a, 19b, 20a 116163 Height Adjustable Tall T-Arm Assembly w/Short Side Shield and Std Pad Desk, Pair
$546.92
EA
1 - 7, 8b, 10 - 18b, 20b, 23a 116200 Height Adj Tall T-Arm Assm w/Long Side Shield and Waterfall Pad Full
$283.71
EA
1 - 7, 8b, 10 - 18b, 20b, 23a 116201 Height Adj Tall T-Arm Assm w/Long Side Shield and Waterfall Pad Full, Pair
$567.44
EA
1 - 7, 8b, 10 - 18a, 20b, 23a 116168 Height Adjustable Tall T-Arm Assembly w/Short Side Shield and Waterfall Pad Full
$283.71
EA
1 - 7, 8b, 10 - 18a, 20b, 23a 116169 Height Adjustable Tall T-Arm Assembly w/Short Side Shield and Waterfall Pad Full, Pair
$567.44
EA
1 - 7, 8a, 10 - 18b, 20b, 23b 116198 Height Adj Tall T-Arm Assm w/Long Side Shield and Waterfall Pad Desk
$283.71
EA
1 - 7, 8a, 10 - 18b, 20b, 23b 116199 Height Adj Tall T-Arm Assm w/Long Side Shield and Waterfall Pad Desk, Pair
$567.44
EA
1 - 7, 8a, 10 - 18a, 20b, 23b 116166 Height Adjustable Tall T-Arm Assembly w/Short Side Shield and Waterfall Pad Desk
$283.71
EA
1 - 7, 8a, 10 - 18a, 20b, 23b 116167 Height Adjustable Tall T-Arm Assembly w/Short Side Shield and Waterfall Pad Desk, Pair
$567.44
EA
1 113137 Height Adjustable T-Arm Post, Tall
$28.10
EA
2 113138 Height Adjustable T-Arm Transfer Tube, Tall
$36.74
EA
3, 5, 6, 10, 12, 14 505490 Height Adjustable T-Arm Upper Latch Assembly
$45.41
EA
7 000090 Height Adjustable T Armrest Shim
$2.86
8a, 15 116379 Height Adjustable Tall T Armrest Upper Desk w/ Tube End Plug
$85.82
EA
8b, 15 116380 Height Adjustable Tall T Armrest Upper Full w/ Tube End Plug
$85.82
EA
9 111954 Threaded Half Nut Plate
$6.72
EA
10 003458 M5 X 12mm FHCS BLK ZN W/ Patch
$1.17
11 000152 Height Adjustable T Armrest Release Spring Button
$1.21
EA
13 000135 Height Adjustable T Armrest Release Lever Spring
$1.21
EA
15 100803 Tube End Plug 7/8"
$1.77
EA
16 003641 .25" x .75" Dowel Pin
$1.17
EA
17 003457 M5 x 14mm Barrel Nut
$1.17
EA
19a 100500 Arm Pad Full
$26.45
EA
19b 100501 Arm Pad Desk
$26.45
EA
20a 100696 M5 x 30mm PPH Capscrew- Used with Standard Arm Pads
$1.77
EA
20b 100654 M5 x 40 DIN7985 PH Pan HD M/S ZC- Used with Waterfall Arm Pads
$1.77
21 112010 T-Arm Receiver
$3.42
EA
22 100797 M6 x 40 BHCS BLK ZC
$1.17
EA
23a 102452 Waterfall Arm Pad Full
$36.71
EA
23b 102521 Waterfall Arm Pad Desk
$36.71
EA
4, 10, 11, 13 505507 Height Adjustable T-Arm Release Lever Assembly
$9.50
EA
16, 17, 18a 116377 Height Adjustable Tall T-Arm Short Shield Assembly
$18.40
EA
16, 17, 18b 116376 Height Adj Tall T-Arm Long Side Shield Assembly
$43.85
EA
9, 21, 22 115844 T-Arm Receiver Assembly, Catalyst E
$19.09
EA
1 - 7, 10 - 14, 16, 17, 18a 114150 Height Adjustable T-Arm Short Lower Assembly, Tall- Does not include t-arm upper, arm pad or arm pad screws
$159.47
EA
1 - 7, 10 - 14, 16, 17, 18b 114151 Height Adjustable T-Arm Long Lower Assy, Tall- Does not include t-arm upper, arm pad or arm pad screws
$159.47
EA
1 - 7, 8a, 10 - 18a 114432 Height Adjustable T-Arm Short Side Shield, Desk, Tall- Does not include arm pad or arm pad screws
$243.46
EA
1 - 7, 8b, 10 - 18a 114433 Height Adjustable T-Arm Short Side Shield, Full, Tall- Does not include arm pad or arm pad screws
$243.46
EA
1 - 7, 8a, 10 - 18b 114434 Height Adjustable T-Arm Long Side Shield, Desk, Tall- Does not include arm pad or arm pad screws
$243.46
EA
1 - 7, 8b, 10 - 18b 114435 Height Adjustable T-Arm Full, Long, Tall- Does not include arm pad or arm pad screws
$243.46
EA
