Name: Catalyst E and 4E: Catalyst E Footplates - Angle Adjustable Front Mount
Manufacturer: Ki Mobility

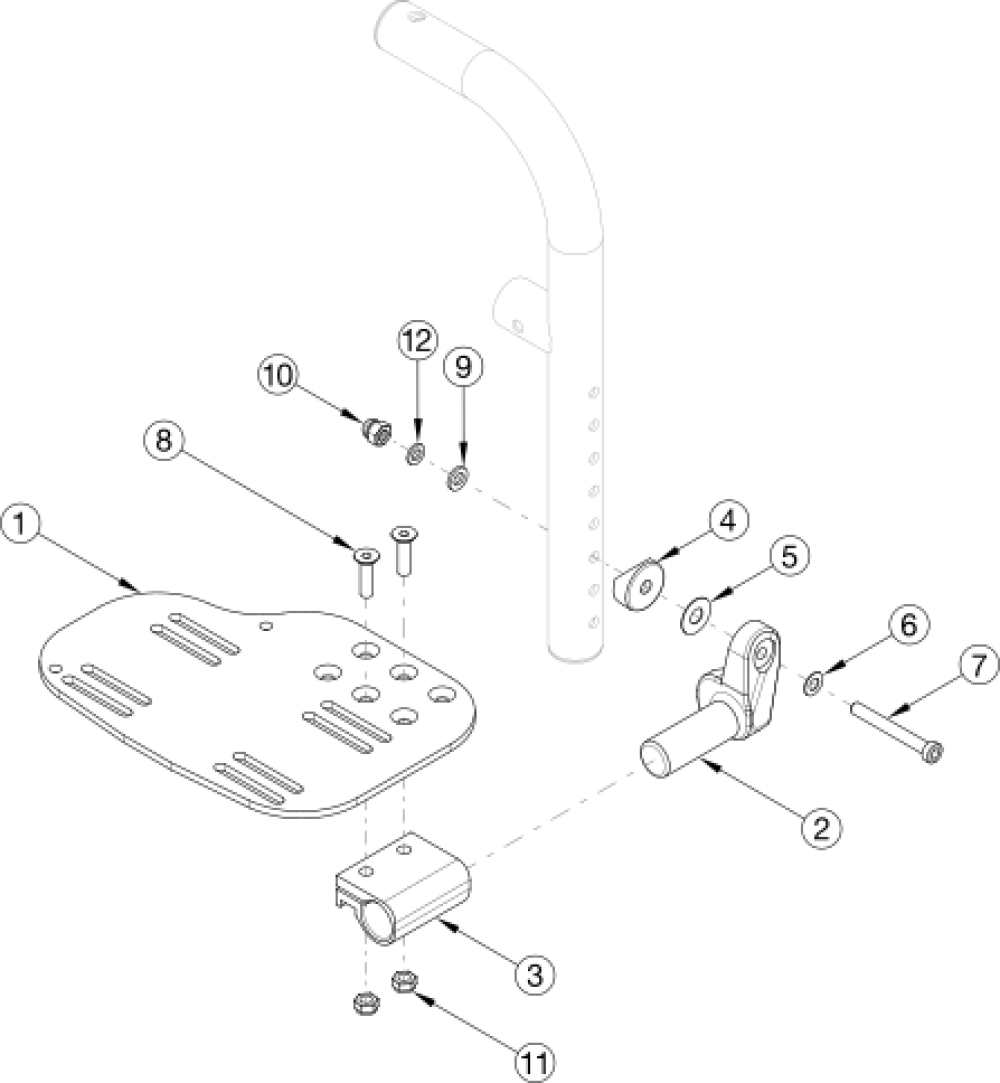

Catalyst E Footplates - Angle Adjustable Front Mount parts diagram
(Click on image to enlarge)

Sizes for footplates are based on seat width.
Pos.Part #DescriptionPriceUOMBuy
2b, 3 - 12502214Footplate Hardware Kit Angle Adjustable for Front Mount Hanger Left
$48.23
EA
2a, 3 - 12502215Footplate Hardware Kit Angle Adjustable for Front Mount Hanger Right
$48.23
EA
2a, 2b, 3 - 12502216Footplate Hardware Kit Angle Adjustable for Front Mount Hanger Pair
$96.46
EA
1a, 2b, 3 - 12501055Footplate Angle Adjustable Front Mount Assembly 14-15 Wide Left
$124.27
EA
1b, 2a, 3 - 12501056Footplate Angle Adjustable Front Mount Assembly 14-15 Wide Right
$124.27
EA
1a, 1b, 2a, 2b, 3 - 12501057Footplate Angle Adjustable Front Mount Assembly 14-15 Wide Pair
$248.56
EA
1c, 2b, 3 - 12501058Footplate Angle Adjustable Front Mount Assembly 16-17 Wide Left
$124.27
EA
1d, 2a, 3 - 12501059Footplate Angle Adjustable Front Mount Assembly 16-17 Wide Right
$124.27
EA
1c, 1d, 2a, 2b, 3 - 12501060Footplate Angle Adjustable Front Mount Assembly 16-17 Wide Pair
$248.56
EA
1e, 2b, 3 - 12501061Footplate Angle Adjustable Front Mount Assembly 18-24 Wide Left
$124.27
EA
1f, 2a, 3 - 12501062Footplate Angle Adjustable Front Mount Assembly 18-24 Wide Right
$124.27
EA
1e, 1f, 2a, 2b, 3 - 12501063Footplate Angle Adjustable Front Mount Assembly 18-24 Wide Pair
$248.56
EA
1a, 2b, 3 - 12502205Footplate Kit Angle Adjustable w/ Heel Loop for Front Mount Hanger 14-15 Wide Left- Heel Loop with attaching hardware is included but not pictured
$138.37
EA
1b, 2a, 3 - 12502206Footplate Kit Angle Adjustable w/ Heel Loop for Front Mount Hanger 14-15 Wide Right- Heel Loop with attaching hardware is included but not pictured
$138.37
EA
1a, 1b, 2a, 2b, 3 - 12502207Footplate Kit Angle Adjustable w/ Heel Loop for Front Mount Hanger 14-15 Wide Pair- Heel Loop with attaching hardware is included but not pictured
$276.76
EA
1c, 2b, 3 - 12502208Footplate Kit Angle Adjustable w/ Heel Loop for Front Mount Hanger 16-17 Wide Left- Heel Loop with attaching hardware is included but not pictured
$138.37
EA
1d, 2a, 3 - 12502209Footplate Kit Angle Adjustable w/ Heel Loop for Front Mount Hanger 16-17 Wide Right- Heel Loop with attaching hardware is included but not pictured
$138.37
EA
1c, 1d, 2a, 2b, 3 - 12502210Footplate Kit Angle Adjustable w/ Heel Loop for Front Mount Hanger 16-17 Wide Pair- Heel Loop with attaching hardware is included but not pictured
$276.76
EA
1e, 2b, 3 - 12502211Footplate Kit Angle Adjustable w/ Heel Loop for Front Mount Hanger 18-24 Wide Left- Heel Loop with attaching hardware is included but not pictured
$138.37
EA
1f, 2a, 3 - 12502212Footplate Kit Angle Adjustable w/ Heel Loop for Front Mount Hanger 18-24 Wide Right- Heel Loop with attaching hardware is included but not pictured
$138.37
EA
1e, 1f, 2a, 2b, 3 - 12502213Footplate Kit Angle Adjustable w/ Heel Loop for Front Mount Hanger 18-24 Wide Pair- Heel Loop with attaching hardware is included but not pictured
$276.76
EA
1a000105Footplate Angle Adjustable 14-15" Wide CAT/TILT Left (Std ELR Right)
$66.53
EA
1b000106Footplate Angle Adjustable 14-15" Wide CAT/TILT Right (Std ELR Left)
$66.53
EA
1c000107Footplate Angle Adjustable 16-17" Wide CAT/TILT Left (Std ELR Right)
$66.53
EA
1d000108Footplate Angle Adjustable 16-17" Wide CAT/TILT Right (Std ELR Left)
$66.53
EA
1e000109Footplate Angle Adjustable 18-24" Wide CAT/TILT Left (Std ELR Right)
$66.53
EA
1f000110Footplate Angle Adjustable 18-24" Wide CAT/TILT Right (Std ELR Left)
$66.53
EA
2a000048Footplate Angle Adj Casting 1" Right
$21.11
EA
2b000050Footplate Angle Adj Casting 1" Left
$21.11
EA
3.0100502Angle Adj Footplate Clamp 2"
$13.89
EA
4.0000055Saddle 1"
$1.66
EA
5.0000428Wear Washer
$2.76
EA
6.0101455M6 Belleville Washer (.252 x .551 x .050)
$1.66
EA
7.0101124M6 x 50 Low SHCS BLK ZC
$1.66
EA
8.0100662M6 x 25 FSHCS BLK ZC
$1.66
9.0100746M6 Flat Washer Blk Zn
$1.66
EA
10.0100558M6 NYL INS Domed Cap L/N ZC
$1.10
EA
11.0100658M6 Nylock Nut Blk Zn
$1.10
EA
12.0102072Washer Nylon .234 ID x .406 OD x .062 Thick
$0.56
EA
