Catalyst E And 4e
Name: Catalyst E and 4E: Catalyst E Handrims - Aluminum Anodized
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility

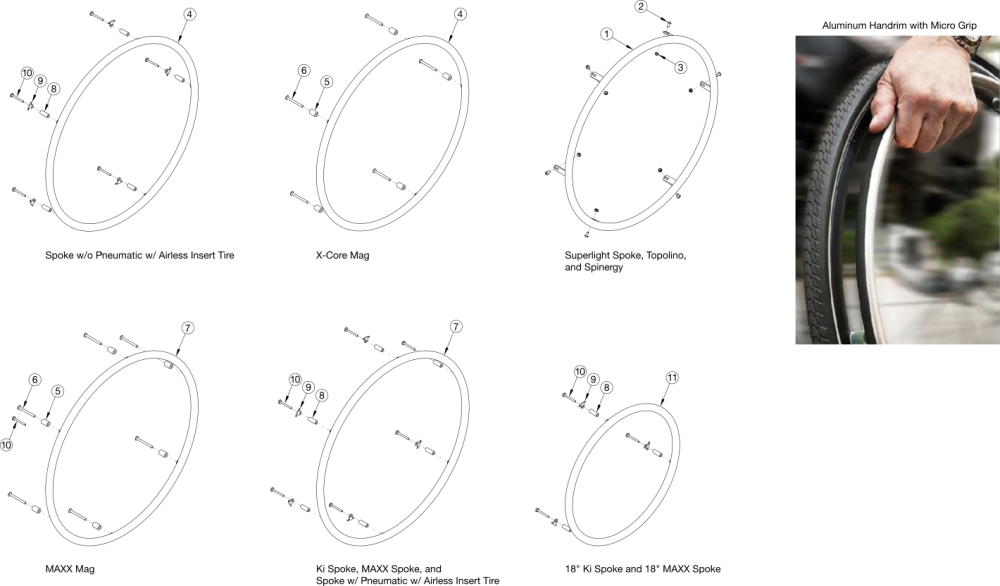

Part Picture
(Click on image to enlarge)
Handrim Hardware ChartFor more information see Handrim Hardware Chart. Quantity in Handrim Hardware Kits are for one wheel.
Tab mounted handrims must be installed prior to the tire being installed.
If the Spoke wheel (effective 2/27/2023) is present with a Pneumatic w/ Airless Insert tire, the 6 rivet nut handrim and hardware should be used. If the Spoke wheel is present and does NOT have a Pneumatic w/ Airless Insert tire, the 5 rivet nut handrim and hardware should be used.
Attachments:
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 8a, 9a, 10a | 502168 | Handrim Hardware Kit, 6 Rivet Nut, EACH- Used with MAXX Spoke wheels with standard handrim mount option. Used with Spoke wheel with standard handrim mount option when Pneumatic w/ Airless Insert tires ARE present. | Used with MAXX Spoke wheels with standard handrim mount option. Used with Spoke wheel with standard handrim mount option when Pneumatic w/ Airless Insert tires ARE present. | $38.61 | EA | |
| 8b, 9a, 10b | 113069 | Handrim Hardware Kit, Close Mount, 6 Rivet Nut, EACH- Used with MAXX Spoke wheels with close handrim mount option. Used with Spoke wheel with close handrim mount option when Pneumatic w/ Airless Insert tires ARE present. | Used with MAXX Spoke wheels with close handrim mount option. Used with Spoke wheel with close handrim mount option when Pneumatic w/ Airless Insert tires ARE present. | $54.12 | EA | |
| 5a, 6c | 117377 | Handrim Hardware Kit, Standard Mount, MAXX Mag, EACH- Used with MAXX Mag wheels with standard handrim mount option | Used with MAXX Mag wheels with standard handrim mount option | $32.64 | EA | |
| 5b, 10a | 117378 | Handrim Hardware Kit, Close Mount, MAXX Mag, EACH- Used with MAXX Mag wheels with close mount handrim mount option | Used with MAXX Mag wheels with close mount handrim mount option | $37.86 | EA | |
| 7a | 200536 | Handrim Aluminum Anodized 6 Rivet Nut 20"- Used with 20" MAXX Spoke and 20" MAXX Mag wheels | Used with 20" MAXX Spoke and 20" MAXX Mag wheels | $84.95 | EA | |
| 7a | 502246 | Handrim Aluminum Anodized 6 Rivet Nut 20" w/ Micro Grip- Used with 20" MAXX Spoke and 20" MAXX Mag wheels | Used with 20" MAXX Spoke and 20" MAXX Mag wheels | $133.11 | EA | |
| 7b | 100560 | Handrim Aluminum Anodized 6 Rivet Nut 22"- Used with 22" MAXX Spoke, 22" Spoke, and 22" MAXX Mag wheels | Used with 22" MAXX Spoke, 22" Spoke, and 22" MAXX Mag wheels | $77.22 | EA | |
| 7b | 502247 | Handrim Aluminum Anodized 6 Rivet Nut 22" w/ Micro Grip- Used with 22" MAXX Spoke, 22" Spoke, and 22" MAXX Mag wheels | Used with 22" MAXX Spoke, 22" Spoke, and 22" MAXX Mag wheels | $112.35 | EA | |
| 7c | 105137 | Handrim Aluminum Anodized 6 Rivet Nut 24"- Used with 24" MAXX Spoke, 24" Spoke, and 24" MAXX Mag wheels | Used with 24" MAXX Spoke, 24" Spoke, and 24" MAXX Mag wheels | $75.23 | EA | |
| 7c | 117104 | Handrim Aluminum Anodized 6 Rivet Nut 24" w/ Micro Grip- Used with 24" MAXX Spoke, 24" Spoke, and 24" MAXX Mag wheels | Used with 24" MAXX Spoke, 24" Spoke, and 24" MAXX Mag wheels | $117.02 | EA | |
| 7d | 200350 | Handrim Hard Anodized 6 Rivet Nut 25"- Used with 25" MAXX Spoke wheels | Used with 25" MAXX Spoke wheels | $82.74 | EA | |
| 7d | 502249 | Handrim Aluminum Hard Anodized 6 Rivet Nut 25" w/ Micro Grip- Used with 25" MAXX Spoke wheels | Used with 25" MAXX Spoke wheels | $112.35 | EA | |
| 7e | 200351 | Handrim Hard Anodized 6 Rivet Nut 26"- Used with 26" MAXX Spoke wheels | Used with 26" MAXX Spoke wheels | $82.74 | EA | |
| 7e | 502250 | Handrim Aluminum Hard Anodized 6 Rivet Nut 26" w/ Micro Grip- Used with 26" MAXX Spoke wheels | Used with 26" MAXX Spoke wheels | $124.53 | EA | |
| 5a, 6a | 502171 | Handrim Hardware Kit, 5 Rivet Nut, EACH- Used with X Core Mag wheels with standard handrim mount option | Used with X Core Mag wheels with standard handrim mount option | $33.10 | EA | |
| 5b, 6b | 113070 | Handrim Hardware Kit, Close Mount, 5 Rivet Nut, EACH- Used with X Core Mag wheels with close mount handrim mount option | Used with X Core Mag wheels with close mount handrim mount option | $27.04 | EA | |
| 8a, 9b, 10a | 118971 | Handrim Hardware Kit, 5 Rivet Nut, Spoke Wheel, EACH- Used with Spoke wheel with standard handrim mount option when Pneumatic w/ Airless Insert tires are NOT present | Used with Spoke wheel with standard handrim mount option when Pneumatic w/ Airless Insert tires are NOT present | $34.65 | EA | |
| 8b, 9b, 10b | 118970 | Handrim Hardware Kit, Close Mount, 5 Rivet Nut, Spoke Wheel, EACH- Used with Spoke wheel with close handrim mount option when Pneumatic w/ Airless Insert tires are NOT present | Used with Spoke wheel with close handrim mount option when Pneumatic w/ Airless Insert tires are NOT present | $37.60 | EA | |
| 4a | 101897 | Handrim Aluminum Anodized 5 Rivet Nut 20"- Used with 20" 5-Spoke X Core Mag wheels | Used with 20" 5-Spoke X Core Mag wheels | $71.70 | EA | |
| 4a | 502242 | Handrim Aluminum Anodized 5 Rivet Nut 20" w/ Micro Grip- Used with 20" 5-Spoke X Core Mag wheels | Used with 20" 5-Spoke X Core Mag wheels | $113.32 | EA | |
| 4b | 101898 | Handrim Aluminum Anodized 5 Rivet Nut 22"- Used with 22" 5-Spoke X Core Mag and 22" Spoke wheels | Used with 22" 5-Spoke X Core Mag and 22" Spoke wheels | $71.70 | EA | |
| 4b | 502243 | Handrim Aluminum Anodized 5 Rivet Nut 22" w/ Micro Grip- Used with 22" 5-Spoke X Core Mag and 22" Spoke wheels | Used with 22" 5-Spoke X Core Mag and 22" Spoke wheels | $113.32 | EA | |
| 4c | 100975 | Handrim Aluminum Anodized 5 Rivet Nut 24"- Used with 24" 5-Spoke X Core Mag and 24" Spoke wheels | Used with 24" 5-Spoke X Core Mag and 24" Spoke wheels | $60.67 | EA | |
| 4c | 502244 | Handrim Aluminum Anodized 5 Rivet Nut 24" w/ Micro Grip- Used with 24" 5-Spoke X Core Mag and 24" Spoke wheels | Used with 24" 5-Spoke X Core Mag and 24" Spoke wheels | $112.35 | EA | |
| 2 | 502170 | Handrim Hardware Kit, Superlight, EACH- Used with Superlight Spoke | Used with Superlight Spoke | $16.55 | EA | |
| 1a | 100754 | Handrim Aluminum Anodized 6 Tab 24"- Used with 24" Superlight Spoke | Used with 24" Superlight Spoke | $88.25 | EA | |
| 1a | 502236 | Handrim Aluminum Anodized 6 Tab 24" w/ Micro Grip- Used with 24" Superlight Spoke | Used with 24" Superlight Spoke | $124.53 | EA | |
| 1b | 101160 | Handrim Superlight Aluminum Anodized 25", 6 Tab- Used with 25" Superlight Spoke | Used with 25" Superlight Spoke | $98.18 | EA | |
| 1b | 502237 | Handrim Aluminum Anodized 6 Tab 25" w/ Micro Grip- Used with 25" Superlight Spoke | Used with 25" Superlight Spoke | $112.35 | EA | |
| 2 | 100536 | M5 x 12 BTN SHCS ZC- Used with Superlight Spoke | Used with Superlight Spoke | $2.21 | ||
| 3 | 100657 | M5 Nylock Nut Blk Zn- Used with Spinergy | Used with Spinergy | $0.56 | EA | |
| 5a | 100629 | Handrim Spacer Alum Ano Riv- Used with X Core Mag (Qty 5 needed) and MAXX Mag (Qty 6 needed) wheels | Used with X Core Mag (Qty 5 needed) and MAXX Mag (Qty 6 needed) wheels | $1.16 | EA | |
| 6a | 100724 | M5 x 55 PH TRS HD M/S ZC- Used with X Core Mag | Used with X Core Mag | $1.10 | ||
| 6c | 103545 | M5 x 50 DIN7985 PH PAN HD M/S BLK ZC- Used with MAXX Mag with standard handrim mount option | Used with MAXX Mag with standard handrim mount option | $4.28 | ||
| 8 | 100653 | Handrim Spacer Spoke- Used with MAXX Spoke wheels | Used with MAXX Spoke wheels | $1.10 | ||
| 9a | 100698 | Handrim Tab- Used with Ki Spoke and MAXX Spoke wheels. Used with Spoke wheel when Pneumatic w/ Airless Insert tires ARE present. Tabs are included / installed with MAXX Spoke wheels. | Used with Ki Spoke and MAXX Spoke wheels. Used with Spoke wheel when Pneumatic w/ Airless Insert tires ARE present. Tabs are included / installed with MAXX Spoke wheels. | $4.17 | ||
| 9b | 116732 | Wheel Tabs, Long, 5 Rivet Nut- Used with Spoke wheel when Pneumatic w/ Airless Insert tires are NOT present | Used with Spoke wheel when Pneumatic w/ Airless Insert tires are NOT present | $4.17 | ||
| 10a | 100654 | M5 x 40 DIN7985 PH Pan HD M/S ZC- Used with MAXX Spoke wheels | Used with MAXX Spoke wheels | $1.66 |
