Catalyst E And 4e

Name: Catalyst E and 4E: Catalyst E Anti-tips
Manufacturer: Ki Mobility

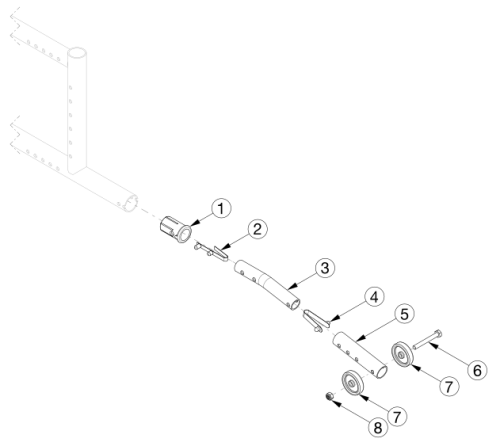

Catalyst E Anti-tips parts diagram
(Click on image to enlarge)

Pos.Part #DescriptionPriceUOMBuy
1 - 2, 3a, 4, 5a, 6 - 8115302Anti Tip Assembly Extra Short, Catalyst E- Used with 11.5" - 12.5" RSH
$33.75
EA
1 - 2, 3b, 4, 5a, 6 - 8115303Anti Tip Assembly Short, Catalyst E- Used with 13" - 14" RSH
$34.11
EA
1 - 2, 3c, 4, 5a, 6 - 8115304Anti Tip Assembly, Medium, Catalyst E- Used with 14.5" - 16" RSH
$34.47
EA
1 - 2, 3d, 4, 5a, 6 - 8115922Anti Tip Assembly, Long, Catalyst E- Used with 16.5" - 18" RSH and 18" and 20" Wheels
$57.08
EA
1 - 2, 3e, 4, 5b, 6 - 8115923Anti Tip Assembly Extra Long, Catalyst E- Used with 18.5" - 20" RSH and 22" and 24" Wheels
$57.08
EA
1111943Anti-Tip Sleeve, CAT E
$0.21
EA
2100533Detent Button
$3.88
EA
3a112552Anti-Tip Tube Upper Short, CAT E- Used with 11.5" - 12.5" RSH
$6.18
EA
3b112553Anti-Tip Tube Upper Medium, CAT E- Used with 13" - 14" RSH
$6.54
EA
3c112554Anti-Tip Tube Upper Long, CAT E- Used with 14.5" - 16" RSH
$6.90
EA
3d000991Anti Tip Tube Upper Short- Used with 16.5" - 18" RSH and 18" and 20" Wheels
$11.82
EA
3e000077Anti Tip Tube Upper Medium- Used with 18.5" - 20" RSH and 22" and 24" Wheels
$20.07
EA
4100534Detent Button Lower
$3.88
EA
5a000992Anti-Tip Extension Short
$8.84
EA
5b000076Anti-Tip Extension Long, Anodized
$14.05
EA
6101826M6 x 50 HHCS Blk Zn
$2.28
EA
7100506Anti-Tip Tube Wheel
$4.14
8100658M6 Nylock Nut Blk Zn
$1.13
EA
