Catalyst E And 4e

Name: Catalyst E and 4E: Catalyst E Pro Elevating Leg Rest
Manufacturer: Ki Mobility

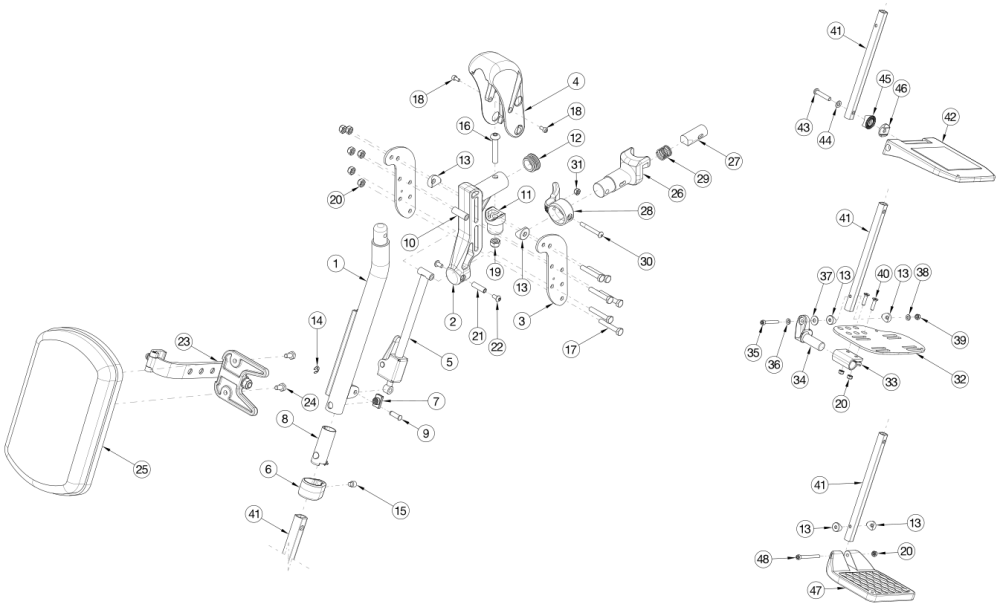

Catalyst E Pro Elevating Leg Rest parts diagram
(Click on image to enlarge)

Pos. Part # Description Price UOM Buy
1a, 1b, 2 - 24, 25b, 26a, 27a, 28a, 29 - 31, 41a, 47a, 48 110563 Pro ELR Assembly 14, Composite Footplate, Short Ext, Classic Release, Pair
$693.85
EA
1a, 1b, 2 - 24, 25a, 26a, 27a, 28a, 29 - 31, 41a, 47a, 48 110564 Pro ELR Assembly 15, Composite Footplate, Short Ext, Classic Release, Pair
$680.46
EA
1a, 1b, 2 - 24, 25a, 26a, 27a, 28a, 29 - 31, 41a, 47b, 48 110565 Pro ELR Assembly 16-17, Composite Footplate, Short Ext, Classic Release, Pair
$680.46
EA
1a, 1b, 2 - 24, 25a, 26a, 27a, 28a, 29 - 31, 41a, 47c, 48 110566 Pro ELR Assembly 18-24, Composite Footplate, Short Ext, Classic Release, Pair
$680.46
EA
1a, 2 - 24, 25b, 26a, 27a, 28a, 29 - 31, 41a, 47a, 48 110547 Pro ELR Assembly 14, Composite Footplate, Short Ext, Classic Release, Right
$346.92
EA
1a, 2 - 24, 25a, 26a, 27a, 28a, 29 - 31, 41a, 47a, 48 110548 Pro ELR Assembly 15, Composite Footplate, Short Ext, Classic Release, Right
$340.23
EA
1a, 2 - 24, 25a, 26a, 27a, 28a, 29 - 31, 41a, 47b, 48 110549 Pro ELR Assembly 16-17, Composite Footplate, Short Ext, Classic Release, Right
$340.23
EA
1a, 2 - 24, 25a, 26a, 27a, 28a, 29 - 31, 41a, 47c, 48 110550 Pro ELR Assembly 18-24, Composite Footplate, Short Ext, Classic Release, Right
$340.23
EA
1b, 2 - 24, 25b, 26a, 27a, 28a, 29 - 31, 41a, 47a, 48 110531 Pro ELR Assembly 14, Composite Footplate, Short Ext, Classic Release, Left
$346.92
EA
1b, 2 - 24, 25a, 26a, 27a, 28a, 29 - 31, 41a, 47a, 48 110532 Pro ELR Assembly 15, Composite Footplate, Short Ext, Classic Release, Left
$340.23
EA
1b, 2 - 24, 25a, 26a, 27a, 28a, 29 - 31, 41a, 47b, 48 110533 Pro ELR Assembly 16-17, Composite Footplate, Short Ext, Classic Release, Left
$340.23
EA
1b, 2 - 24, 25a, 26a, 27a, 28a, 29 - 31, 41a, 47c, 48 110534 Pro ELR Assembly 18-24, Composite Footplate, Short Ext, Classic Release, Left
$340.23
EA
1a, 1b, 2 - 24, 25b, 26a, 27a, 28a, 29 - 31, 41b, 47a, 48 110571 Pro ELR Assembly 14, Composite Footplate, Long Ext, Classic Release, Pair
$693.85
EA
1a, 1b, 2 - 24, 25a, 26a, 27a, 28a, 29 - 31, 41b, 47a, 48 110572 Pro ELR Assembly 15, Composite Footplate, Long Ext, Classic Release, Pair
$680.46
EA
1a, 1b, 2 - 24, 25a, 26a, 27a, 28a, 29 - 31, 41b, 47b, 48 110573 Pro ELR Assembly 16-17, Composite Footplate, Long Ext, Classic Release, Pair
$680.46
EA
1a, 1b, 2 - 24, 25a, 26a, 27a, 28a, 29 - 31, 41b, 47c, 48 110574 Pro ELR Assembly 18-24, Composite Footplate, Long Ext, Classic Release, Pair
$680.46
EA
1a, 2 - 24, 25b, 26a, 27a, 28a, 29 - 31, 41b, 47a, 48 110555 Pro ELR Assembly 14, Composite Footplate, Long Ext, Classic Release, Right
$346.92
EA
1a, 2 - 24, 25a, 26a, 27a, 28a, 29 - 31, 41b, 47a, 48 110556 Pro ELR Assembly 15, Composite Footplate, Long Ext, Classic Release, Right
$340.23
EA
1a, 2 - 24, 25a, 26a, 27a, 28a, 29 - 31, 41b, 47b, 48 110557 Pro ELR Assembly 16-17, Composite Footplate, Long Ext, Classic Release, Right
$340.23
EA
1a, 2 - 24, 25a, 26a, 27a, 28a, 29 - 31, 41b, 47c, 48 110558 Pro ELR Assembly 18-24, Composite Footplate, Long Ext, Classic Release, Right
$340.23
EA
1b, 2 - 24, 25b, 26a, 27a, 28a, 29 - 31, 41b, 47a, 48 110539 Pro ELR Assembly 14, Composite Footplate, Long Ext, Classic Release, Left
$346.92
EA
1b, 2 - 24, 25a, 26a, 27a, 28a, 29 - 31, 41b, 47a, 48 110540 Pro ELR Assembly 15, Composite Footplate, Long Ext, Classic Release, Left
$340.23
EA
1b, 2 - 24, 25a, 26a, 27a, 28a, 29 - 31, 41b, 47b, 48 110541 Pro ELR Assembly 16-17, Composite Footplate, Long Ext, Classic Release, Left
$340.23
EA
1b, 2 - 24, 25a, 26a, 27a, 28a, 29 - 31, 41b, 47c, 48 110542 Pro ELR Assembly 18-24, Composite Footplate, Long Ext, Classic Release, Left
$340.23
EA
1a, 1b, 2 - 24, 25a, 26a, 27a, 28a, 29 - 31, 41a, 42a, 43 - 46 504500 PRO ELR Assembly 15/16 Comp Angle Adj FP Short Ext Classic Release PAIR
$790.26
EA
1a, 1b, 2 - 24, 25a, 26a, 27a, 28a, 29 - 31, 41a, 42b, 43 - 46 504501 PRO ELR Assembly 17/18 Comp Angle Adj FP Short Ext Classic Release PAIR
$790.26
EA
1a, 1b, 2 - 24, 25a, 26a, 27a, 28a, 29 - 31, 41a, 42c, 43 - 46 504502 PRO ELR Assembly 19-22 Comp Angle Adj FP Short Ext Classic Release PAIR
$790.26
EA
1a, 2 - 24, 25a, 26a, 27a, 28a, 29 - 31, 41a, 42a, 43 - 46 504488 PRO ELR Assembly 15/16 Comp Angle Adj FP Short Ext Classic Release Right
$395.12
EA
1a, 2 - 24, 25a, 26a, 27a, 28a, 29 - 31, 41a, 42b, 43 - 46 504489 PRO ELR Assembly 17/18 Comp Angle Adj FP Short Ext Classic Release Right
$395.12
EA
1a, 2 - 24, 25a, 26a, 27a, 28a, 29 - 31, 41a, 42c, 43 - 46 504490 PRO ELR Assembly 19-22 Comp Angle Adj FP Short Ext Classic Release Right
$395.12
EA
1b, 2 - 24, 25a, 26a, 27a, 28a, 29 - 31, 41a, 42a, 43 - 46 504476 PRO ELR Assembly 15/16 Comp Angle Adj FP Short Ext Classic Release Left
$395.12
EA
1b, 2 - 24, 25a, 26a, 27a, 28a, 29 - 31, 41a, 42b, 43 - 46 504477 PRO ELR Assembly 17/18 Comp Angle Adj FP Short Ext Classic Release Left
$395.12
EA
1b, 2 - 24, 25a, 26a, 27a, 28a, 29 - 31, 41a, 42c, 43 - 46 504478 PRO ELR Assembly 19-22 Comp Angle Adj FP Short Ext Classic Release Left
$395.12
EA
1a, 1b, 2 - 24, 25a, 26a, 27a, 28a, 29 - 31, 41b, 42a, 43 - 46 504506 PRO ELR Assembly 15/16 Comp Angle Adj FP Long Ext Classic Release PAIR
$790.26
EA
1a, 1b, 2 - 24, 25a, 26a, 27a, 28a, 29 - 31, 41b, 42b, 43 - 46 504507 PRO ELR Assembly 17/18 Comp Angle Adj FP Long Ext Classic Release PAIR
$790.26
EA
1a, 1b, 2 - 24, 25a, 26a, 27a, 28a, 29 - 31, 41b, 42c, 43 - 46 504508 PRO ELR Assembly 19-22 Comp Angle Adj FP Long Ext Classic Release PAIR
$790.26
EA
1a, 2 - 24, 25a, 26a, 27a, 28a, 29 - 31, 41b, 42a, 43 - 46 504494 PRO ELR Assembly 15/16 Comp Angle Adj FP Long Ext Classic Release Right
$395.12
EA
1a, 2 - 24, 25a, 26a, 27a, 28a, 29 - 31, 41b, 42b, 43 - 46 504495 PRO ELR Assembly 17/18 Comp Angle Adj FP Long Ext Classic Release Right
$395.12
EA
1a, 2 - 24, 25a, 26a, 27a, 28a, 29 - 31, 41b, 42c, 43 - 46 504496 PRO ELR Assembly 19-22 Comp Angle Adj FP Long Ext Classic Release Right
$395.12
EA
1b, 2 - 24, 25a, 26a, 27a, 28a, 29 - 31, 41b, 42a, 43 - 46 504482 PRO ELR Assembly 15/16 Comp Angle Adj FP Long Ext Classic Release Left
$395.12
EA
1b, 2 - 24, 25a, 26a, 27a, 28a, 29 - 31, 41b, 42b, 43 - 46 504483 PRO ELR Assembly 17/18 Comp Angle Adj FP Long Ext Classic Release Left
$395.12
EA
1b, 2 - 24, 25a, 26a, 27a, 28a, 29 - 31, 41b, 42c, 43 - 46 504484 PRO ELR Assembly 19-22 Comp Angle Adj FP Long Ext Classic Release Left
$395.12
EA
1a, 1b, 2 - 24, 25b, 26a, 27a, 28a, 29 - 31, 32a, 32b, 33, 34a, 34b, 35 - 40, 41a 504544 PRO ELR Assembly 14 Angle Adj FP Short Ext Classic Release PAIR
$790.26
EA
1a, 1b, 2 - 24, 25a, 26a, 27a, 28a, 29 - 31, 32a, 32b, 34a, 33, 34b, 35 - 40, 41a 504545 PRO ELR Assembly 15 Angle Adj FP Short Ext Classic Release PAIR
$790.26
EA
1a, 1b, 2 - 24, 25a, 26a, 27a, 28a, 29 - 31, 32c, 32d, 33, 34a, 34b, 35 - 40, 41a 504546 PRO ELR Assembly 16/17 Angle Adj FP Short Ext Classic Release PAIR
$790.26
EA
1a, 1b, 2 - 24, 25a, 26a, 27a, 28a, 29 - 31, 32e, 32f, 33, 34a, 34b, 35 - 40, 41a 504547 PRO ELR Assembly 18-24 Angle Adj FP Short Ext Classic Release PAIR
$790.26
EA
1a, 2 - 24, 25b, 26a, 27a, 28a, 29 - 31, 32b, 33, 34a, 35 - 40, 41a 504528 PRO ELR Assembly 14 Angle Adj FP Short Ext Classic Release Right
$395.12
EA
1a, 2 - 24, 25a, 26a, 27a, 28a, 29 - 31, 32b, 33, 34a, 35 - 40, 41a 504529 PRO ELR Assembly 15 Angle Adj FP Short Ext Classic Release Right
$395.12
EA
1a, 2 - 24, 25a, 26a, 27a, 28a, 29 - 31, 32d, 33, 34a, 35 - 40, 41a 504530 PRO ELR Assembly 16/17 Angle Adj FP Short Ext Classic Release Right
$395.12
EA
1a, 2 - 24, 25a, 26a, 27a, 28a, 29 - 31, 32f, 33, 34a, 35 - 40, 41a 504531 PRO ELR Assembly 18-24 Angle Adj FP Short Ext Classic Release Right
$395.12
EA
1b, 2 - 24, 25b, 26a, 27a, 28a, 29 - 31, 32a, 33, 34b, 35 - 40, 41a 504512 PRO ELR Assembly 14 Angle Adj FP Short Ext Classic Release Left
$395.12
EA
1b, 2 - 24, 25a, 26a, 27a, 28a, 29 - 31, 32a, 33, 34b, 35 - 40, 41a 504513 PRO ELR Assembly 15 Angle Adj FP Short Ext Classic Release Left
$395.12
EA
1b, 2 - 24, 25a, 26a, 27a, 28a, 29 - 31, 32c, 33, 34b, 35 - 40, 41a 504514 PRO ELR Assembly 16/17 Angle Adj FP Short Ext Classic Release Left
$395.12
EA
1b, 2 - 24, 25a, 26a, 27a, 28a, 29 - 31, 32e, 33, 34b, 35 - 40, 41a 504515 PRO ELR Assembly 18-24 Angle Adj FP Short Ext Classic Release Left
$395.12
EA
1a, 1b, 2 - 24, 25b, 26a, 27a, 28a, 29 - 31, 32a, 32b, 33, 34a, 34b, 35 - 40, 41b 504552 PRO ELR Assembly 14 Angle Adj FP Long Ext Classic Release PAIR
$790.26
EA
1a, 1b, 2 - 24, 25a, 26a, 27a, 28a, 29 - 31, 32a, 32b, 34a, 33, 34b, 35 - 40, 41b 504553 PRO ELR Assembly 15 Angle Adj FP Long Ext Classic Release PAIR
$790.26
EA
1a, 1b, 2 - 24, 25a, 26a, 27a, 28a, 29 - 31, 32c, 32d, 33, 34a, 34b, 35 - 40, 41b 504554 PRO ELR Assembly 16/17 Angle Adj FP Long Ext Classic Release PAIR
$790.26
EA
1a, 1b, 2 - 24, 25a, 26a, 27a, 28a, 29 - 31, 32e, 32f, 33, 34a, 34b, 35 - 40, 41b 504555 PRO ELR Assembly 18-24 Angle Adj FP Long Ext Classic Release PAIR
$790.26
EA
1a, 2 - 24, 25b, 26a, 27a, 28a, 29 - 31, 32b, 33, 34a, 35 - 40, 41b 504537 PRO ELR Assembly 14 Angle Adj FP Long Ext Classic Release Right
$395.12
EA
1a, 2 - 24, 25a, 26a, 27a, 28a, 29 - 31, 32b, 33, 34a, 35 - 40, 41b 504538 PRO ELR Assembly 15 Angle Adj FP Long Ext Classic Release Right
$395.12
EA
1a, 2 - 24, 25a, 26a, 27a, 28a, 29 - 31, 32d, 33, 34a, 35 - 40, 41b 504539 PRO ELR Assembly 16/17 Angle Adj FP Long Ext Classic Release Right
$395.12
EA
1a, 2 - 24, 25a, 26a, 27a, 28a, 29 - 31, 32f, 33, 34a, 35 - 40, 41b 504540 PRO ELR Assembly 18-24 Angle Adj FP Long Ext Classic Release Right
$395.12
EA
1b, 2 - 24, 25b, 26a, 27a, 28a, 29 - 31, 32a, 33, 34b, 35 - 40, 41b 504520 PRO ELR Assembly 14 Angle Adj FP Long Ext Classic Release Left
$395.12
EA
1b, 2 - 24, 25a, 26a, 27a, 28a, 29 - 31, 32a, 33, 34b, 35 - 40, 41b 504521 PRO ELR Assembly 15 Angle Adj FP Long Ext Classic Release Left
$395.12
EA
1b, 2 - 24, 25a, 26a, 27a, 28a, 29 - 31, 32c, 33, 34b, 35 - 40, 41b 504522 PRO ELR Assembly 16/17 Angle Adj FP Long Ext Classic Release Left
$395.12
EA
1b, 2 - 24, 25a, 26a, 27a, 28a, 29 - 31, 32e, 33, 34b, 35 - 40, 41b 504523 PRO ELR Assembly 18-24 Angle Adj FP Long Ext Classic Release Left
$395.12
EA
1a, 2 - 22, 26a, 27a, 28a, 29 - 31 506825 PRO ELR Upper Assembly with Classic Hanger Latch Release Right
$212.15
EA
1b, 2 - 22, 26a, 27a, 28a, 29 - 31 506826 PRO ELR Upper Assembly with Classic Hanger Latch Release Left
$212.15
EA
26a, 27a, 28a, 29 - 31 003416 Classic Hanger Latch Assembly, Right
$68.98
EA
26a, 27a, 28a, 29 - 31 003417 Classic Hanger Latch Assembly, Left
$68.98
EA
1a, 2 - 20 003342 Pro ELR Upper Assembly, Right
$142.04
EA
1b, 2 - 20 003343 Pro ELR Upper Assembly, Left
$142.04
EA
4, 18 504473 Cover Kit, Adjustable PRO ELR
$10.23
EA
2, 11, 12, 16, 19 504474 PRO ELR Mount Kit
$38.64
EA
6 - 8, 15 504475 Footrest Adjustment Kit, Adj PRO ELR
$20.46
EA
1a 003114 Pro ELR Tube Weldment, Right
$43.18
EA
1b 003115 Pro ELR Tube Weldment, Left
$43.18
EA
3 003121 Side Plate, Pro ELR
$13.64
EA
4 003122 Cover, Pro ELR
$9.08
EA
6 003190 Clamp, Footrest Extension
$9.08
EA
7 003191 Mandrel, Footrest Extension
$3.41
EA
8 003140 Sleeve, Footrest Extension
$4.54
EA
9 003131 Clevis Pin, 6mm x .64L
$3.41
EA
10 003123 Spacer, .375OD x .242ID x 1.030LG
$3.41
EA
11 000032 Footrest Hanger Pivot Saddle
$5.68
EA
12 100804 Tube End Plug 1"
$1.71
EA
13 000053 Saddle 3/4"
$1.71
14 102822 E-Ring, M6, YZ
$0.58
EA
15 103009 M8 x 12 Dog Pt Set Screw Blk ZN
$3.41
EA
16 100673 M8 x 45 BTN SHCS BLKZC
$1.71
EA
17 102940 M6 x 38 HHCS, 8mm THD, BLK ZN
$2.28
EA
18 102800 M4 x 8mm SHCS Blk Zn
$0.58
EA
19 100659 M8 Nylock Nut Blk Zn
$1.13
EA
20 100658 M6 Nylock Nut Blk Zn
$1.13
EA
21 000073 M5 x 24 Threaded Barrel
$4.09
EA
22 100669 M5 x 10 BTN SHCS BLKZC w/Patch
$1.71
EA
23 003344 Pro ELR Calf Pad Bracket Assembly
$37.49
EA
24 101823 M6 x 20 HHCS Blk Zn
$1.13
EA
25a 101585 Calf Pad
$21.70
EA
25b 101470 Pediatric Calf Pad
$28.41
EA
26a 000031 Hanger Bracket
$24.44
EA
27a 000352 Hanger Release Pin N/A EA Please Call
28a 001158 Lever Swing Away Short
$7.91
EA
29 000119 Hanger Spring
$3.30
EA
30 001374 M5 x 40 BHCS P/THD BLKZC
$2.32
EA
31 100657 M5 Nylock Nut Blk Zn
$0.58
EA
32a 000105 Footplate Angle Adjustable 14-15" Wide CAT/TILT Left (Std ELR Right)
$68.53
EA
32b 000106 Footplate Angle Adjustable 14-15" Wide CAT/TILT Right (Std ELR Left)
$68.53
EA
32c 000107 Footplate Angle Adjustable 16-17" Wide CAT/TILT Left (Std ELR Right)
$68.53
EA
32d 000108 Footplate Angle Adjustable 16-17" Wide CAT/TILT Right (Std ELR Left)
$68.53
EA
32e 000109 Footplate Angle Adjustable 18-24" Wide CAT/TILT Left (Std ELR Right)
$68.53
EA
32f 000110 Footplate Angle Adjustable 18-24" Wide CAT/TILT Right (Std ELR Left)
$68.53
EA
33 100502 Angle Adj Footplate Clamp 2"
$14.31
EA
34a 000047 Footplate Angle Adjustable Casting 3/4 Right
$21.74
EA
34b 000049 Footplate Angle Adjustable Casting 3/4" Left
$21.74
EA
35 101472 M6 x 45 SHCS BLK ZC
$1.71
EA
36 101455 M6 Belleville Washer (.252 x .551 x .050)
$1.71
EA
37 000428 Wear Washer
$2.84
EA
38 100746 M6 Flat Washer Blk Zn
$1.71
EA
39 101456 M6 Ovl Top L/N ZC
$1.71
EA
40 100662 M6 x 25 FSHCS BLK ZC
$1.71
41a 003150 Pro ELR Extension Tube Short
$13.64
EA
41b 003151 Pro ELR Extension Tube Long
$13.64
EA
42a 003173 Composite Angle Adjustable Footplate Small 15-16" Wide
$159.43
EA
42b 003174 Composite Angle Adjustable Footplate Medium 17-18" Wide
$161.99
EA
42c 003175 Composite Angle Adjustable Footplate Large 19-24" Wide
$164.54
EA
43 - 46 003185 Extension Tube Hardware Assembly with Ext Tube Plug for Composite Angle Adjustable Footplate- The Extension Tube is not shown in the diagram.
$17.05
EA
47a 100537 Footplate Composite 14-15" Wide CAT/TILT
$39.77
EA
47b 100540 Footplate Composite 16-17" Wide CAT/TILT
$39.77
EA
47c 100542 Footplate Composite 18-24" Wide CAT/TILT
$39.77
EA
48.0 101849 M6 x 65 SHCS Blk Zn
$2.28
EA
