Loading...Catalyst E and 4E

Catalyst E And 4e

Name: Catalyst E and 4E: Catalyst E Back Upholstery - Tension Adjustable
Manufacturer: Ki Mobility

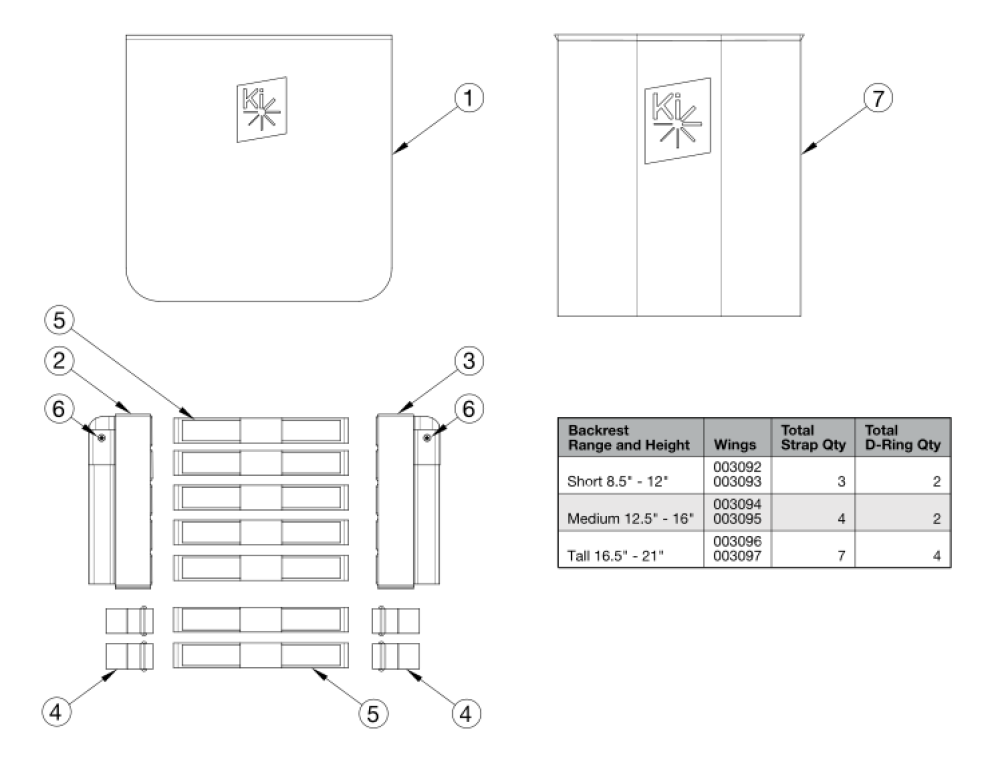

Catalyst E Back Upholstery - Tension Adjustable parts diagram
(Click on image to enlarge)

Assemblies contain the cover, amount of straps and d-rings used for the tallest height listed in the assembly. Attaching hardware is not included with the back upholstery assemblies.
Pos.Part #DescriptionPriceUOMBuy
1a, 2a, 3a, 4, 5a116000Back Upholstery Assembly Tension Adjustable with Standard Cover 14W, 8.5" - 12"
$418.68
EA
1b, 2b, 3b, 4, 5a116001Back Upholstery Assembly Tension Adjustable with Standard Cover 14W, 12.5"-16"
$546.72
EA
1c, 2c, 3c, 4, 5a116002Back Upholstery Assembly Tension Adjustable with Standard Cover 14W, 16.5" - 21"
$572.38
EA
1d, 2a, 3a, 4, 5b116003Back Upholstery Assembly Tension Adjustable with Standard Cover 16W, 8.5" - 12"
$418.68
EA
1e, 2b, 3b, 4, 5b116004Back Upholstery Assembly Tension Adjustable with Standard Cover 16W, 12.5" - 16"
$546.72
EA
1f, 2c, 3c, 4, 5b116005Back Upholstery Assembly Tension Adjustable with Standard Cover 16W, 16.5" - 21"
$572.38
EA
1g, 2a, 3a, 4, 5c116006Back Upholstery Assembly Tension Adjustable with Standard Cover 18W, 8.5" - 12"
$418.68
EA
1h, 2b, 3b, 4, 5c116007Back Upholstery Assembly Tension Adjustable with Standard Cover 18W, 12.5" - 16"
$546.72
EA
1i, 2c, 3c, 4, 5c116008Back Upholstery Assembly Tension Adjustable with Standard Cover 18W, 16.5" - 21"
$572.38
EA
1j, 2a, 3a, 4, 5d116009Back Upholstery Assembly Tension Adjustable with Standard Cover 20W, 8.5" - 12"
$418.68
EA
1k, 2b, 3b, 4, 5d116010Back Upholstery Assembly Tension Adjustable with Standard Cover 20W, 12.5" - 16"
$546.72
EA
1l, 2c, 3c, 4, 5d116011Back Upholstery Assembly Tension Adjustable with Standard Cover 20W, 16.5" - 21"
$572.38
EA
1m, 2b, 3b, 4, 5e116012Back Upholstery Assembly Tension Adjustable with Standard Cover 22W, 12.5" - 16"
$546.72
EA
1n, 2c, 3c, 4, 5e116013Back Upholstery Assembly Tension Adjustable with Standard Cover 22W, 16.5" - 21"
$572.38
EA
2a, 3a, 4, 5a, 7a116014Back Upholstery Assembly Tension Adjustable with Air Mesh Cover 14W, 8.5" - 12"
$358.31
EA
2b, 3b, 4, 5a, 7b116015Back Upholstery Assembly Tension Adjustable with Air Mesh Cover 14W, 12.5" - 16"
$380.37
EA
2c, 3c, 4, 5a, 7c116016Back Upholstery Assembly Tension Adjustable with Air Mesh Cover 14W, 16.5" - 21"
$572.38
EA
2a, 3a, 4, 5b, 7d116017Back Upholstery Assembly Tension Adjustable with Air Mesh Cover 16W, 8.5" - 12"
$369.35
EA
2b, 3b, 4, 5b, 7e116018Back Upholstery Assembly Tension Adjustable with Air Mesh Cover 16W, 12.5" - 16"
$391.41
EA
2c, 3c, 4, 5b, 7f116019Back Upholstery Assembly Tension Adjustable with Air Mesh Cover 16W, 16.5" - 21"
$402.44
EA
2a, 3a, 4, 5c, 7g116020Back Upholstery Assembly Tension Adjustable with Air Mesh Cover 18W, 8.5" - 12"
$380.37
EA
2b, 3b, 4, 5c, 7h116021Back Upholstery Assembly Tension Adjustable with Air Mesh Cover 18W, 12.5" - 16"
$402.44
EA
2c, 3c, 4, 5c, 7i116022Back Upholstery Assembly Tension Adjustable with Air Mesh Cover 18W, 16.5" - 21"
$402.44
EA
2a, 3a, 4, 5d, 7j116023Back Upholstery Assembly Tension Adjustable with Air Mesh Cover 20W, 8.5" - 12"
$394.72
EA
2b, 3b, 4, 5d, 7k116024Back Upholstery Assembly Tension Adjustable with Air Mesh Cover 20W, 12.5" - 16"
$416.78
EA
2c, 3c, 4, 5d, 7l116025Back Upholstery Assembly Tension Adjustable with Air Mesh Cover 20W, 16.5" - 21"
$416.78
EA
2b, 3b, 4, 5e, 7m116026Back Upholstery Assembly Tension Adjustable with Air Mesh Cover 22W, 12.5" - 16"
$433.32
EA
2c, 3c, 4, 5e, 7n116027Back Upholstery Assembly Tension Adjustable with Air Mesh Cover 22W, 16.5" - 21"
$433.32
EA
1a002497Backrest Cover 13" Rigid / 14" Cat x 9-12"
$223.73
EA
1b002499Backrest Cover 13" Rigid / 14" Cat x 13-16"
$223.73
EA
1c003043Backrest Cover 13" Rigid - 14" CAT/LFT x 17-20"
$245.79
EA
1d002505Backrest Cover 15" Rigid / 16" Cat x 9-12"
$234.76
EA
1e002507Backrest Cover 15" Rigid / 16" Cat x 13-16"
$234.76
EA
1f003045Backrest Cover 15" Rigid - 16" CAT/LFT x 17-20"
$245.79
EA
1g003048Backrest Cover 17" Rigid / 18" Cat x 9-12"
$245.79
EA
1h003050Backrest Cover 17" Rigid / 18" Cat x 13-16"
$245.79
EA
1i003052Backrest Cover 17" Rigid - 18" CAT/LFT x 17-20"
$245.79
EA
1j003060Backrest Cover 19" Rigid / 20" Cat x 9-12"
$256.83
EA
1k003062Backrest Cover 19" Rigid / 20" Cat x 13-16"
$256.83
EA
1l003064Backrest Cover 19" Rigid - 20" CAT/LFT x 17-20"
$256.83
EA
1m003072Backrest Cover 21" Rigid / 22" Cat x 13-16"
$273.38
EA
1n003074Backrest Cover 21" Rigid - 22" CAT/LFT x 17-20"
$273.38
EA
2a003093Tension Adjustable Upholstery Wing 3.5" Height Left
$55.16
EA
2b003095Tension Adjustable Upholstery Wing 5.5" Height Left
$55.16
EA
2c003097Tension Adjustable Upholstery Wing 9.5" Height Left
$66.19
EA
3a003092Tension Adjustable Upholstery Wing 3.5" Height Right
$55.16
EA
3b003094Tension Adjustable Upholstery Wing 5.5" Height Right
$55.16
EA
3c003096Tension Adjustable Upholstery Wing 9.5" Height Right
$66.19
EA
4.0100973Back Upholstery D-Ring
$11.04
5a003487Back Upholstery Strap 15.3"- Used on 14" chair widths
$13.24
EA
5b002533Back Upholstery Strap 19.3"- Used on 16" chair widths
$13.24
EA
5c002535Back Upholstery Strap 23.3"- Used on 18" chair widths
$13.24
EA
5d002537Back Upholstery Strap 27.3"- Used on 20" chair widths
$16.55
EA
5e002539Back Upholstery Strap 31.3"- Used on 22" chair widths
$16.55
EA
6.0100734M5 x 16 PHMS ZC
$1.66
EA
7a003896Air Mesh Backrest Cover 14C 13R Width x 9-12" Height
$304.06
EA
7b003898Air Mesh Backrest Cover 14C 13R Width x 13-16" Height
$304.06
EA
7c003913Air Mesh Backrest Cover 14C 13R Width x 17-20" Height
$326.12
EA
7d003904Air Mesh Backrest Cover 16C 15R Width x 9-12" Height
$315.08
EA
7e003906Air Mesh Backrest Cover 16C 15R Width x 13-16" Height
$315.08
EA
7f003915Air Mesh Backrest Cover 16C 15R Width x 17-20" Height
$326.12
EA
7g003918Air Mesh Backrest Cover 18C 17R Width x 9-12" Height
$326.12
EA
7h003920Air Mesh Backrest Cover 18C 17R Width x 13-16" Height
$326.12
EA
7i003922Air Mesh Backrest Cover 18C 17R Width x 17-20" Height
$326.12
EA
7j003930Air Mesh Backrest Cover 20C 19R Wide x 9-12" Height
$337.16
EA
7k003932Air Mesh Backrest Cover 20C 19R Width x 13-16" Height
$337.16
EA
7l003934Air Mesh Backrest Cover 20C 19R Width x 17-20" Height
$337.16
EA
7m003942Air Mesh Backrest Cover 22C 21R Width x 13-16" Height
$353.70
EA
7n003944Air Mesh Backrest Cover 22C 21R Width x 17-20" Height
$353.70
EA
