Catalyst E And 4e
Name: Catalyst E and 4E: Catalyst E Caster Housing - Standard
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility

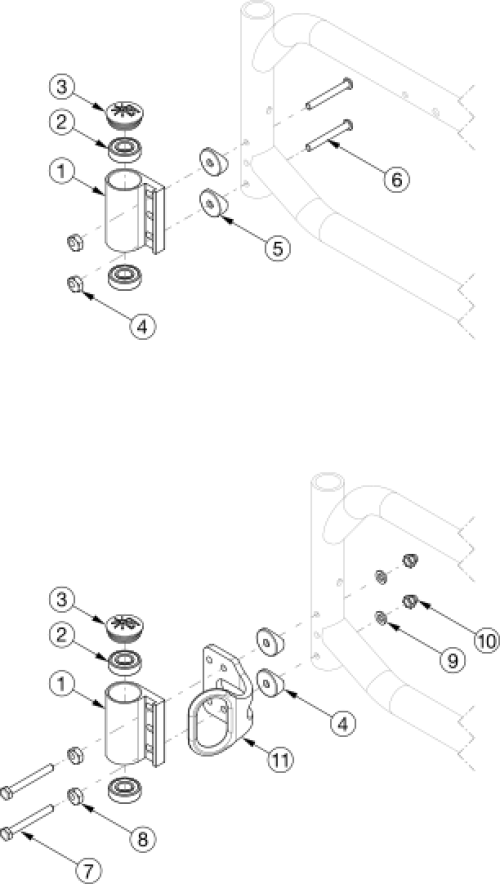

Part Picture
(Click on image to enlarge)
Reference order form for detailed front seat height matrix.
Please Note: The shown orientation of the caster housing above is in the "Forward" position.
Attachments:
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 1a, 2 - 6 | 501172 | Standard Caster Housing Assembly, Black, Left, No Transit, Standard Weight Capacity, Catalyst |
$52.96
|
EA |
|
|
| 1b, 2 - 6 | 501173 | Standard Caster Housing Assembly, Black, Right, No Transit, Standard Weight Capacity, Catalyst |
$52.96
|
EA |
|
|
| 1a, 1b, 2 - 6 | 501174 | Standard Caster Housing Assembly, Black, PAIR, No Transit, Standard Weight Capacity, Catalyst |
$105.93
|
EA |
|
|
| 1a, 2, 3, 5, 7 - 10 | 501175 | Standard Caster Housing Assembly, Black, Left, Transit, Standard Weight Capacity, Catalyst- Transit Bracket not included in assembly | Transit Bracket not included in assembly |
$58.08
|
EA |
|
| 1b, 2, 3, 5, 7 - 10 | 501176 | Standard Caster Housing Assembly, Black, Right, Transit, Standard Weight Capacity, Catalyst- Transit Bracket not included in assembly | Transit Bracket not included in assembly |
$58.08
|
EA |
|
| 1a, 1b, 2, 3, 5, 7 - 10 | 501177 | Standard Caster Housing Assembly, Black, PAIR, Transit, Standard Weight Capacity, Catalyst- Transit Bracket not included in assembly | Transit Bracket not included in assembly |
$116.18
|
EA |
|
| 1a, 2 | 100526 | Caster Housing Left, Black, CAT/Liberty |
$43.00
|
EA |
|
|
| 1b, 2 | 100527 | Caster Housing Right, Black, CAT/Liberty |
$43.00
|
EA |
|
|
| 3 | 102005 | Ki Caster Housing Cap |
$1.34
|
EA |
|
|
| 4, 6 | 112171 | Standard Caster Housing Attaching Hardware for Swing Away Frame, No Transit, Standard Weight Capacity, PAIR |
$14.77
|
EA |
|
|
| 5 | 000056 | Saddle 1 1/8" |
$1.81
|
|
||
| 7 - 10 | 112956 | Standard Caster Housing Attaching Hardware for Swing Away Frame, Transit, Standard Weight Capacity, PAIR |
$26.25
|
EA |
|
|
| 7 | 100677 | M6 x 60 CLS10.9 DIN931 HHCS ZC |
$1.81
|
EA |
|
|
| 8 | 100510 | Eccentric Washer |
$1.88
|
|
||
| 9 | 100746 | M6 Flat Washer Blk Zn |
$1.81
|
EA |
|
|
| 10 | 100558 | M6 Nyl Ins Domed Cap L/N Zc |
$1.19
|
EA |
|
