Catalyst E And 4e

Name: Catalyst E and 4E: Straight No Push Handle And Caregiver Height Adjustable Stroller Handles
Manufacturer: Ki Mobility

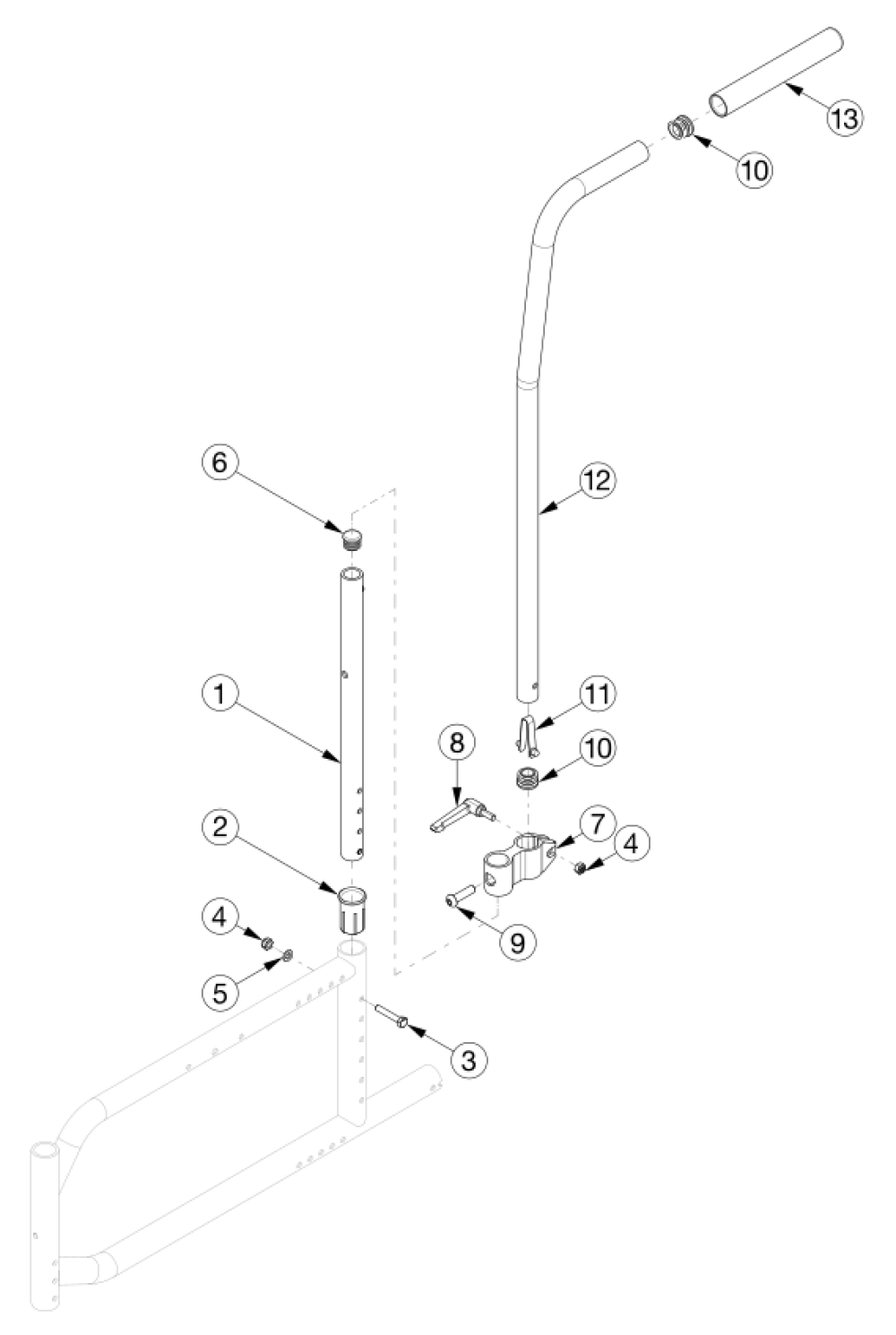

Straight No Push Handle And Caregiver Height Adjustable Stroller Handles parts diagram
(Click on image to enlarge)

Pos. Part # Description Price UOM Buy
1a, 6 115853 Straight NPH Back Assembly - Short
$10.92
EA
1b, 6 115854 Straight NPH Back Assembly - Medium
$12.21
EA
1c, 6 115855 Straight NPH Back Assembly - Tall
$13.39
EA
2 - 4 115852 Backrest Mount Hardware
$5.16
EA
4, 7 - 13 115837 Caregiver HA Stroller Assembly (Clamp Assy + Stroller Handle)
$76.80
EA
10 - 13 115838 Caregiver HA Stroller Handle
$23.39
EA
4, 7 - 9 115839 Caregiver HA Stroller - Clamp + Hardware
$50.10
EA
2 111965 Frame Sleeve, Angle Adjustable Backrest
$0.82
EA
3 100860 M6 x 35 HHCS P/THD ZC
$1.71
EA
4 100658 M6 Nylock Nut Blk Zn
$1.13
EA
5 100746 M6 Flat Washer Blk Zn
$1.71
EA
6 100638 Tube End Plug 3/4"
$2.28
EA
7 112423 Caregiver Height Adjustable Stroller Handle Clamp
$11.07
EA
8 102734 Stroller Handle Clamp Handle (16mm) Rigid
$37.64
EA
9 103551 BHCS, M8 x 1.25 x 30 BLZ
$2.20
10 100803 Tube End Plug 7/8"
$1.71
EA
11 100534 Detent Button Lower
$3.88
EA
