Catalyst E And 4e
Name: Catalyst E and 4E: Catalyst E Hangers - 60 Degree Extension Tube
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility

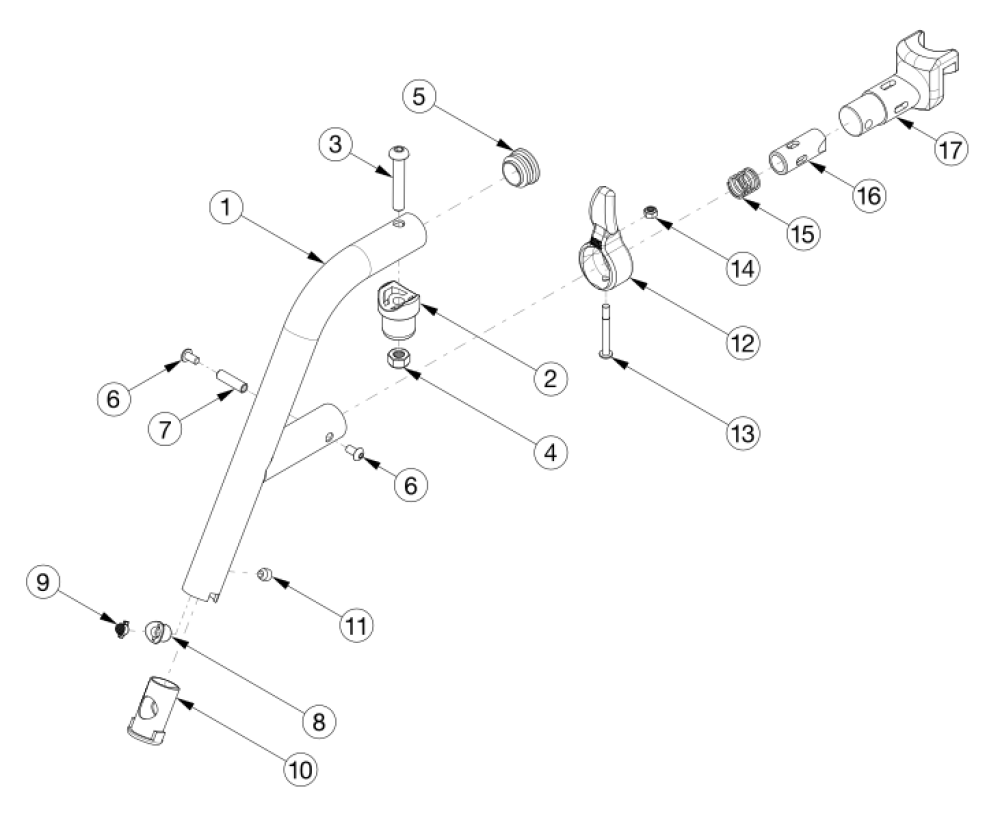

Part Picture
(Click on image to enlarge)
Color CodesIf changing degree of hanger, new extension tubes may be needed
Attachments:
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 1 - 17 | 115921_ _ _ | 60° Cleat Hanger Assembly, 4-Way-In-Line, Catalyst E | N/A | EA | Please Call | |
| 1 - 17 | 115916_ _ _ | 60° Cleat Hanger Assembly, 4-Way - Out Left, Catalyst E _ _ _ | N/A | EA | Please Call | |
| 1 - 17 | 115917_ _ _ | 60° Cleat Hanger Assembly, 4-Way - Out Right, Catalyst E _ _ _ | N/A | EA | Please Call | |
| 12 - 17 | 003225 | Assembled 4-Way In Line Hanger Release | $39.77 | EA | ||
| 12 - 17 | 003225INST | Assembled 4-Way In Line Hanger Release with Instruction | $39.77 | EA | ||
| 12 - 17 | 003643 | Assembled 4-Way Out Hanger Release, Left | $39.77 | EA | ||
| 12 - 17 | 003643INST | Assembled 4-Way Out Hanger Release, Left with Instruction | $39.77 | EA | ||
| 12 - 17 | 003642 | Assembled 4-Way Out Hanger Release, Right | $39.77 | EA | ||
| 12 - 17 | 003642INST | Assembled 4-Way Out Hanger Release, Right with Instruction | $39.77 | EA | ||
| 8 - 11 | 115845 | Cleat Hanger Adjustment Hardware | $12.31 | EA | ||
| 2 | 000032 | Footrest Hanger Pivot Saddle | $5.68 | EA | ||
| 3 | 100673 | M8 x 45 BTN SHCS BLKZC | $1.71 | EA | ||
| 4 | 100659 | M8 Nylock Nut Blk Zn | $1.13 | EA | ||
| 5 | 100804 | Tube End Plug 1" | $1.71 | EA | ||
| 6 | 100669 | M5 x 10 BTN SHCS BLKZC w/Patch | $1.71 | EA | ||
| 7 | 000073 | M5 x 24 Threaded Barrel | $4.09 | EA | ||
| 8 | 111949 | Hanger Cleat Housing | $5.92 | EA | ||
| 9 | 111950 | Hanger Cleat | $3.14 | EA | ||
| 10 | 111948 | Cleat Hanger Sleeve | $1.18 | EA | ||
| 11 | 114457 | M8 x 8 x 1.25 Cup Point Set Screw w/ Patch | $2.06 | EA | ||
| 12 | 003228 | Hanger Latch, 4-Way, Lever | $3.41 | EA | ||
| 13 | 001374 | M5 x 40 BHCS P/THD BLKZC | $2.32 | EA | ||
| 14 | 100657 | M5 Nylock Nut Blk Zn | $0.58 | EA | ||
| 15 | 000119 | Hanger Spring | $3.30 | EA | ||
| 16 | 003227 | Hanger Latch, 4-Way, Pin | $21.59 | EA | ||
| 17 | 003226 | Hanger Latch, 4-Way, Bracket | $24.44 | EA |
