Name: Catalyst E and 4E: Catalyst E Side Frame Assembly
Manufacturer: Ki Mobility

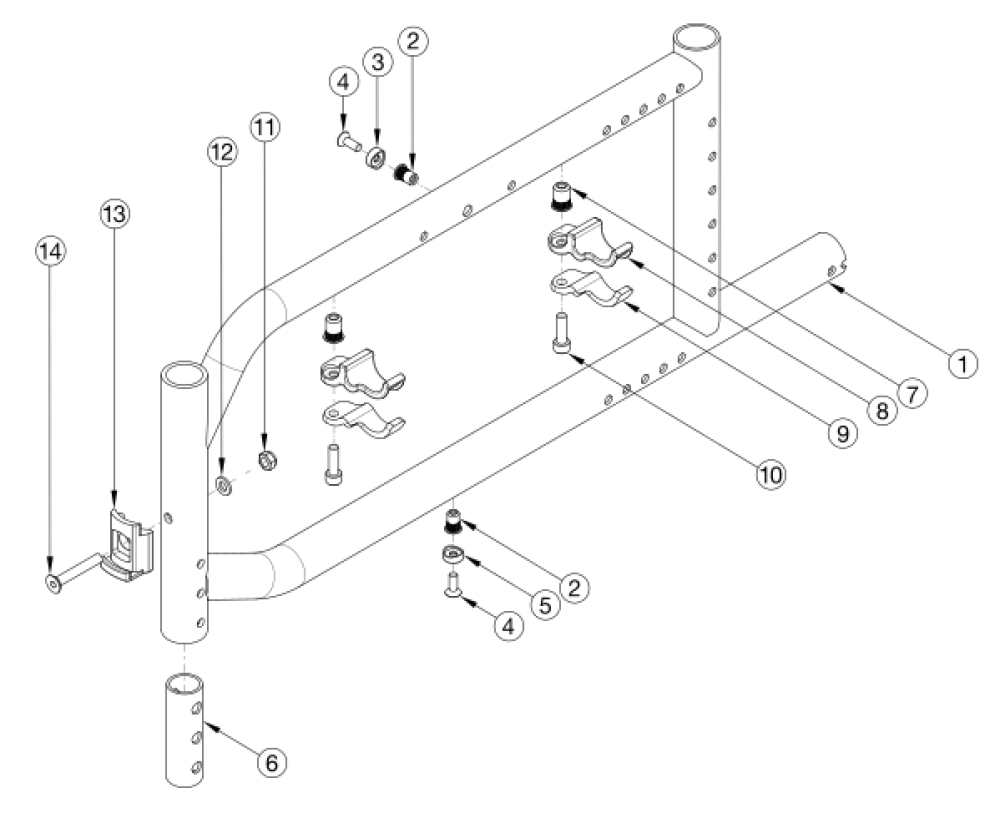

Catalyst E Side Frame Assembly parts diagram
(Click on image to enlarge)

Color CodesFrame assemblies are based on Seat Depth. If switching to new Seat Depth, new Height Adjustable T-Arms or Height Adjustable Flip Back T-Arms may be needed.
Pos. Part # Description Price UOM Buy
1a, 2, 6, 7 115925_ _ _ Frame Assembly, Left, 15/16, Catalyst E N/A EA Please Call
1b, 2, 6, 7 115926_ _ _ Frame Assembly, Left, 17/18, Catalyst E N/A EA Please Call
1c, 2, 6, 7 115927_ _ _ Frame Assembly, Left, 19/20, Catalyst E N/A EA Please Call
1a, 2, 6, 7 115928_ _ _ Frame Assembly, Right, 15/16, Catalyst E N/A EA Please Call
1b, 2, 6, 7 115929_ _ _ Frame Assembly, Right, 17/18, Catalyst E N/A EA Please Call
1c, 2, 6, 7 115930_ _ _ Frame Assembly, Right, 19/20, Catalyst E N/A EA Please Call
3 - 5, 8 - 12 115924 Seat Hook and Support Hardware Kit, Catalyst E- For 1 side
$19.25
EA
3 111940 Cross Brace Top Clamp Retainer Saddle, Catalyst E
$0.28
EA
4 102937 M5 X 14 FHCS, Blk Zn
$1.81
5 111941 Cross Brace Bottom Clamp Retainer Saddle, Catalyst E
$0.28
EA
6 111942 Front Frame Insert, Catalyst E
$2.55
EA
7 100661 M6 X 1.0 Rivnut
$1.02
EA
8 111937 Seat Hook
$0.93
EA
9 111938 Seat Hook Support, Steel
$2.72
EA
11 100658 M6 Nylock Nut Blk Zn
$1.19
EA
12 100746 M6 Flat Washer Blk Zn
$1.81
EA
13 000336 Latch Block
$42.84
EA
14 101819 M6 x 40 FHCS Blk Zn
$1.19
EA
15 111943 Anti-Tip Sleeve, Catalyst E
$0.22
EA
