Projection Handrim

Name: Catalyst 4: Projection Handrim
Manufacturer: Ki Mobility

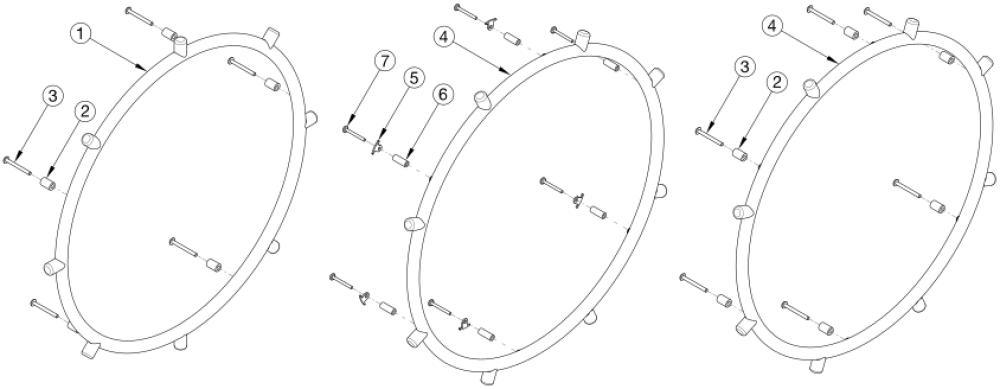

Projection Handrim parts diagram
(Click on image to enlarge)

Pos.Part #DescriptionPriceBuy
1200546Handrim Projection, Vertical, 5 Rivet Nut 24"- Used on 24" 5-Spoke Mag
$194.92
2100629Handrim Spacer Alum Ano Riv- Used with X Core Mag wheels
$1.05
3100724M5 x 55 PH TRS HD M/S ZC- Used with X Core Mag wheels
$1.00
4a100569Handrim Projection, Vertical, 6 Rivet Nut 22"- Used on 22" for Ki Spoke
$194.92
4b200547Handrim Projection, Vertical, 6 Rivet Nut 24"- Used on 24" for Ki Spoke
$194.92
4c200548Handrim Projection, Vertical, 6 Rivet Nut 25"- Used on 25" for Ki Spoke
$194.92
4d200549Handrim Projection, Vertical, 6 Rivet Nut 26"- Used on 26" for Ki Spoke
$194.92
5100698Handrim Tab- Used with Ki Spoke wheels
$3.78
6100653Handrim Spacer Spoke- Used with Ki Spoke wheels
$1.00
7100654M5 x 40 DIN7985 PH Pan HD M/S ZC- Used with Ki Spoke wheels
$1.50
2, 3502171Handrim Hardware Kit, 5 Rivet Nut, EACH- Used with X Core Mag wheels
$30.00
5 - 7502168Handrim Hardware Kit, 6 Rivet Nut, EACH- Used with Ki Spoke wheels
$35.00
