Catalyst 4
Name: Catalyst 4: Catalyst Swing Away Armrest
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility

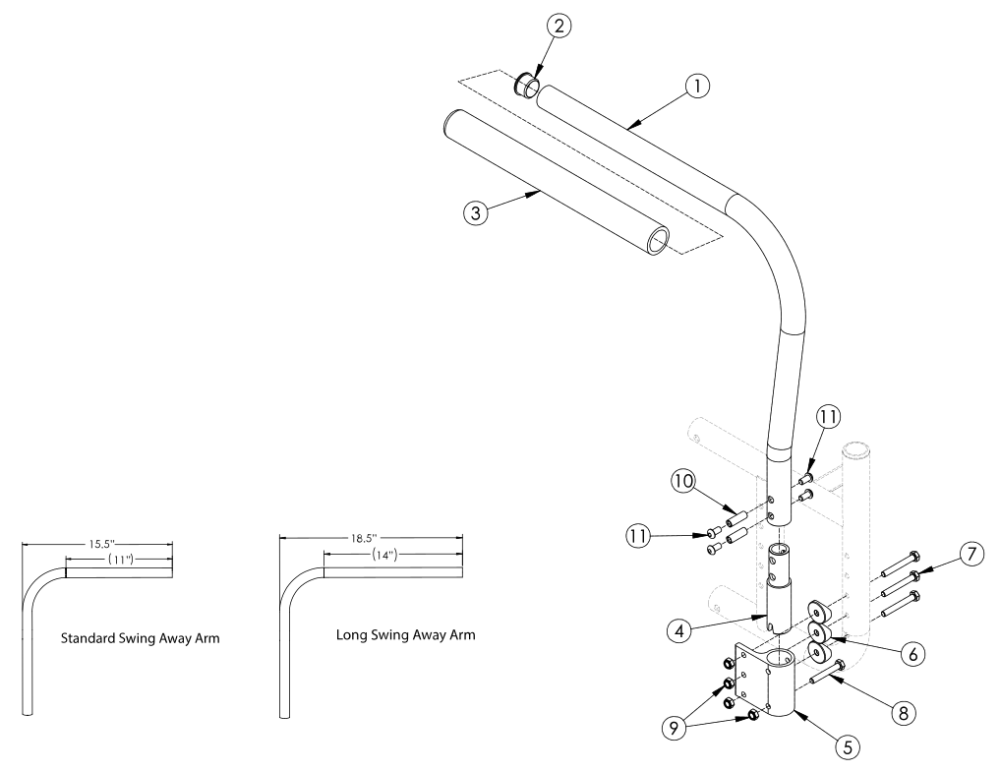

Part Picture
(Click on image to enlarge)
For call out #7 - please reference the "Catalyst Axle Plate" parts manual pages to ensure the proper hardware is selected for the chair configuration.
If retrofitting, receivers are needed.
Attachments:
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 1a, 2 - 4, 10, 11 | 500500 | Tubular Swing Away Armrest Assembly Left CAT | $132.11 | EA | ||
| 1b, 2 - 4, 10, 11 | 500501 | Tubular Swing Away Armrest Assembly Right CAT | $132.11 | EA | ||
| 1a, 1b, 2 - 4, 10, 11 | 500588 | Tubular Swing Away Armrest Assembly Pair CAT | $264.20 | EA | ||
| 1c, 2 - 4, 10, 11 | 501480 | Tubular Long Swing Away Armrest Assembly Left CAT- Check Invoice for length when replacing armrests | Check Invoice for length when replacing armrests | $132.11 | EA | |
| 1d, 2 - 4, 10, 11 | 501481 | Tubular Long Swing Away Armrest Assembly Right CAT- Check Invoice for length when replacing armrests | Check Invoice for length when replacing armrests | $132.11 | EA | |
| 1c, 1d, 2 - 4, 10, 11 | 501482 | Tubular Long Swing Away Armrest Assembly Pair CAT- Check Invoice for length when replacing armrests | Check Invoice for length when replacing armrests | $264.20 | EA | |
| 5, 6, 7, 8, 9 | 502283 | Tubular Swing Away Armrest Receiver Kit CAT | $59.87 | EA | ||
| 1a, 2 - 11 | 502284 | Tubular Swing Away Armrest w/ Receiver Kit Left CAT | $191.49 | EA | ||
| 1b, 2 - 11 | 502285 | Tubular Swing Away Armrest w/ Receiver Kit Right CAT | $191.49 | EA | ||
| 1a, 1b, 2 - 11 | 502286 | Tubular Swing Away Armrest w/ Receiver Kit PAIR CAT | $382.96 | EA | ||
| 1c, 2 - 11 | 502287 | Tubular Long Swing Away Armrest w/ Receiver Kit Left CAT- Check Invoice for length when replacing armrests | Check Invoice for length when replacing armrests | $187.61 | EA | |
| 1d, 2 - 11 | 502288 | Tubular Long Swing Away Armrest w/ Receiver Kit Right CAT- Check Invoice for length when replacing armrests | Check Invoice for length when replacing armrests | $187.61 | EA | |
| 1c, 1d, 2 - 11 | 502289 | Tubular Long Swing Away Armrest w/ Receiver Kit PAIR CAT- Check Invoice for length when replacing armrests | Check Invoice for length when replacing armrests | $375.24 | EA | |
| 2 | 100804 | Tube End Plug 1" | $1.66 | EA | ||
| 4 | 000267 | Armrest Swing Away Lower CAT | $35.87 | EA | ||
| 5 | 000044 | Armrest Swing Away Receiver Cat | $46.11 | EA | ||
| 6 | 000056 | Saddle 1 1/8" | $1.66 | |||
| 7 | 100674 | M6 x 45 CLS10.9 DIN931 HHCS ZC | $1.66 | |||
| 8 | 100681 | M6 x 40 CLS8.8 DIN931 HHCS ZC | $1.66 | EA | ||
| 9 | 100658 | M6 Nylock Nut Blk Zn | $1.10 | EA | ||
| 10 | 000065 | M6 x 23.68 Threaded Barrel | $4.34 | EA | ||
| 11 | 100667 | M6 x 12 BTN SHCS BLKZC w/Patch | $1.66 | EA |
