Catalyst 4

Name: Catalyst 4: Catalyst Tension Adjustable Back Upholstery - Extra Tall Backposts
Manufacturer: Ki Mobility

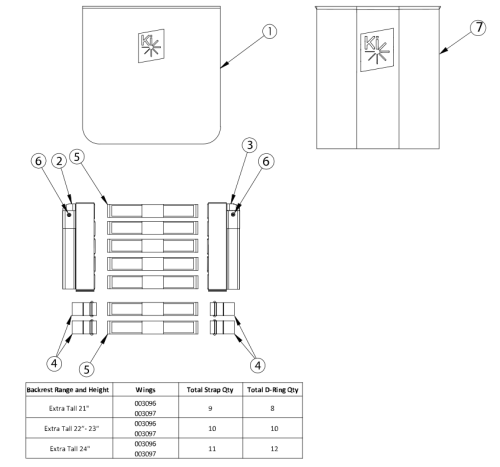

Catalyst Tension Adjustable Back Upholstery - Extra Tall Backposts parts diagram

(Click on image to enlarge)

Pos.	Part #	Description	Remarks	Price	UOM
1a, 2 - 4, 5a	506794	Back Upholstery Assembly Tension Adjustable with Standard Cover 16W, 21" - 24", Extra Tall Backposts		$630.99	EA
1b, 2 - 4, 5b	506795	Back Upholstery Assembly Tension Adjustable with Standard Cover 17W, 21" - 24", Extra Tall Backposts		$586.86	EA
1c, 2 - 4, 5c	506796	Back Upholstery Assembly Tension Adjustable with Standard Cover 18W, 21" - 24", Extra Tall Backposts		$586.86	EA
1d, 2 - 4, 5d	506797	Back Upholstery Assembly Tension Adjustable with Standard Cover 19W, 21" - 24", Extra Tall Backposts		$623.27	EA
1e, 2 - 4, 5e	506798	Back Upholstery Assembly Tension Adjustable with Standard Cover 20W, 21" - 24", Extra Tall Backposts		$623.27	EA
1f, 2 - 4, 5f	506799	Back Upholstery Assembly Tension Adjustable with Standard Cover 21W, 21" - 24", Extra Tall Backposts		$623.27	EA
1g, 2 - 4, 5g	506800	Back Upholstery Assembly Tension Adjustable with Standard Cover 22W, 21" - 24", Extra Tall Backposts		$639.82	EA
2 - 4, 5a, 7a	108028	Back Upholstery Assembly Tension Adjustable with Air Mesh Cover 16W, 21" - 24", Extra Tall Backposts		$471.33	EA
2 - 4, 5b, 7b	108029	Back Upholstery Assembly Tension Adjustable with Air Mesh Cover 17W, 21" - 24", Extra Tall Backposts		$425.87	EA
2 - 4, 5c, 7c	108030	Back Upholstery Assembly Tension Adjustable with Air Mesh Cover 18W, 21" - 24", Extra Tall Backposts		$425.87	EA
2 - 4, 5d, 7d	108031	Back Upholstery Assembly Tension Adjustable with Air Mesh Cover 19W, 21" - 24", Extra Tall Backposts		$429.28	EA
2 - 4, 5e, 7e	108032	Back Upholstery Assembly Tension Adjustable with Air Mesh Cover 20W, 21" - 24", Extra Tall Backposts		$429.28	EA
2 - 4, 5f, 7f	108033	Back Upholstery Assembly Tension Adjustable with Air Mesh Cover 21W, 21" - 24", Extra Tall Backposts		$429.28	EA
2 - 4, 5g, 7g	108034	Back Upholstery Assembly Tension Adjustable with Air Mesh Cover 22W, 21" - 24", Extra Tall Backposts		$446.32	EA
1a	003237	Backrest Cover 16" CAT/Liberty x 21-24"		$227.25	EA
1b	003047	Backrest Cover 17" CAT/Liberty x 21-24"		$181.81	EA
1c	003053	Backrest Cover 18" CAT/Liberty x 21-24"		$181.81	EA
1d	003059	Backrest Cover 19" CAT/Liberty x 21-24"		$181.81	EA
1e	003065	Backrest Cover 20" CAT/Liberty x 21-24"		$181.81	EA
1f	003071	Backrest Cover 21" CAT/Liberty x 21-24"		$181.81	EA
1g	003075	Backrest Cover 22" CAT/Liberty x 21-24"		$198.84	EA
2	003097	Tension Adjustable Upholstery Wing 9.5" Height Left		$68.18	EA
3	003096	Tension Adjustable Upholstery Wing 9.5" Height Right		$68.18	EA
4	100973	Back Upholstery D-Ring		$11.37
5a	002533	Back Upholstery Strap 19.3"- Used on 16" chair widths	Used on 16" chair widths	$13.64	EA
5b	002534	Back Upholstery Strap 21.3"- Used on 17" chair widths	Used on 17" chair widths	$13.64	EA
5c	002535	Back Upholstery Strap 23.3"- Used on 18" chair widths	Used on 18" chair widths	$13.64	EA
5d	002536	Back Upholstery Strap 25.3"- Used on 19" chair widths	Used on 19" chair widths	$17.05	EA
5e	002537	Back Upholstery Strap 27.3"- Used on 20" chair widths	Used on 20" chair widths	$17.05	EA
5f	002538	Back Upholstery Strap 29.3"- Used on 21" chair widths	Used on 21" chair widths	$17.05	EA
5g	002539	Back Upholstery Strap 31.3"- Used on 22" chair widths	Used on 22" chair widths	$17.05	EA
6	100734	M5 x 16 PHMS ZC		$1.71	EA
7a	003908	Air Mesh Backrest Cover 16C 15R Width x 21-24" Height		$309.98	EA
7b	003917	Air Mesh Backrest Cover 17C 16R Width x 21-24" Height		$264.53	EA
7c	003923	Air Mesh Backrest Cover 18C 17R Width x 21-24" Height		$264.53	EA
7d	003929	Air Mesh Backrest Cover 19C 18R Width x 21-24" Height		$264.53	EA
7e	003935	Air Mesh Backrest Cover 20C 19R Width x 21-24" Height		$264.53	EA
7f	003941	Air Mesh Backrest Cover 21C 20R Width x 21-24" Height		$264.53	EA
7g	003945	Air Mesh Backrest Cover 22C 21R Width x 21-24" Height		$281.58	EA
