Hanger Extension Tubes

Name: Catalyst 4: Hanger Extension Tubes
Manufacturer: Ki Mobility

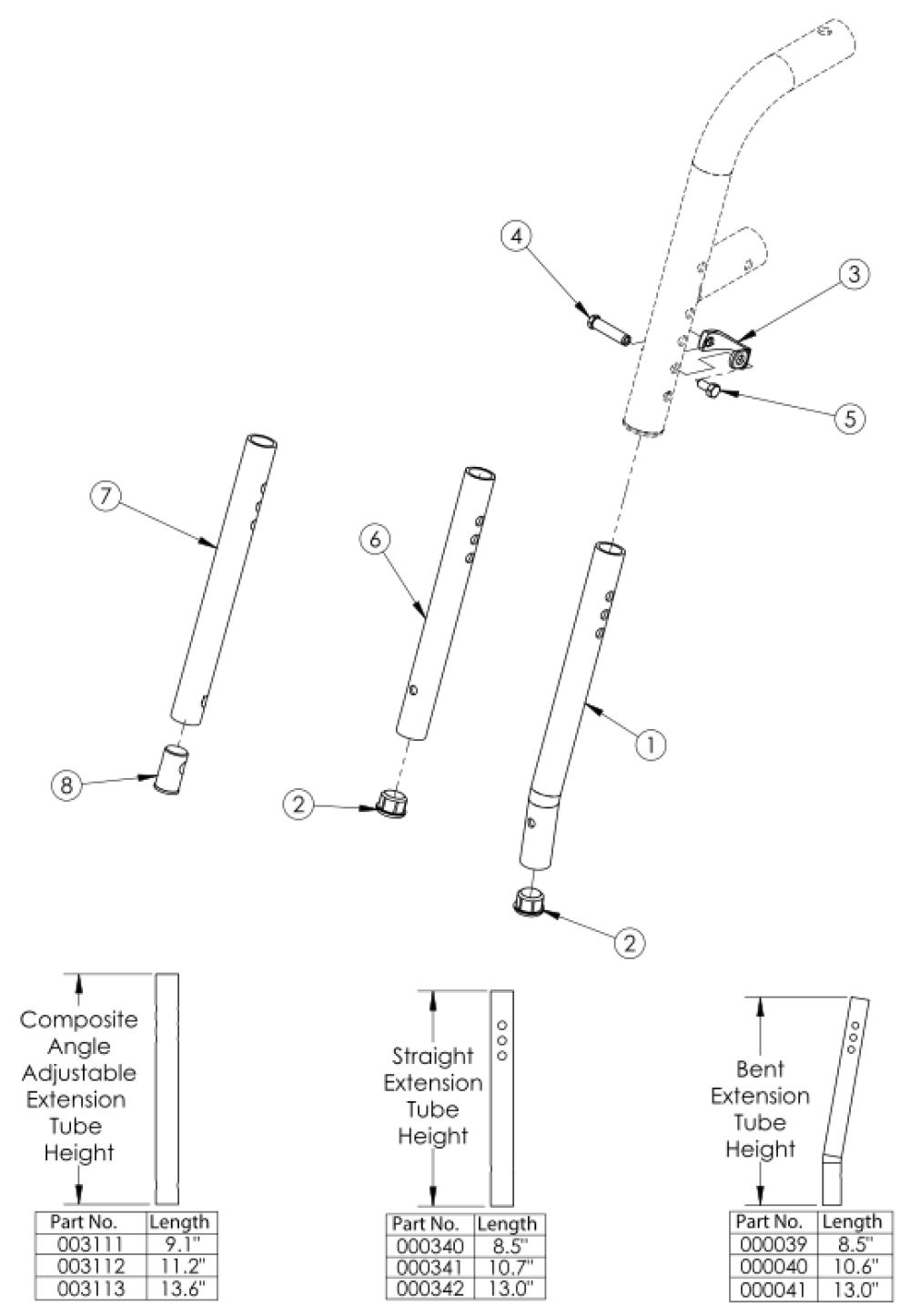

Hanger Extension Tubes parts diagram
(Click on image to enlarge)

Pos.Part #DescriptionPriceBuy
1a000039Hanger Extension Tube Bent Short
$14.83
1b000040Hanger Extension Tube Bent Medium
$14.83
1c000041Hanger Extension Tube Bent Long
$14.83
2100638Tube End Plug 3/4"
$2.00
3000988Fastener Retainer
$3.75
4000987Threaded Fastener
$3.60
5200427M5 x 10 CLS8.8 HHCS ZC w/Patch DIN933
$0.50
6a000340Hanger Extension Tube Straight Short
$14.82
6b000341Hanger Extension Tube Straight Medium
$14.82
6c000342Hanger Extension Tube Straight Long
$14.82
7a003111Hanger Extension Tube Composite Angle Adjustable Short
$17.50
7b003112Hanger Extension Tube Composite Angle Adjustable Medium
$17.50
7c003113Hanger Extension Tube Composite Angle Adjustable Long
$17.50
8003161Footplate Plug for Composite Angle Adjustable Footplate Extension Tube
$8.10
1a, 2502217Short Hanger Extension Tube Bent w/ Plug
$17.33
1b, 2502218Medium Hanger Extension Tube Bent w/ Plug
$17.33
1c, 2502219Long Hanger Extension Tube Bent w/ Plug
$17.33
1a, 2 - 5502223Short Hanger Extension Tube Bent w/ Plug and Fasteners
$40.00
1b, 2 - 5502224Medium Hanger Extension Tube Bent w/ Plug and Fasteners
$40.00
1c, 2 - 5502225Long Hanger Extension Tube Bent w/ Plug and Fasteners
$40.00
6a, 2502220Short Hanger Extension Tube Straight w/ Plug
$17.32
6b, 2502221Medium Hanger Extension Tube Straight w/ Plug
$17.32
6c, 2502222Long Hanger Extension Tube Straight w/ Plug
$17.32
6a, 2 - 5502226Short Hanger Extension Tube Straight w/ Plug and Fasteners
$40.00
6b, 2 - 5502227Medium Hanger Extension Tube Straight w/ Plug and Fasteners
$40.00
6c, 2 - 5502228Long Hanger Extension Tube Straight w/ Plug and Fasteners
$40.00
7a, 8503031Short Composite Angle Adjustable Extension Tube w/ Plug
$23.00
7b, 8503032Medium Composite Angle Adjustable Extension Tube w/ Plug
$23.00
7c, 8503033Long Composite Angle Adjustable Extension Tube w/ Plug
$23.00
7a, 3 - 5, 8503034Short Composite Angle Adjustable Extension Tube w/ Plug and Fasteners
$53.00
7b, 3 - 5, 8503035Medium Composite Angle Adjustable Extension Tube w/ Plug and Fasteners
$53.00
7c, 3 - 5, 8503036Long Composite Angle Adjustable Extension Tube w/ Plug and Fasteners
$53.00
