Catalyst 4

Name: Catalyst 4: Canada Catalyst 4 Transit
Manufacturer: Ki Mobility

(Click on image to enlarge)

Notice: Chair configuration review required prior to parts being quoted or ordered. Only available in Canada on Catalyst 4. Not available on Catalyst 4C Not available with 250 lb or 350 lb weight capacity Requires Adjustable Axle Plate and Adjustable Axle Plate Rear Frames

Attachments:

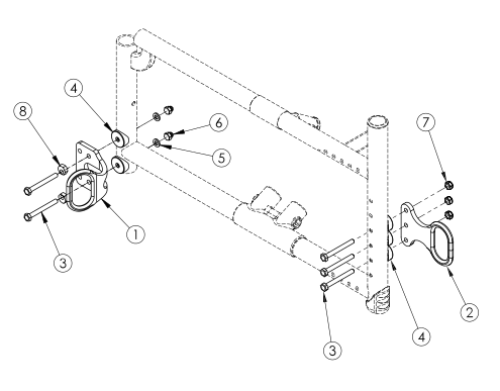

Canada Catalyst 4 Transit

Pos.	Part #	Description	Remarks	Price	UOM
3a	101826	M6 x 50 HHCS Blk Zn- Use quantity 2 if only Transit is present; Use quantity 1 if Transit and Anti-Tip bracket are present	Use quantity 2 if only Transit is present; Use quantity 1 if Transit and Anti-Tip bracket are present	$2.28	EA
3b	100676	M6 x 55 CLS10.9 DIN931 HHCS ZC- Use quantity 2 if Transit and Anti-Tip bracket are present. Use quantity 1 if Swing Away Arm bracket, Transit, and Anti-Tip bracket are present	Use quantity 2 if Transit and Anti-Tip bracket are present. Use quantity 1 if Swing Away Arm bracket, Transit, and Anti-Tip bracket are present	$1.71	EA
3c	100677	M6 x 60 CLS10.9 DIN931 HHCS ZC- Used to attach Front Transit Bracket. Use quantity 2 if Transit, Anti-Tip bracket and Swing Away Arm bracket are present	Used to attach Front Transit Bracket. Use quantity 2 if Transit, Anti-Tip bracket and Swing Away Arm bracket are present	$1.71	EA
4	000056	Saddle 1 1/8"		$1.71
5	100746	M6 Flat Washer Blk Zn		$1.71	EA
6	100558	M6 NYL INS Domed Cap L/N ZC		$1.13	EA
7	100658	M6 Nylock Nut Blk Zn		$1.13	EA
8	100510	Eccentric Washer		$1.78
