Discontinued Catalyst 4 Height Adjustable Flip Back Armrest

Name: Catalyst 4: Discontinued Catalyst 4 Height Adjustable Flip Back Armrest
Manufacturer: Ki Mobility

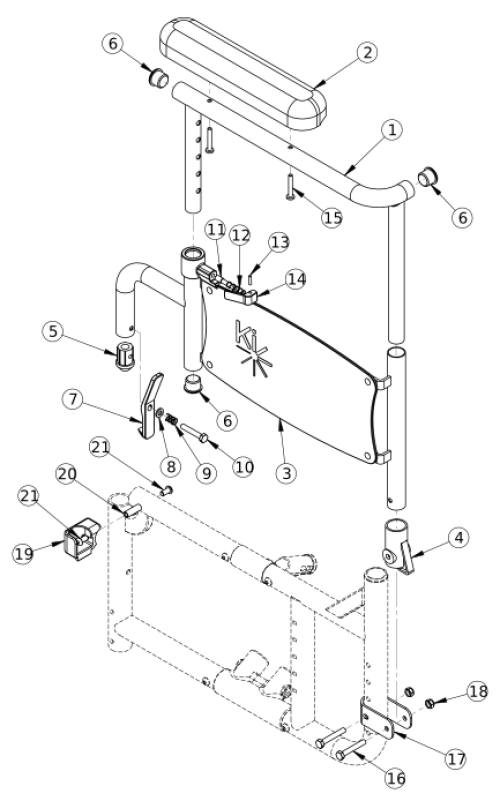

Discontinued Catalyst 4 Height Adjustable Flip Back Armrest parts diagram
(Click on image to enlarge)

Pos.Part #DescriptionPriceBuy
1a000382LArmrest Flip Back Height Adj Frame Upper Desk LeftN/APlease Call
1b000382RArmrest Flip Back Height Adj Frame Upper Desk RightN/APlease Call
1c000383LArmrest Flip Back Height Adj Frame Upper Full LeftN/APlease Call
1d000383RArmrest Flip Back Height Adj Frame Upper Full RightN/APlease Call
2a100500Arm Pad FullN/APlease Call
2b100501Arm Pad DeskN/APlease Call
3a, 11 - 14000431-LArmrest Flip Back Height Adj Frame Lower LeftN/APlease Call
3b, 11 - 14000431-RArmrest Flip Back Height Adj Frame Lower RightN/APlease Call
4100691Armrest Flip Back Rear Pivot BracketN/APlease Call
5100690Armrest Flip Back Front Tube PlugN/APlease Call
6100803Tube End Plug 7/8"N/APlease Call
7100689Armrest Flip Back Release LeverN/APlease Call
8102072Washer Nylon .234 ID x .406 OD x .062 ThickN/APlease Call
9100693Compression Spring 0.34" OD x 0.70 LGN/APlease Call
10100860M6 x 35 CLS8.8 DIN931 HHCS P/THD ZCN/APlease Call
11000099Height Adj Armrest Lever PinN/APlease Call
12000134Height Adj Armrest Lever SpringN/APlease Call
13200257Dowel Pin 1/8 x 1/2N/APlease Call
14000098Height Adj Armrest LeverN/APlease Call
15100696M5 x 30mm PPH CapscrewN/APlease Call
16100681M6 x 40 CLS8.8 DIN931 HHCS ZCN/APlease Call
17000080Armrest Flip Back Bracket CAT 4N/APlease Call
18100658M6 Nylock Nut Blk ZnN/APlease Call
19a000081Armrest Flip Back Receiver Left CATN/APlease Call
19b000082Armrest Flip Back Receiver Right CATN/APlease Call
20000065M6 x 23.68 Threaded BarrelN/APlease Call
21100667M6 x 12 BTN SHCS BLKZC w/PatchN/APlease Call
11 - 14500711Arm Height Adj Flip Back Lever AssemblyN/APlease Call
1b, 2b, 6, 15503152Armrest Assembly Height Adj Flip Back Upper Desk RightN/APlease Call
1a, 2b, 6, 15503153Armrest Assembly Height Adj Flip Back Upper Desk LeftN/APlease Call
1d, 2a, 6, 15503154Armrest Assembly Height Adj Flip Back Upper Full RightN/APlease Call
1c, 2a, 6, 15503155Armrest Assembly Height Adj Flip Back Upper Full LeftN/APlease Call
1a, 2b, 3a, 4 - 15100193Armrest Assembly Height Adj Flip Back Complete Desk LeftN/APlease Call
1b, 2b, 3b, 4 - 15100192Armrest Assembly Height Adj Flip Back Complete Desk RightN/APlease Call
1c, 2a, 3a, 4 - 15100191Armrest Assembly Height Adj Flip Back Complete Full LeftN/APlease Call
1d, 2a, 3b, 4 - 15100190Armrest Assembly Height Adj Flip Back Complete Full RightN/APlease Call
3a, 4 - 14503150Armrest Assembly Height Adj Flip Back Lower LeftN/APlease Call
3b, 4 - 14503151Armrest Assembly Height Adj Flip Back Lower RightN/APlease Call
16 - 18502263Armrest Height Adjustable Flip Back Bracket Kit CAT4N/APlease Call
19a, 20, 21502265Armrest Height Adjustable Flip Back Receiver Kit Left CATN/APlease Call
19b, 20, 21502266Armrest Height Adjustable Flip Back Receiver Kit Right CATN/APlease Call
1a, 2b, 3a, 4 - 18, 19a, 20, 21502267Armrest Height Adjustable Flip Back w/ Receiver and Bracket Kit Left Desk CAT4N/APlease Call
1b, 2b, 3b, 4 - 18, 19b, 20, 21502268Armrest Height Adjustable Flip Back w/ Receiver and Bracket Kit Right Desk CAT4N/APlease Call
1c, 2a, 3a, 4 - 18, 19a, 20, 21502269Armrest Height Adjustable Flip Back w/ Receiver and Bracket Kit Left Full CAT4N/APlease Call
1d, 2a, 3b, 4 - 18, 19b. 20, 21502270Armrest Height Adjustable Flip Back w/ Receiver and Bracket Kit Right Full CAT4N/APlease Call
1a, 1b, 2b, 3a, 3b, 4 - 21502275Armrest Height Adjustable Flip Back w/ Receiver and Bracket Kit PAIR Desk CAT4N/APlease Call
1c, 1d, 2a, 3a, 3b, 4 - 21502276Armrest Height Adjustable Flip Back w/ Receiver and Bracket Kit PAIR Full CAT4N/APlease Call
