Catalyst 4 Replacement Parts by Ki Mobility

Name: Catalyst 4: Catalyst / Focus / Flip Luggage Carrier
Manufacturer: Ki Mobility

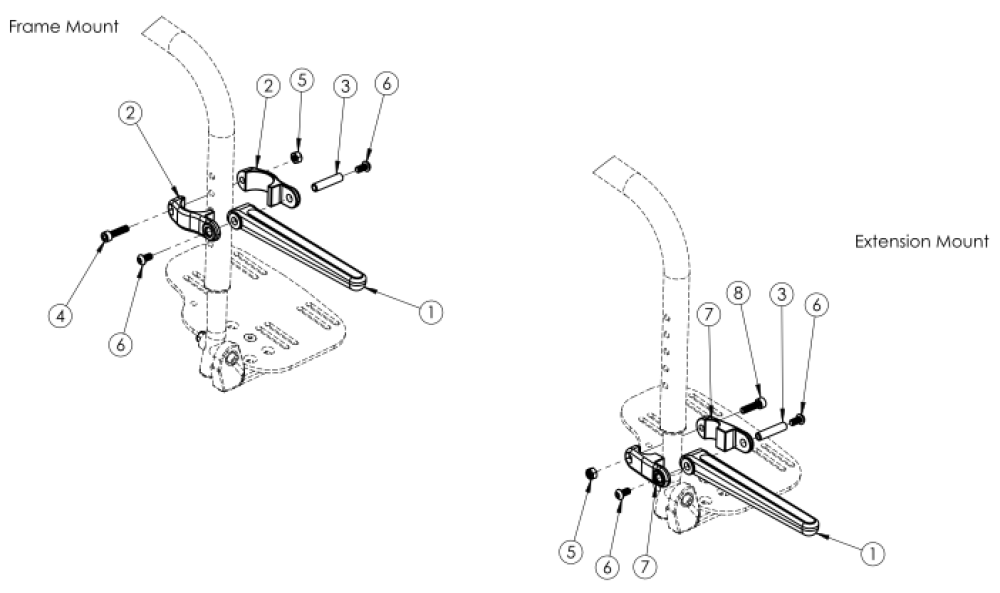

(Click on image to enlarge)

Attachments:

Pos.	Part #	Description	Remarks	Price	UOM
1 - 8	504464	Luggage Carrier Kit, Catalyst/Tilt		$92.42	EA
1	003430	Luggage Carrier Fork Assembly		$33.59
2	003410	Luggage Carrier Clamp 1.00- Used to mount Luggage Carrier to the Hangers	Used to mount Luggage Carrier to the Hangers	$9.59
3	003413	Luggage Carrier Barrel		$9.59
4	100780	M6 x 25 SHCS ZC- Only used when Luggage Carrier is mounted to the Hangers	Only used when Luggage Carrier is mounted to the Hangers	$2.41	EA
5	100658	M6 Nylock Nut Blk Zn		$1.19	EA
6	100667	M6 x 12 BTN SHCS BLKZC w/Patch		$1.81	EA
7	003409	Luggage Carrier Clamp .75- Used to mount Luggage Carrier to the Extension Tubes	Used to mount Luggage Carrier to the Extension Tubes	$9.59
8	101845	M6 x 22 SHCS Blk Zn- Only used when Luggage Carrier is mounted to the Extension Tubes	Only used when Luggage Carrier is mounted to the Extension Tubes	$1.81
