Catalyst 4

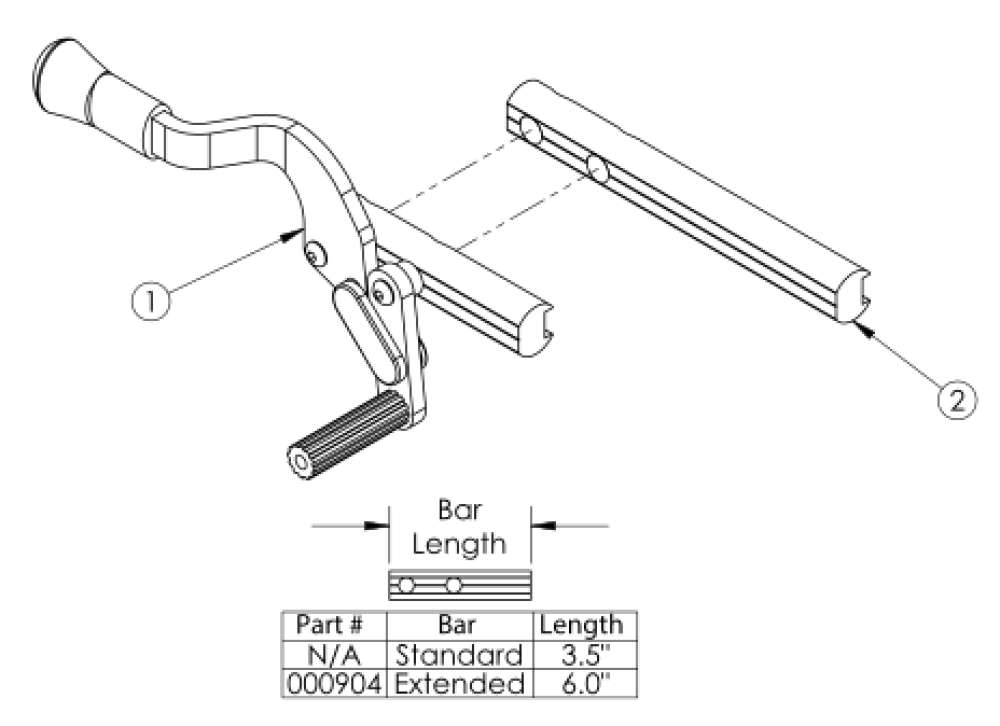

Name: Catalyst 4: Push To Lock Flush Mount Wheel Lock
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility
Part Picture
(Click on image to enlarge)
Ethos: if adding Wheel Locks to a chair, new Front ISO Towers and Wheel Lock Clamps are required
Attachments:
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 1a, 1b | 124895 | Wheel Lock Toggle Push Flush PAIR |
$80.40
|
EA |
|
|
| 1a | 503828 | Wheel Lock Toggle Push Flush, Left w/ Instruction- This kit contains 100648 wheel lock along with an instruction for reversing the wheel lock. This wheel lock comes assembled with the standard wheel lock bar. | This kit contains 100648 wheel lock along with an instruction for reversing the wheel lock. This wheel lock comes assembled with the standard wheel lock bar. |
$44.56
|
EA |
|
| 1b | 503829 | Wheel Lock Toggle Push Flush, Right w/ Instruction- This kit contains 100649 wheel lock along with an instruction for reversing the wheel lock. This wheel lock comes assembled with the standard wheel lock bar. | This kit contains 100649 wheel lock along with an instruction for reversing the wheel lock. This wheel lock comes assembled with the standard wheel lock bar. |
$44.56
|
EA |
|
| 2 | 000904 | Extended Wheel Lock Bar- Used for custom configurations | Used for custom configurations |
$31.84
|
EA |
|
