Loading... Catalyst 4

70 Degree Extension Mount Hanger

Name: Catalyst 4: 70 Degree Extension Mount Hanger
Manufacturer: Ki Mobility

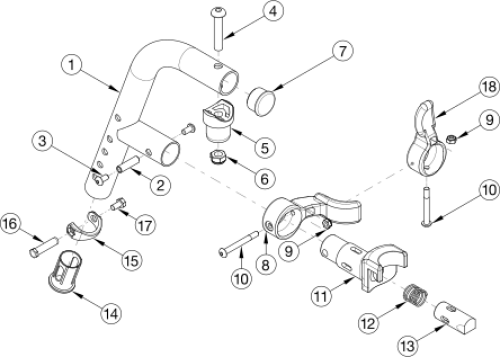

70 Degree Extension Mount Hanger parts diagram
(Click on image to enlarge)

Pos. Part # Description Price Buy
1, 7, 14 100180GGM Hanger Tube Assm 70 Ext Mt Graphite Gray - Hanger Tube Assm 70 Extension Mount _ _ _
$80.26
1, 7, 14 100180PNK Hanger Tube Assm 70 Ext Mt Bubblegum Pink - Hanger Tube Assm 70 Extension Mount _ _ _
$80.26
1, 7, 14 100180SAP Hanger Tube Assm 70 Ext Mt Sapphire - Hanger Tube Assm 70 Extension Mount _ _ _
$80.26
1, 7, 14 100180CGM Hanger Tube Assm 70 Ext Mt Charcoal Gray - Hanger Tube Assm 70 Extension Mount _ _ _
$80.26
1, 7, 14 100180SIL Hanger Tube Assm 70 Ext Mt Silver - Hanger Tube Assm 70 Extension Mount _ _ _
$80.26
1, 7, 14 100180TEA Hanger Tube Assm 70 Ext Mt Teal - Hanger Tube Assm 70 Extension Mount _ _ _
$80.26
1, 7, 14 100180EBL Hanger Tube Assm 70 Ext Mt Electric Blue - Hanger Tube Assm 70 Extension Mount _ _ _
$80.26
1, 7, 14 100180BRO Hanger Tube Assm 70 Ext Mt Bright Orange - Hanger Tube Assm 70 Extension Mount _ _ _
$80.26
1, 7, 14 100180FUS Hanger Tube Assm 70 Ext Mt Fuchsia - Hanger Tube Assm 70 Extension Mount _ _ _
$80.26
1, 7, 14 100180IBM Hanger Tube Assm 70 Ext Mt Iridescent Burgundy - Hanger Tube Assm 70 Extension Mount _ _ _
$80.26
1, 7, 14 100180FLM Hanger Tube Assm 70 Ext Mt Graphic Image Transfer - Hanger Tube Assm 70 Extension Mount _ _ _
$122.80
1, 7, 14 100180EGM Hanger Tube Assm 70 Ext Mt Emerald Green - Hanger Tube Assm 70 Extension Mount _ _ _
$80.26
1, 7, 14 100180SKY Hanger Tube Assm 70 Ext Mt Blue Skies - Hanger Tube Assm 70 Extension Mount _ _ _
$80.26
1, 7, 14 100180SWM Hanger Tube Assm 70 Ext Mt Smooth White - Hanger Tube Assm 70 Extension Mount _ _ _
$80.26
1, 7, 14 100180RRM Hanger Tube Assm 70 Ext Mt Retro Red - Hanger Tube Assm 70 Extension Mount _ _ _
$80.26
1, 7, 14 100180RBM Hanger Tube Assm 70 Ext Mt Royal Blue - Hanger Tube Assm 70 Extension Mount _ _ _
$80.26
1, 7, 14 100180GRY Hanger Tube Assm 70 Ext Mt Slate Gray - Hanger Tube Assm 70 Extension Mount _ _ _
$80.26
1, 7, 14 100180ORG Hanger Tube Assm 70 Ext Mt Orange - Hanger Tube Assm 70 Extension Mount _ _ _
$80.26
1, 7, 14 100180BLK Hanger Tube Assm 70 Ext Mt Black - Hanger Tube Assm 70 Extension Mount _ _ _
$80.26
1, 7, 14 100180RED Hanger Tube Assm 70 Ext Mt Candy Red - Hanger Tube Assm 70 Extension Mount _ _ _
$80.26
1, 7, 14 100180BLU Hanger Tube Assm 70 Ext Mt Blue - Hanger Tube Assm 70 Extension Mount _ _ _
$80.26
1, 7, 14 100180SBM Hanger Tube Assm 70 Ext Mt Shadow Black - Hanger Tube Assm 70 Extension Mount _ _ _
$80.26
1, 7, 14 100180BUR Hanger Tube Assm 70 Ext Mt Burgundy - Hanger Tube Assm 70 Extension Mount _ _ _
$80.26
1, 7, 14 100180COP Hanger Tube Assm 70 Ext Mt Copper - Hanger Tube Assm 70 Extension Mount _ _ _
$80.26
1, 7, 14 100180YLW Hanger Tube Assm 70 Ext Mt Yellow - Hanger Tube Assm 70 Extension Mount _ _ _
$80.26
1, 7, 14 100180INM Hanger Tube Assm 70 Ext Mt Iridescent Navy - Hanger Tube Assm 70 Extension Mount _ _ _
$80.26
1, 7, 14 100180BRG Hanger Tube Assm 70 Ext Mt Bright Green - Hanger Tube Assm 70 Extension Mount _ _ _
$80.26
1, 7, 14 100180GSM Hanger Tube Assm 70 Ext Mt Granny Smith - Hanger Tube Assm 70 Extension Mount _ _ _
$80.26
1, 7, 14 100180PUR Hanger Tube Assm 70 Ext Mt Candy Purple - Hanger Tube Assm 70 Extension Mount _ _ _
$80.26
1, 7, 14 100180GRN Hanger Tube Assm 70 Ext Mt Forest Green - Hanger Tube Assm 70 Extension Mount _ _ _
$80.26
1, 7, 14 100180AGM Hanger Tube Assm 70 Ext Mt Army Green - Hanger Tube Assm 70 Extension Mount _ _ _
$80.26
1, 7, 14 100180CBL Hanger Tube Assm 70 Ext Mt Candy Blue - Hanger Tube Assm 70 Extension Mount _ _ _
$80.26
2 000073 M5 x 24 Threaded Barrel
$3.60
3 100669 M5 x 10 BTN SHCS BLKZC w/Patch
$1.50
4 100673 M8 x 45 BTN SHCS BLKZC
$1.50
5 000032 Footrest Hanger Pivot Saddle
$5.00
6 100659 M8 Nylock Nut Blk Zn
$1.00
7 100804 Tube End Plug 1"
$1.50
8 001158 Lever Swing Away Short
$6.96
9 100657 M5 Nylock Nut Blk Zn
$1.50
10 001374 M5 x 40 BHCS P/THD BLKZC
$2.04
11 000031 Hanger Bracket
$22.58
12 000119 Hanger Spring
$2.90
13 000352 Hanger Release Pin
$14.52
14 000034 Sleeve 3/4" x 1 1/2"
$3.49
15 000988 Fastener Retainer
$26.11
16 000987 Threaded Fastener
$3.60
17 200427 M5 x 10 CLS8.8 HHCS ZCw/Patch
$0.50
1 - 17 501274CBL Hanger Assm 70 Ext Mt Left Candy Blue - Hanger Assm 70 Ext Mt L _ _ _
$139.83
1 - 17 501274RED Hanger Assm 70 Ext Mt Left Candy Red - Hanger Assm 70 Ext Mt L _ _ _
$139.83
1 - 17 501274SWM Hanger Assm 70 Ext Mt Left Smooth White - Hanger Assm 70 Ext Mt L _ _ _
$139.83
1 - 17 501274PNK Hanger Assm 70 Ext Mt Left Bubblegum Pink - Hanger Assm 70 Ext Mt L _ _ _
$139.83
1 - 17 501274RBM Hanger Assm 70 Ext Mt Left Royal Blue - Hanger Assm 70 Ext Mt L _ _ _
$139.83
1 - 17 501274CGM Hanger Assm 70 Ext Mt Left Charcoal Gray - Hanger Assm 70 Ext Mt L _ _ _
$139.83
1 - 17 501274TEA Hanger Assm 70 Ext Mt Left Teal - Hanger Assm 70 Ext Mt L _ _ _
$139.83
1 - 17 501274IBM Hanger Assm 70 Ext Mt Left Iridescent Burgundy - Hanger Assm 70 Ext Mt L _ _ _
$139.83
1 - 17 501274BRG Hanger Assm 70 Ext Mt Left Bright Green - Hanger Assm 70 Ext Mt L _ _ _
$139.83
1 - 17 501274SIL Hanger Assm 70 Ext Mt Left Silver - Hanger Assm 70 Ext Mt L _ _ _
$139.83
1 - 17 501274ORG Hanger Assm 70 Ext Mt Left Orange - Hanger Assm 70 Ext Mt L _ _ _
$139.83
1 - 17 501274SKY Hanger Assm 70 Ext Mt Left Blue Skies - Hanger Assm 70 Ext Mt L _ _ _
$139.83
1 - 17 501274INM Hanger Assm 70 Ext Mt Left Iridescent Navy - Hanger Assm 70 Ext Mt L _ _ _
$139.83
1 - 17 501274AGM Hanger Assm 70 Ext Mt Left Army Green - Hanger Assm 70 Ext Mt L _ _ _
$139.83
1 - 17 501274BRO Hanger Assm 70 Ext Mt Left Bright Orange - Hanger Assm 70 Ext Mt L _ _ _
$139.83
1 - 17 501274RRM Hanger Assm 70 Ext Mt Left Retro Red - Hanger Assm 70 Ext Mt L _ _ _
$139.83
1 - 17 501274PUR Hanger Assm 70 Ext Mt Left Candy Purple - Hanger Assm 70 Ext Mt L _ _ _
$139.83
1 - 17 501274BLK Hanger Assm 70 Ext Mt Left Black - Hanger Assm 70 Ext Mt L _ _ _
$139.83
1 - 17 501274SBM Hanger Assm 70 Ext Mt Left Shadow Black - Hanger Assm 70 Ext Mt L _ _ _
$139.83
1 - 17 501274EGM Hanger Assm 70 Ext Mt Left Emerald Green - Hanger Assm 70 Ext Mt L _ _ _
$139.83
1 - 17 501274GSM Hanger Assm 70 Ext Mt Left Granny Smith - Hanger Assm 70 Ext Mt L _ _ _
$139.83
1 - 17 501274EBL Hanger Assm 70 Ext Mt Left Electric Blue - Hanger Assm 70 Ext Mt L _ _ _
$139.83
1 - 17 501274FLM Hanger Assm 70 Ext Mt Left Graphic Image Transfer - Hanger Assm 70 Ext Mt L _ _ _
$213.93
1 - 17 501274YLW Hanger Assm 70 Ext Mt Left Yellow - Hanger Assm 70 Ext Mt L _ _ _
$139.83
1 - 17 501274FUS Hanger Assm 70 Ext Mt Left Fuchsia - Hanger Assm 70 Ext Mt L _ _ _
$139.83
1 - 17 501274GGM Hanger Assm 70 Ext Mt Left Graphite Gray - Hanger Assm 70 Ext Mt L _ _ _
$139.83
1 - 17 501274COP Hanger Assm 70 Ext Mt Left Copper - Hanger Assm 70 Ext Mt L _ _ _
$139.83
1 - 17 501275RRM Hanger Assm 70 Ext Mt Right Retro Red - Hanger Assm 70 Ext Mt R _ _ _
$139.83
1 - 17 501275COP Hanger Assm 70 Ext Mt Right Copper - Hanger Assm 70 Ext Mt R _ _ _
$139.83
1 - 17 501275AGM Hanger Assm 70 Ext Mt Right Army Green - Hanger Assm 70 Ext Mt R _ _ _
$139.83
1 - 17 501275ORG Hanger Assm 70 Ext Mt Right Orange - Hanger Assm 70 Ext Mt R _ _ _
$139.83
1 - 17 501275FUS Hanger Assm 70 Ext Mt Right Fuchsia - Hanger Assm 70 Ext Mt R _ _ _
$139.83
1 - 17 501275GGM Hanger Assm 70 Ext Mt Right Graphite Gray - Hanger Assm 70 Ext Mt R _ _ _
$139.83
1 - 17 501275RED Hanger Assm 70 Ext Mt Right Candy Red - Hanger Assm 70 Ext Mt R _ _ _
$139.83
1 - 17 501275CGM Hanger Assm 70 Ext Mt Right Charcoal Gray - Hanger Assm 70 Ext Mt R _ _ _
$139.83
1 - 17 501275GSM Hanger Assm 70 Ext Mt Right Granny Smith - Hanger Assm 70 Ext Mt R _ _ _
$139.83
1 - 17 501275BLK Hanger Assm 70 Ext Mt Right Black - Hanger Assm 70 Ext Mt R _ _ _
$139.83
1 - 17 501275BRO Hanger Assm 70 Ext Mt Right Bright Orange - Hanger Assm 70 Ext Mt R _ _ _
$139.83
1 - 17 501275SWM Hanger Assm 70 Ext Mt Right Smooth White - Hanger Assm 70 Ext Mt R _ _ _
$139.83
1 - 17 501275SIL Hanger Assm 70 Ext Mt Right Silver - Hanger Assm 70 Ext Mt R _ _ _
$139.83
1 - 17 501275EGM Hanger Assm 70 Ext Mt Right Emerald Green - Hanger Assm 70 Ext Mt R _ _ _
$139.83
1 - 17 501275SBM Hanger Assm 70 Ext Mt Right Shadow Black - Hanger Assm 70 Ext Mt R _ _ _
$139.83
1 - 17 501275YLW Hanger Assm 70 Ext Mt Right Yellow - Hanger Assm 70 Ext Mt R _ _ _
$139.83
1 - 17 501275PNK Hanger Assm 70 Ext Mt Right Bubblegum Pink - Hanger Assm 70 Ext Mt R _ _ _
$139.83
1 - 17 501275FLM Hanger Assm 70 Ext Mt Right Graphic Image Transfer - Hanger Assm 70 Ext Mt R _ _ _
$213.93
1 - 17 501275INM Hanger Assm 70 Ext Mt Right Iridescent Navy - Hanger Assm 70 Ext Mt R _ _ _
$139.83
1 - 17 501275EBL Hanger Assm 70 Ext Mt Right Electric Blue - Hanger Assm 70 Ext Mt R _ _ _
$139.83
1 - 17 501275SKY Hanger Assm 70 Ext Mt Right Blue Skies - Hanger Assm 70 Ext Mt R _ _ _
$139.83
1 - 17 501275IBM Hanger Assm 70 Ext Mt Right Iridescent Burgundy - Hanger Assm 70 Ext Mt R _ _ _
$139.83
1 - 17 501275PUR Hanger Assm 70 Ext Mt Right Candy Purple - Hanger Assm 70 Ext Mt R _ _ _
$139.83
1 - 17 501275BRG Hanger Assm 70 Ext Mt Right Bright Green - Hanger Assm 70 Ext Mt R _ _ _
$139.83
1 - 17 501275RBM Hanger Assm 70 Ext Mt Right Royal Blue - Hanger Assm 70 Ext Mt R _ _ _
$139.83
1 - 17 501275CBL Hanger Assm 70 Ext Mt Right Candy Blue - Hanger Assm 70 Ext Mt R _ _ _
$139.83
1 - 17 501275TEA Hanger Assm 70 Ext Mt Right Teal - Hanger Assm 70 Ext Mt R _ _ _
$139.83
8 - 13 501270 Short Hanger Latch Assembly Left
$60.71
8 - 13 501271 Short Hanger Latch Assembly Right
$60.71
