Loading...Catalyst 4

Catalyst 4

Name: Catalyst 4: Catalyst 4 Anti-tip Receiver
Manufacturer: Ki Mobility

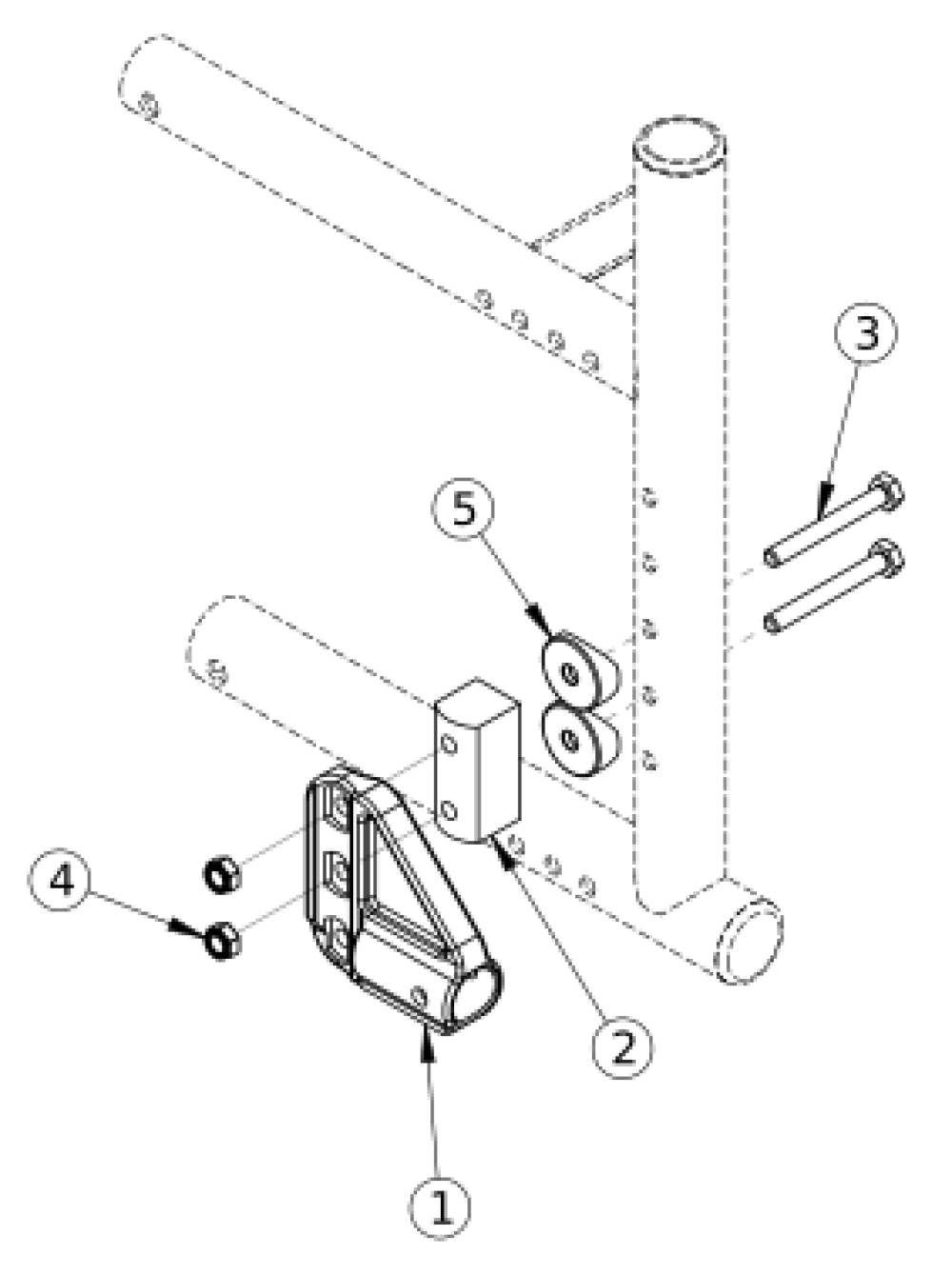

Catalyst 4 Anti-tip Receiver parts diagram
(Click on image to enlarge)

Pos.Part #DescriptionPriceUOMBuy
1a000046Anti Tip Receiver CAT- Used prior to November 14, 2018 invoice dateN/AEAPlease Call
1b004539Anti Tip Receiver, Catalyst- Used if chair has an invoice date after November 13, 2018. Replaced 000046
2002329Amputee Anti-Tip Spacer CAT- Used when Anti-Tips are present with Reverse Mount Offset Axle Bracket
3a101826M6 x 50 HHCS Blk Zn- Used when Amputee Anti-Tip Spacer is not present
3b100544M6 x 75 CLS 8.8 DIN931 HHCS ZC- Used with Amputee Anti-Tip Spacer
4100658M6 Nylock Nut Blk Zn
5000056Saddle 1 1/8"- Only used with Amputee Anti-Tip Spacer
