Catalyst 5vx
Name: Catalyst 5Vx: Catalyst Push And Pull To Lock
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility
Part Picture
(Click on image to enlarge)
Catalyst Wheel Lock Orientation
Implemented August 2022
Notice: Chair configuration review required prior to parts being quoted or ordered
Please see the "Catalyst Wheel Lock Orientation" reference to determine if you need standard or reversed wheel locks.
If adding Wheel Locks, Wheel Lock Clamps will be needed.
Attachments:

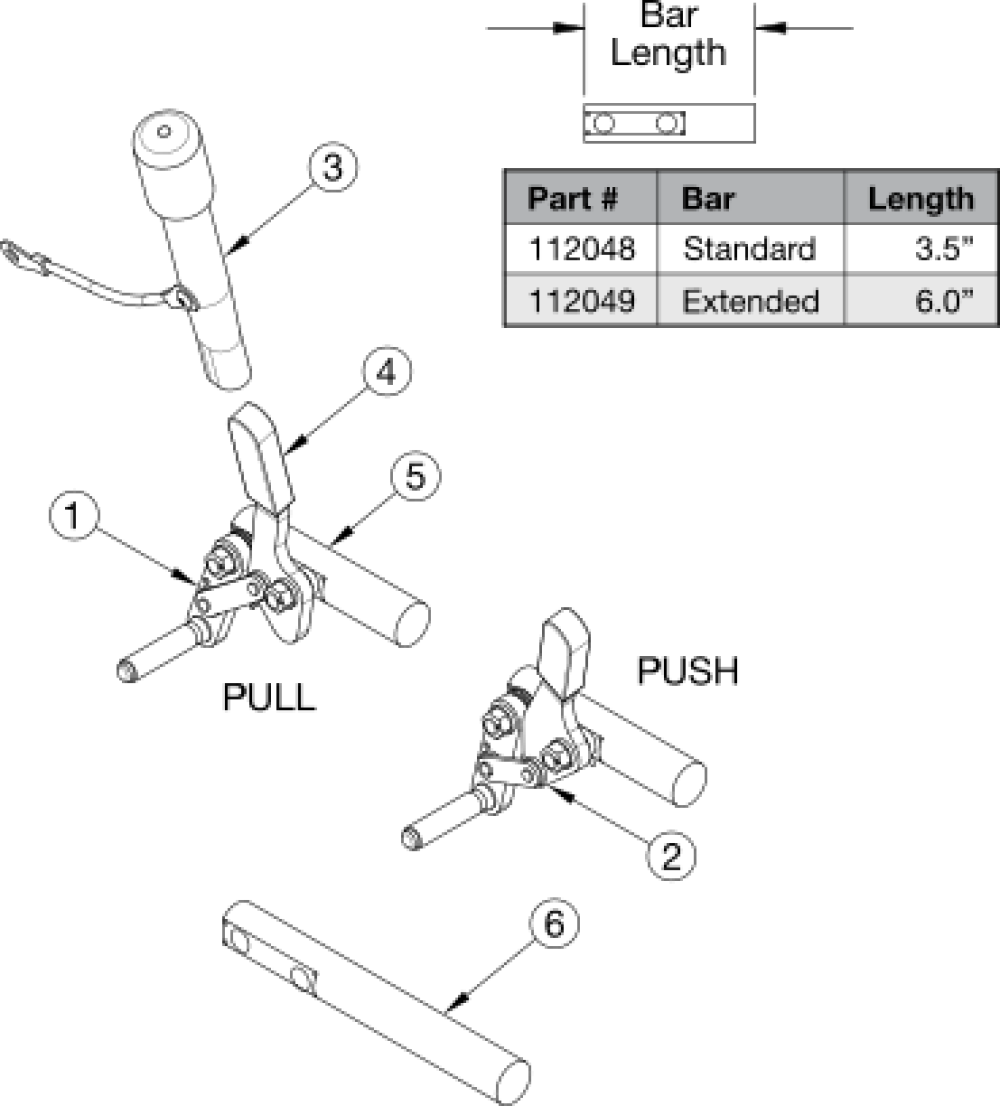

| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 2, 5 | 112007 | Wheel Lock, Push, Right |
$42.44
|
EA |
|
|
| 2, 5 | 112008 | Wheel Lock, Push, Left |
$42.44
|
EA |
|
|
| 2, 5 | 124896 | Wheel Lock, Push PAIR |
$84.88
|
EA |
|
|
| 2, 5 | 115614 | Wheel Lock, Push, Right, Reversed |
$44.56
|
EA |
|
|
| 2, 5 | 115615 | Wheel Lock, Push, Left, Reversed |
$44.56
|
EA |
|
|
| 2, 5 | 124897 | Wheel Lock, Push, Reversed PAIR |
$89.12
|
EA |
|
|
| 1, 5 | 112043 | Wheel Lock, Pull, Right |
$42.44
|
EA |
|
|
| 1, 5 | 112044 | Wheel Lock, Pull, Left |
$42.44
|
EA |
|
|
| 1, 5 | 124899 | Wheel Lock, Pull PAIR |
$84.88
|
EA |
|
|
| 1, 5 | 115618 | Wheel Lock, Pull, Right, Reversed |
$44.56
|
EA |
|
|
| 1, 5 | 115619 | Wheel Lock, Pull, Left, Reversed |
$44.56
|
EA |
|
|
| 1, 5 | 124900 | Wheel Lock, Pull, Reversed PAIR |
$89.12
|
EA |
|
|
| 2, 3, 5 | 112041 | Wheel Lock, Push w/ Extension, Right |
$55.74
|
EA |
|
|
| 2, 3, 5 | 112042 | Wheel Lock, Push w/ Extension, Left |
$55.74
|
EA |
|
|
| 2, 3, 5 | 124901 | Wheel Lock, Push w/ Extension PAIR |
$117.04
|
EA |
|
|
| 2, 3, 5 | 115616 | Wheel Lock, Push w/ Extension, Right, Reversed |
$58.52
|
EA |
|
|
| 2, 3, 5 | 115617 | Wheel Lock, Push w/ Extension, Left, Reversed |
$58.52
|
EA |
|
|
| 2, 3, 5 | 124902 | Wheel Lock, Push w/ Extension, Reversed PAIR |
$117.04
|
EA |
|
|
| 1, 3, 5 | 112045 | Wheel Lock, Pull w/ Extension, Right |
$55.74
|
EA |
|
|
| 1, 3, 5 | 112046 | Wheel Lock, Pull w/ Extension, Left |
$55.74
|
EA |
|
|
| 1, 3, 5 | 124903 | Wheel Lock, Pull w/ Extension PAIR |
$111.48
|
EA |
|
|
| 1, 3, 5 | 115620 | Wheel Lock, Pull w/ Extension, Right, Reversed |
$58.52
|
EA |
|
|
| 1, 3, 5 | 115621 | Wheel Lock, Pull w/ Extension, Left, Reversed |
$58.52
|
EA |
|
|
| 1, 3, 5 | 124904 | Wheel Lock, Pull w/ Extension, Reversed PAIR |
$117.04
|
EA |
|
|
| 3 | 200369 | Wheel Lock Extension |
$40.78
|
EA |
|
|
| 4 | 111247 | Wheel Lock Cover Plastic |
$2.38
|
EA |
|
|
| 6 | 112049 | Wheel Lock Mount Bar Extended- Used as needed | Used as needed |
$10.88
|
EA |
|
