Catalyst 5vx
Name: Catalyst 5Vx: Catalyst 5vx Side Guards - Removable Adult Composite
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility

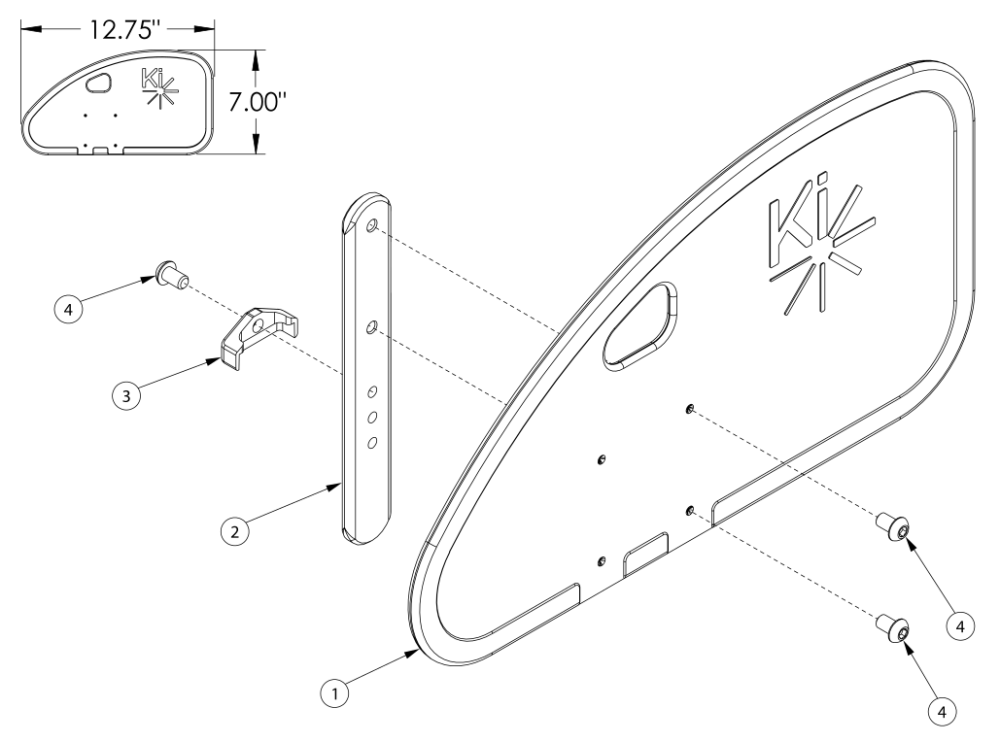

Part Picture
(Click on image to enlarge)
If retrofitting, side guard receivers may be required
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 1a, 2 - 4 | 112575 | Side Guard Assembly, Front Drilled, Left- Used on folding chairs with 17" depth or less | Used on folding chairs with 17" depth or less | $86.45 | EA | |
| 1a, 2 - 4 | 112576 | Side Guard Assembly, Front Drilled, Right- Used on folding chairs with 17" depth or less | Used on folding chairs with 17" depth or less | $86.45 | EA | |
| 1a, 2 - 4 | 112577 | Side Guard Assembly, Front Drilled, PAIR- Used on folding chairs with 17" depth or less | Used on folding chairs with 17" depth or less | $172.90 | EA | |
| 1b, 2 - 4 | 112578 | Side Guard Assembly, Rear Drilled, Left- Used on folding chairs 18" deep or greater. | Used on folding chairs 18" deep or greater. | $86.45 | EA | |
| 1b, 2 - 4 | 112579 | Side Guard Assembly, Rear Drilled, Right- Used on folding chairs 18" deep or greater. | Used on folding chairs 18" deep or greater. | $86.45 | EA | |
| 1b, 2 - 4 | 112580 | Side Guard Assembly, Rear Drilled, PAIR- Used on folding chairs 18" deep or greater. | Used on folding chairs 18" deep or greater. | $172.90 | EA | |
| 1a | 112573 | Side Guard Panel Front Drilled | $23.90 | EA | ||
| 1b | 112574 | Side Guard Panel Rear Drilled | $23.90 | EA | ||
| 2 | 000140 | Side Guard Post | $26.28 | EA | ||
| 3 | 001342 | Side Guard Post Stop | $22.96 | EA | ||
| 4 | 101184 | M6 x 10 BTN SHCS BLKZC w/Patch | $1.66 | EA |
