Name: Catalyst 5Vx: Discontinued Catalyst Half Folding Back Tension Adjustable Back Upholstery
Manufacturer: Ki Mobility
Discontinued Catalyst Half Folding Back Tension Adjustable Back Upholstery parts diagram
(Click on image to enlarge)

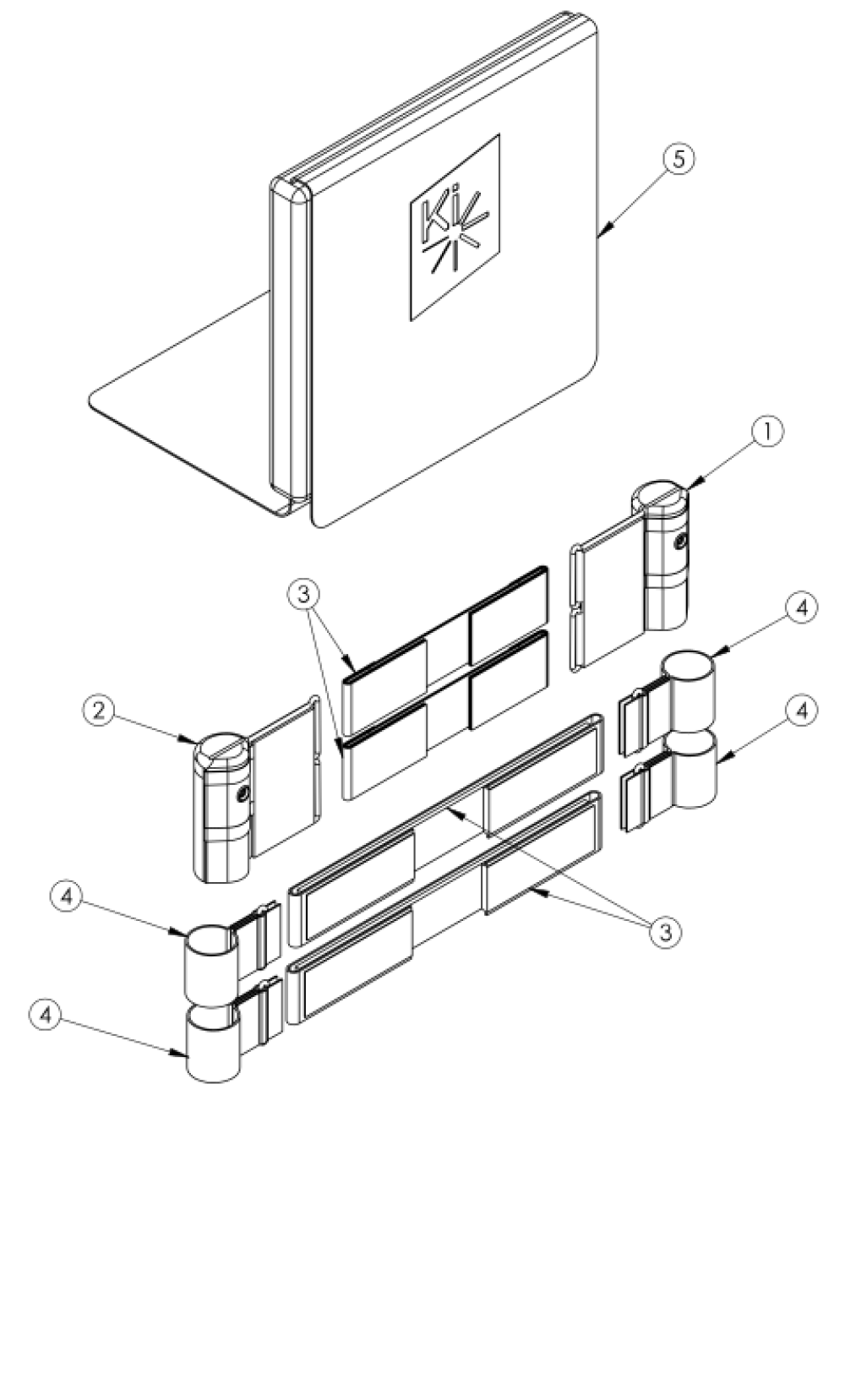

Pos. Part # Description Price UOM Buy
1 002524 Tension Back Panel Right N/A EA Please Call
2 002525 Tension Back Panel Left N/A EA Please Call
3a 003483 Back Upholstery Strap 7.3"
$11.77
EA
3b 003484 Back Upholstery Strap 9.3"
$11.77
EA
3c 003485 Back Upholstery Strap 11.3"
$11.77
EA
3d 003486 Back Upholstery Strap 13.3"
$11.77
EA
3e 003487 Back Upholstery Strap 15.3"
$14.12
EA
3f 002532 Back Upholstery Strap 17.3"
$14.12
EA
3g 002533 Back Upholstery Strap 19.3"
$14.12
EA
3h 002534 Back Upholstery Strap 21.3"
$14.12
EA
3i 002535 Back Upholstery Strap 23.3"
$14.12
EA
3j 002536 Back Upholstery Strap 25.3"
$17.65
EA
3k 002537 Back Upholstery Strap 27.3"
$17.65
EA
4 100973 Back Upholstery D-Ring
$11.77
5a 002498 Backrest Cover 13" Rigid / 14" Cat x 11-14"
$238.51
EA
5b 002499 Backrest Cover 13" Rigid / 14" Cat x 13-16"
$238.51
EA
5c 002500 Backrest Cover 13" Rigid - 14" CAT/Liberty x 15-18"
$238.51
EA
5d 003043 Backrest Cover 13" Rigid - 14" CAT/Liberty x 17-20"
$262.02
EA
5e 002502 Backrest Cover 14" Rigid / 15" Cat x 11-14"
$250.26
EA
5f 002503 Backrest Cover 14" Rigid / 15" Cat x 13-16"
$250.26
EA
5g 002504 Backrest Cover 14" Rigid - 15" CAT/Liberty x 15-18"
$250.26
EA
5h 003044 Backrest Cover 14" Rigid - 15" CAT/Liberty x 17-20"
$262.02
EA
5i 002506 Backrest Cover 15" Rigid / 16" Cat x 11-14"
$250.26
EA
5j 002507 Backrest Cover 15" Rigid / 16" Cat x 13-16"
$250.26
EA
5k 002508 Backrest Cover 15" Rigid - 16" CAT/Liberty x 15-18"
$250.26
EA
5l 003045 Backrest Cover 15" Rigid - 16" CAT/Liberty x 17-20"
$262.02
EA
5m 002510 Backrest Cover 16" Rigid / 17" Cat x 11-14"
$250.26
EA
5n 002511 Backrest Cover 16" Rigid / 17" Cat x 13-16"
$250.26
EA
5o 002512 Backrest Cover 16" Rigid - 17" CAT/Liberty x 15-18"
$250.26
EA
5p 003046 Backrest Cover 16" Rigid - 17" CAT/Liberty x 17-20"
$262.02
EA
5q 003049 Backrest Cover 17" Rigid / 18" Cat x 11-14"
$262.02
EA
5r 003050 Backrest Cover 17" Rigid / 18" Cat x 13-16"
$262.02
EA
5s 003051 Backrest Cover 17" Rigid - 18" CAT/Liberty x 15-18"
$262.02
EA
5t 003052 Backrest Cover 17" Rigid - 18" CAT/Liberty x 17-20"
$262.02
EA
5u 003055 Backrest Cover 18" Rigid / 19" Cat x 11-14"
$262.02
EA
5v 003056 Backrest Cover 18" Rigid / 19" Cat x 13-16"
$262.02
EA
5w 003057 Backrest Cover 18" Rigid - 19" CAT/Liberty x 15-18"
$262.02
EA
5x 003058 Backrest Cover 18" Rigid - 19" CAT/Liberty x 17-20"
$262.02
EA
5y 003061 Backrest Cover 19" Rigid / 20" Cat x 11-14"
$273.79
EA
5z 003062 Backrest Cover 19" Rigid / 20" Cat x 13-16"
$273.79
EA
5aa 003063 Backrest Cover 19" Rigid - 20" CAT/Liberty x 15-18"
$273.79
EA
5ab 003064 Backrest Cover 19" Rigid - 20" CAT/Liberty x 17-20"
$273.79
EA
5ac 003067 Backrest Cover 20" Rigid / 21" Cat x 11-14"
$273.79
EA
5ad 003068 Backrest Cover 20" Rigid / 21" Cat x 13-16"
$273.79
EA
5ae 003069 Backrest Cover 20" Rigid - 21" CAT/Liberty x 15-18"
$273.79
EA
5af 003070 Backrest Cover 20" Rigid - 21" CAT/Liberty x 17-20"
$273.79
EA
5ag 003072 Backrest Cover 21" Rigid / 22" Cat x 13-16"
$291.44
EA
5ah 003073 Backrest Cover 21" Rigid - 22" CAT/Liberty x 15-18"
$291.44
EA
5ai 003074 Backrest Cover 21" Rigid - 22" CAT/Liberty x 17-20"
$291.44
EA
1, 2, 3a, 3c, 4, 5a 505003 Back Upholstery Assembly Tension Adjustable 14W 12.5-13.5H, Half Folding Back Straight N/A EA Please Call
1, 2, 3a, 3c, 4, 5a 505004 Back Upholstery Assembly Tension Adjustable 14W 12.5H, Half Folding Back 8 Degree Bend N/A EA Please Call
1, 2, 3a, 3c, 4, 5a 505005 Back Upholstery Assembly Tension Adjustable 14W 13.5H, Half Folding Back 8 Degree Bend N/A EA Please Call
1, 2, 3a, 3c, 4, 5b 505006 Back Upholstery Assembly Tension Adjustable 14W 145H, Half Folding Back- Used on Straight and 8 Degree Bend Backrests N/A EA Please Call
1, 2, 3a, 3c, 4, 5b 505007 Back Upholstery Assembly Tension Adjustable 14W 155H, Half Folding Back Straight N/A EA Please Call
1, 2, 3a, 3c, 4, 5b 505008 Back Upholstery Assembly Tension Adjustable 14W 155H, Half Folding Back 8 Degree Bend N/A EA Please Call
1, 2, 3a, 3c, 4, 5c 505009 Back Upholstery Assembly Tension Adjustable 14W 165H, Half Folding Back- Used on Straight and 8 Degree Bend Backrests N/A EA Please Call
1, 2, 3a, 3c, 4, 5d 505010 Back Upholstery Assembly Tension Adjustable 14W 175H, Half Folding Back- Used on Straight and 8 Degree Bend Backrests N/A EA Please Call
1, 2, 3a, 3c, 4, 5d 505011 Back Upholstery Assembly Tension Adjustable 14W 185-195H, Half Folding Back- Used on Straight and 8 Degree Bend Backrests N/A EA Please Call
1, 2, 3b, 3d, 4, 5e 505012 Back Upholstery Assembly Tension Adjustable 15W 125-135H, Half Folding Back Straight N/A EA Please Call
1, 2, 3b, 3d, 4, 5e 505013 Back Upholstery Assembly Tension Adjustable 15W 125H, Half Folding Back 8 Degree Bend N/A EA Please Call
1, 2, 3b, 3d, 4, 5e 505014 Back Upholstery Assembly Tension Adjustable 15W 135H, Half Folding Back 8 Degree Bend N/A EA Please Call
1, 2, 3b, 3d, 4, 5f 505015 Back Upholstery Assembly Tension Adjustable 15W 145H, Half Folding Back Straight N/A EA Please Call
1, 2, 3b, 3d, 4, 5f 505016 Back Upholstery Assembly Tension Adjustable 15W 155H, Half Folding Back Straight N/A EA Please Call
1, 2, 3b, 3d, 4, 5f 505017 Back Upholstery Assembly Tension Adjustable 15W 155H, Half Folding Back 8 Degree Bend N/A EA Please Call
1, 2, 3b, 3d, 4, 5g 505018 Back Upholstery Assembly Tension Adjustable 15W 165H, Half Folding Back- Used on Straight and 8 Degree Bend Backrests N/A EA Please Call
1, 2, 3b, 3d, 4, 5h 505019 Back Upholstery Assembly Tension Adjustable 15W 175H, Half Folding Back- Used on Straight and 8 Degree Bend Backrests N/A EA Please Call
1, 2, 3b, 3d, 4, 5h 505020 Back Upholstery Assembly Tension Adjustable 15W 185-195H, Half Folding Back- Used on Straight and 8 Degree Bend Backrests N/A EA Please Call
1, 2, 3c, 3e, 4, 5i 505021 Back Upholstery Assembly Tension Adjustable 16W 125-135H, Half Folding Back Straight N/A EA Please Call
1, 2, 3c, 3e, 4, 5i 505022 Back Upholstery Assembly Tension Adjustable 16W 125H, Half Folding Back 8 Degree Bend N/A EA Please Call
1, 2, 3c, 3e, 4, 5i 505023 Back Upholstery Assembly Tension Adjustable 16W 135H, Half Folding Back 8 Degree Bend N/A EA Please Call
1, 2, 3c, 3e, 4, 5j 505024 Back Upholstery Assembly Tension Adjustable 16W 145H, Half Folding Back Straight N/A EA Please Call
1, 2, 3c, 3e, 4, 5j 505025 Back Upholstery Assembly Tension Adjustable 16W 145H, Half Folding Back 8 Degree Bend N/A EA Please Call
1, 2, 3c, 3e, 4, 5j 505026 Back Upholstery Assembly Tension Adjustable 16W 155H, Half Folding Back Straight N/A EA Please Call
1, 2, 3c, 3e, 4, 5j 505027 Back Upholstery Assembly Tension Adjustable 16W 155H, Half Folding Back 8 Degree Bend N/A EA Please Call
1, 2, 3c, 3e, 4, 5k 505028 Back Upholstery Assembly Tension Adjustable 16W 165H, Half Folding Back- Used on Straight and 8 Degree Bend Backrests N/A EA Please Call
1, 2, 3c, 3e, 4, 5l 505029 Back Upholstery Assembly Tension Adjustable 16W 175H, Half Folding Back- Used on Straight and 8 Degree Bend Backrests N/A EA Please Call
1, 2, 3c, 3e, 4, 5l 505030 Back Upholstery Assembly Tension Adjustable 16W 185-195H, Half Folding Back- Used on Straight and 8 Degree Bend Backrests N/A EA Please Call
1, 2, 3d, 3f, 4, 5m 505031 Back Upholstery Assembly Tension Adjustable 17W 125-135H, Half Folding Back Straight N/A EA Please Call
1, 2, 3d, 3f, 4, 5m 505032 Back Upholstery Assembly Tension Adjustable 17W 125H, Half Folding Back 8 Degree Bend N/A EA Please Call
1, 2, 3d, 3f, 4, 5m 505033 Back Upholstery Assembly Tension Adjustable 17W 135H, Half Folding Back 8 Degree Bend N/A EA Please Call
1, 2, 3d, 3f, 4, 5n 505034 Back Upholstery Assembly Tension Adjustable 17W 145H, Half Folding Back Straight N/A EA Please Call
1, 2, 3d, 3f, 4, 5n 505035 Back Upholstery Assembly Tension Adjustable 17W 145H, Half Folding Back 8 Degree Bend N/A EA Please Call
1, 2, 3d, 3f, 4, 5n 505036 Back Upholstery Assembly Tension Adjustable 17W 155H, Half Folding Back Straight N/A EA Please Call
1, 2, 3d, 3f, 4, 5n 505037 Back Upholstery Assembly Tension Adjustable 17W 155H, Half Folding Back 8 Degree Bend N/A EA Please Call
1, 2, 3d, 3f, 4, 5o 505038 Back Upholstery Assembly Tension Adjustable 17W 165H, Half Folding Back- Used on Straight and 8 Degree Bend Backrests N/A EA Please Call
1, 2, 3d, 3f, 4, 5p 505039 Back Upholstery Assembly Tension Adjustable 17W 175H, Half Folding Back- Used on Straight and 8 Degree Bend Backrests N/A EA Please Call
1, 2, 3d, 3f, 4, 5p 505040 Back Upholstery Assembly Tension Adjustable 17W 185-195H, Half Folding Back- Used on Straight and 8 Degree Bend Backrests N/A EA Please Call
1, 2, 3e, 3g, 4, 5q 505041 Back Upholstery Assembly Tension Adjustable 18W 125-135H, Half Folding Back Straight N/A EA Please Call
1, 2, 3e, 3g, 4, 5q 505042 Back Upholstery Assembly Tension Adjustable 18W 125H, Half Folding Back 8 Degree Bend N/A EA Please Call
1, 2, 3e, 3g, 4, 5q 505043 Back Upholstery Assembly Tension Adjustable 18W 135H, Half Folding Back 8 Degree Bend N/A EA Please Call
1, 2, 3e, 3g, 4, 5r 505044 Back Upholstery Assembly Tension Adjustable 18W 145H, Half Folding Back Straight N/A EA Please Call
1, 2, 3e, 3g, 4, 5r 505045 Back Upholstery Assembly Tension Adjustable 18W 145H, Half Folding Back 8 Degree Bend N/A EA Please Call
1, 2, 3e, 3g, 4, 5r 505046 Back Upholstery Assembly Tension Adjustable 18W 155H, Half Folding Back Straight N/A EA Please Call
1, 2, 3e, 3g, 4, 5r 505047 Back Upholstery Assembly Tension Adjustable 18W 155H, Half Folding Back 8 Degree Bend N/A EA Please Call
1, 2, 3e, 3g, 4, 5s 505048 Back Upholstery Assembly Tension Adjustable 18W 165H, Half Folding Back- Used on Straight and 8 Degree Bend Backrests N/A EA Please Call
1, 2, 3e, 3g, 4, 5t 505049 Back Upholstery Assembly Tension Adjustable 18W 175H, Half Folding Back- Used on Straight and 8 Degree Bend Backrests N/A EA Please Call
1, 2, 3e, 3g, 4, 5t 505050 Back Upholstery Assembly Tension Adjustable 18W 185-195H, Half Folding Back- Used on Straight and 8 Degree Bend Backrests N/A EA Please Call
1, 2, 3f, 3h, 4, 5u 505051 Back Upholstery Assembly Tension Adjustable 19W 125-135H, Half Folding Back Straight N/A EA Please Call
1, 2, 3f, 3h, 4, 5u 505052 Back Upholstery Assembly Tension Adjustable 19W 125H, Half Folding Back 8 Degree Bend N/A EA Please Call
1, 2, 3f, 3h, 4, 5u 505053 Back Upholstery Assembly Tension Adjustable 19W 135H, Half Folding Back 8 Degree Bend N/A EA Please Call
1, 2, 3f, 3h, 4, 5v 505054 Back Upholstery Assembly Tension Adjustable 19W 145H, Half Folding Back Straight N/A EA Please Call
1, 2, 3f, 3h, 4, 5v 505055 Back Upholstery Assembly Tension Adjustable 19W 145H, Half Folding Back 8 Degree Bend N/A EA Please Call
1, 2, 3f, 3h, 4, 5v 505056 Back Upholstery Assembly Tension Adjustable 19W 155H, Half Folding Back Straight N/A EA Please Call
1, 2, 3f, 3h, 4, 5v 505057 Back Upholstery Assembly Tension Adjustable 19W 155H, Half Folding Back 8 Degree Bend N/A EA Please Call
1, 2, 3f, 3h, 4, 5w 505058 Back Upholstery Assembly Tension Adjustable 19W 165H, Half Folding Back Straight N/A EA Please Call
1, 2, 3f, 3h, 4, 5w 505059 Back Upholstery Assembly Tension Adjustable 19W 165H, Half Folding Back 8 Degree Bend N/A EA Please Call
1, 2, 3f, 3h, 4, 5x 505060 Back Upholstery Assembly Tension Adjustable 19W 175H, Half Folding Back Straight N/A EA Please Call
1, 2, 3f, 3h, 4, 5x 505061 Back Upholstery Assembly Tension Adjustable 19W 175H, Half Folding Back 8 Degree Bend N/A EA Please Call
1, 2, 3f, 3h, 4, 5x 505062 Back Upholstery Assembly Tension Adjustable 19W 185-195H, Half Folding Back- Used on Straight and 8 Degree Bend Backrests N/A EA Please Call
1, 2, 3f, 3i, 4, 5y 505063 Back Upholstery Assembly Tension Adjustable 20W 125-135H, Half Folding Back Straight N/A EA Please Call
1, 2, 3f, 3i, 4, 5y 505064 Back Upholstery Assembly Tension Adjustable 20W 125H, Half Folding Back 8 Degree Bend N/A EA Please Call
1, 2, 3f, 3i, 4, 5y 505065 Back Upholstery Assembly Tension Adjustable 20W 135H, Half Folding Back 8 Degree Bend N/A EA Please Call
1, 2, 3f, 3i, 4, 5z 505066 Back Upholstery Assembly Tension Adjustable 20W 145H, Half Folding Back Straight N/A EA Please Call
1, 2, 3f, 3i, 4, 5z 505067 Back Upholstery Assembly Tension Adjustable 20W 145H, Half Folding Back 8 Degree Bend N/A EA Please Call
1, 2, 3f, 3i, 4, 5z 505068 Back Upholstery Assembly Tension Adjustable 20W 155H, Half Folding Back Straight N/A EA Please Call
1, 2, 3f, 3i, 4, 5z 505069 Back Upholstery Assembly Tension Adjustable 20W 155H, Half Folding Back 8 Degree Bend N/A EA Please Call
1, 2, 3f, 3i, 4, 5aa 505070 Back Upholstery Assembly Tension Adjustable 20W 165H, Half Folding Back- Used on Straight and 8 Degree Bend Backrests N/A EA Please Call
1, 2, 3f, 3i, 4, 5ab 505071 Back Upholstery Assembly Tension Adjustable 20W 175H, Half Folding Back- Used on Straight and 8 Degree Bend Backrests N/A EA Please Call
1, 2, 3f, 3i, 4, 5ab 505072 Back Upholstery Assembly Tension Adjustable 20W 185-195H, Half Folding Back- Used on Straight and 8 Degree Bend Backrests N/A EA Please Call
1, 2, 3h, 3j, 4, 5ac 505073 Back Upholstery Assembly Tension Adjustable 21W 125-135H, Half Folding Back Straight N/A EA Please Call
1, 2, 3h, 3j, 4, 5ac 505074 Back Upholstery Assembly Tension Adjustable 21W 125H, Half Folding Back 8 Degree Bend N/A EA Please Call
1, 2, 3h, 3j, 4, 5ac 505075 Back Upholstery Assembly Tension Adjustable 21W 135H, Half Folding Back 8 Degree Bend N/A EA Please Call
1, 2, 3h, 3j, 4, 5ad 505076 Back Upholstery Assembly Tension Adjustable 21W 145H, Half Folding Back Straight N/A EA Please Call
1, 2, 3h, 3j, 4, 5ad 505077 Back Upholstery Assembly Tension Adjustable 21W 145H, Half Folding Back 8 Degree Bend N/A EA Please Call
1, 2, 3h, 3j, 4, 5ad 505078 Back Upholstery Assembly Tension Adjustable 21W 155H, Half Folding Back Straight N/A EA Please Call
1, 2, 3h, 3j, 4, 5ad 505079 Back Upholstery Assembly Tension Adjustable 21W 155H, Half Folding Back 8 Degree Bend N/A EA Please Call
1, 2, 3h, 3j, 4, 5ae 505080 Back Upholstery Assembly Tension Adjustable 21W 165H, Half Folding Back- Used on Straight and 8 Degree Bend Backrests N/A EA Please Call
1, 2, 3h, 3j, 4, 5af 505081 Back Upholstery Assembly Tension Adjustable 21W 175H, Half Folding Back- Used on Straight and 8 Degree Bend Backrests N/A EA Please Call
1, 2, 3h, 3j, 4, 5af 505082 Back Upholstery Assembly Tension Adjustable 21W 185-195H, Half Folding Back- Used on Straight and 8 Degree Bend Backrests N/A EA Please Call
1, 2, 3i, 3k, 4, 5ag 505083 Back Upholstery Assembly Tension Adjustable 22W 145H, Half Folding Back Straight N/A EA Please Call
1, 2, 3i, 3k, 4, 5ag 505084 Back Upholstery Assembly Tension Adjustable 22W 145H, Half Folding Back 8 Degree Bend N/A EA Please Call
1, 2, 3i, 3k, 4, 5ag 505085 Back Upholstery Assembly Tension Adjustable 22W 155H, Half Folding Back Straight N/A EA Please Call
1, 2, 3i, 3k, 4, 5ag 505086 Back Upholstery Assembly Tension Adjustable 22W 155H, Half Folding Back 8 Degree Bend N/A EA Please Call
1, 2, 3i, 3k, 4, 5ah 505087 Back Upholstery Assembly Tension Adjustable 22W 165H, Half Folding Back- Used on Straight and 8 Degree Bend Backrests N/A EA Please Call
1, 2, 3i, 3k, 4, 5ai 505088 Back Upholstery Assembly Tension Adjustable 22W 175H, Half Folding Back- Used on Straight and 8 Degree Bend Backrests N/A EA Please Call
1, 2, 3i, 3k, 4, 5ai 505089 Back Upholstery Assembly Tension Adjustable 22W 185-195H, Half Folding Back- Used on Straight and 8 Degree Bend Backrests N/A EA Please Call
