Name: Catalyst 5Vx: Catalyst 5vx Side Frame Assembly
Manufacturer: Ki Mobility

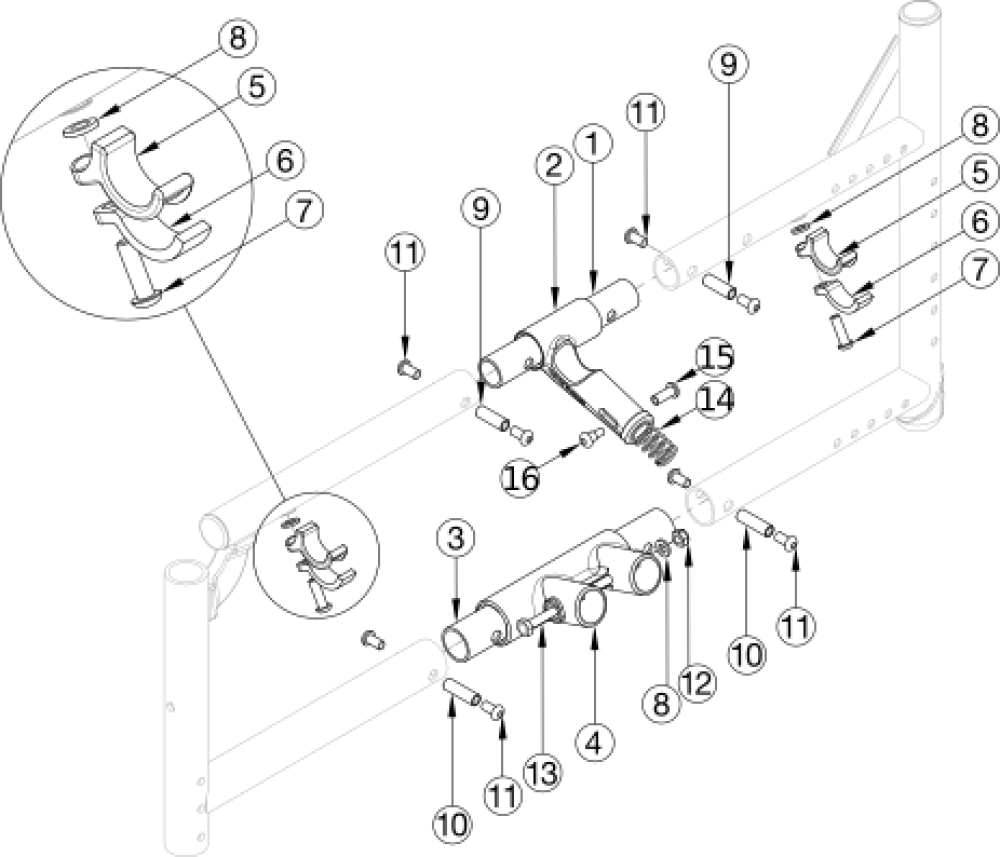

Catalyst 5vx Side Frame Assembly parts diagram
(Click on image to enlarge)

Upper Pivot Assemblies are based on seat width
Pos.Part #DescriptionPriceUOMBuy
2a, 16 - 18500024Upper Pivot Assembly 14" Width- This kit also contains the 14" slider link (not pictured)
$48.42
EA
2b, 16 - 18500025Upper Pivot Assembly 15" Width- This kit also contains the 15" slider link (not pictured)
$48.42
EA
2b, 16 - 18500026Upper Pivot Assembly 16" Width- This kit also contains the 16" slider link (not pictured)
$48.42
EA
2b, 16 - 18500027Upper Pivot Assembly 17" Width- This kit also contains the 17" slider link (not pictured)
$48.42
EA
2b, 16 - 18500028Upper Pivot Assembly 18" Width- This kit also contains the 18" slider link (not pictured)
$48.42
EA
2b, 16 - 18500029Upper Pivot Assembly 19" Width- This kit also contains the 19" slider link (not pictured)
$48.42
EA
2b, 16 - 18500030Upper Pivot Assembly 20" Width- This kit also contains the 20" slider link (not pictured)
$48.42
EA
2b, 16 - 18501479Upper Pivot Assembly 21/22" Width- This kit also contains the 21/22" slider link (not pictured)
$48.42
EA
5, 6, 7a, 8501005Seat Hook and Support Hardware Kit, Standard, Catalyst- This kit contains quantity of 1 each
$18.82
EA
5, 6, 7b, 8114528Seat Hook and Support Hardware Kit, Standard, for Heavy Duty Catalyst- Used with Heavy Duty / 350 lbs Weight Capacity. This kit contains quantity of 1 each
$19.39
EA
1000011Frame Connector Upper CAT
$4.95
EA
3000009Frame Connector Lower CAT
$4.95
EA
4000001Lower Frame Pivot CAT
$29.97
EA
5000003Seat Hook, Catalyst
$8.33
EA
6000004Seat Hook Support, Catalyst
$7.09
EA
7a100668M6 x 20 CLS10.9 BTN SHCS ZC w/Patch- Used with Standard Weight Capacity
$1.71
EA
7b101180M6 x 20 SHCS BLK ZC- Used with Heavy Duty / 350 lbs Weight Capacity
$2.28
EA
81008311/2" Washer OD .040" Thick
$1.71
EA
9000065M6 x 23.68 Threaded Barrel- Additional 2 are needed with chairs 18"-20" deep
$4.47
EA
10000066M6 x 27 Threaded Barrel
$4.82
11100667M6 x 12 BTN SHCS BLKZC w/Patch
$1.71
EA
12000336Latch Block
$40.58
EA
13101819M6 x 40 FHCS Blk Zn
$1.13
EA
14100658M6 Nylock Nut Blk Zn
$1.13
EA
15100704M6 x 90 CLS8.8 DIN931 HHCS ZC
$1.71
EA
19100746M6 Flat Washer Blk Zn
$1.71
EA
