Catalyst 5vx

Name: Catalyst 5Vx: Catalyst Armrests - Height Adjustable Tall T-arm
Manufacturer: Ki Mobility

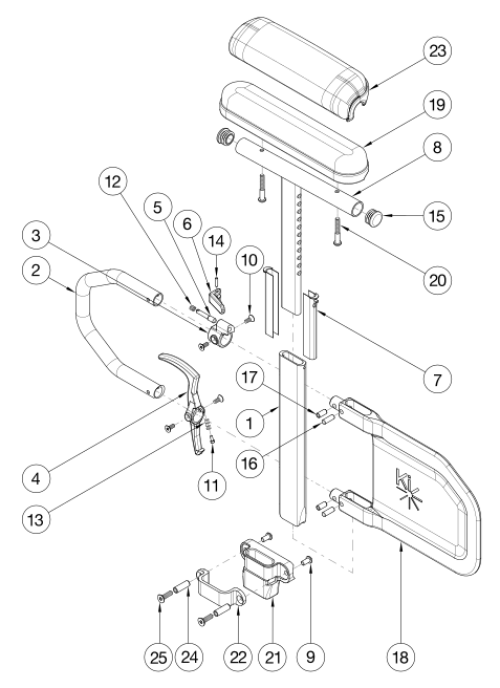

Catalyst Armrests - Height Adjustable Tall T-arm parts diagram
(Click on image to enlarge)

Pos. Part # Description Price UOM Buy
1 - 7, 8b, 9 - 18b, 19a, 20a, 21, 22, 24, 25 116202 Height Adj Tall T-Arm Assm w/Long Side Shield and Standard Pad Full, 1" Receiver
$339.90
EA
1 - 7, 8b, 9 - 18b, 19a, 20a, 21, 22, 24, 25 116203 Height Adj Tall T-Arm Assm w/Long Side Shield and Standard Pad Full, 1" Receiver, Pair Cat
$679.80
EA
1 - 7, 8b, 9 - 18a, 19a, 20a, 21, 22, 24, 25 116204 Height Adj Tall T-Arm Assm w/Short Side Shield and Standard Pad Full, 1" Receiver
$339.90
EA
1 - 7, 8b, 9 - 18a, 19a, 20a, 21, 22, 24, 25 116205 Height Adj Tall T-Arm Assm w/Short Side Shield and Standard Pad Full, 1" Receiver, Pair Cat
$679.80
EA
1 - 7, 8a, 9 - 18b, 19b, 20a, 21, 22, 24, 25 116210 Height Adj Tall T-Arm Assm w/Long Side Shield and Standard Pad Desk, 1" Receiver
$339.90
EA
1 - 7, 8a, 9 - 18b, 19b, 20a, 21, 22, 24, 25 116211 Height Adj Tall T-Arm Assm w/Long Side Shield and Standard Pad Desk, 1" Receiver, Pair Cat
$679.80
EA
1 - 7, 8a, 9 - 18a, 19b, 20a, 21, 22, 24, 25 116212 Height Adj Tall T-Arm Assm w/Short Side Shield and Standard Pad Desk, 1" Receiver
$339.90
EA
1 - 7, 8a, 9 - 18a, 19b, 20a, 21, 22, 24, 25 116213 Height Adj Tall T-Arm Assm w/Short Side Shield and Standard Pad Desk, 1" Receiver, Pair Cat
$679.80
EA
1 - 7, 8b, 9 - 18b, 20b, 21, 22, 23a, 24, 25 116206 Height Adj Tall T-Arm Assm w/Long Side Shield and Waterfall Pad Full, 1" Receiver
$350.15
EA
1 - 7, 8b, 9 - 18b, 20b, 21, 22, 23a, 24, 25 116207 Height Adj Tall T-Arm Assm w/Long Side Shield and Waterfall Pad Full, 1" Receiver, Pair Cat
$700.31
EA
1 - 7, 8b, 9 - 18a, 20b, 21, 22, 23a, 24, 25 116208 Height Adj Tall T-Arm Assm w/Short Side Shield and Waterfall Pad Full, 1" Receiver
$350.15
EA
1 - 7, 8b, 9 - 18a, 20b, 21, 22, 23a, 24, 25 116209 Height Adj Tall T-Arm Assm w/Short Side Shield and Waterfall Pad Full, 1" Receiver, Pair Cat
$700.31
EA
1 - 7, 8a, 9 - 18b, 20b, 21, 22, 23b, 24, 25 116214 Height Adj Tall T-Arm Assm w/Long Side Shield and Waterfall Pad Desk, 1" Receiver
$350.15
EA
1 - 7, 8a, 9 - 18b, 20b, 21, 22, 23b, 24, 25 116215 Height Adj Tall T-Arm Assm w/Long Side Shield and Waterfall Pad Desk, 1" Receiver, Pair Cat
$700.31
EA
1 - 7, 8a, 9 - 18a, 20b, 21, 22, 23b, 24, 25 116216 Height Adj Tall T-Arm Assm w/Short Side Shield and Waterfall Pad Desk, 1" Receiver
$350.15
EA
1 - 7, 8a, 9 - 18a, 20b, 21, 22, 23b, 24, 25 116217 Height Adj Tall T-Arm Assm w/Short Side Shield and Waterfall Pad Desk, 1" Receiver, Pair Cat
$700.31
EA
1 - 7, 8b, 10 - 18b, 19a, 20a 116196 Height Adj Tall T-Arm Assm w/Long Side Shield and Std Pad Full
$273.47
EA
1 - 7, 8b, 10 - 18b, 19a, 20a 116197 Height Adj Tall T-Arm Assm w/Long Side Shield and Std Pad Full, Pair
$546.92
EA
1 - 7, 8b, 10 - 18a, 19a, 20a 116164 Height Adjustable Tall T-Arm Assembly w/Short Side Shield and Std Pad Full
$273.47
EA
1 - 7, 8b, 10 - 18a, 19a, 20a 116165 Height Adjustable Tall T-Arm Assembly w/Short Side Shield and Std Pad Full, Pair
$546.92
EA
1 - 7, 8a, 10 - 18b, 19b, 20a 116194 Height Adj Tall T-Arm Assm w/Long Side Shield and Std Pad Desk
$273.47
EA
1 - 7, 8a, 10 - 18b, 19b, 20a 116195 Height Adj Tall T-Arm Assm w/Long Side Shield and Std Pad Desk, Pair
$546.92
EA
1 - 7, 8a, 10 - 18a, 19b, 20a 116162 Height Adjustable Tall T-Arm Assembly w/Short Side Shield and Std Pad Desk
$273.47
EA
1 - 7, 8a, 10 - 18a, 19b, 20a 116163 Height Adjustable Tall T-Arm Assembly w/Short Side Shield and Std Pad Desk, Pair
$546.92
EA
1 - 7, 8b, 10 - 18b, 20b, 23a 116200 Height Adj Tall T-Arm Assm w/Long Side Shield and Waterfall Pad Full
$283.71
EA
1 - 7, 8b, 10 - 18b, 20b, 23a 116201 Height Adj Tall T-Arm Assm w/Long Side Shield and Waterfall Pad Full, Pair
$567.44
EA
1 - 7, 8b, 10 - 18a, 20b, 23a 116168 Height Adjustable Tall T-Arm Assembly w/Short Side Shield and Waterfall Pad Full
$283.71
EA
1 - 7, 8b, 10 - 18a, 20b, 23a 116169 Height Adjustable Tall T-Arm Assembly w/Short Side Shield and Waterfall Pad Full, Pair
$567.44
EA
1 - 7, 8a, 10 - 18b, 20b, 23b 116198 Height Adj Tall T-Arm Assm w/Long Side Shield and Waterfall Pad Desk
$283.71
EA
1 - 7, 8a, 10 - 18b, 20b, 23b 116199 Height Adj Tall T-Arm Assm w/Long Side Shield and Waterfall Pad Desk, Pair
$567.44
EA
1 - 7, 8a, 10 - 18a, 20b, 23b 116166 Height Adjustable Tall T-Arm Assembly w/Short Side Shield and Waterfall Pad Desk
$283.71
EA
1 - 7, 8a, 10 - 18a, 20b, 23b 116167 Height Adjustable Tall T-Arm Assembly w/Short Side Shield and Waterfall Pad Desk, Pair
$567.44
EA
1 - 7, 10 - 14, 16, 17, 18a 114150 Height Adjustable T-Arm Short Lower Assembly, Tall- Does not include t-arm upper, arm pad or arm pad screws
$159.47
EA
1 - 7, 10 - 14, 16, 17, 18b 114151 Height Adjustable T-Arm Long Lower Assy, Tall- Does not include t-arm upper, arm pad or arm pad screws
$159.47
EA
1 - 7, 8a, 10 - 18a 114432 Height Adjustable T-Arm Short Side Shield, Desk, Tall- Does not include arm pad or arm pad screws
$243.46
EA
1 - 7, 8b, 10 - 18a 114433 Height Adjustable T-Arm Short Side Shield, Full, Tall- Does not include arm pad or arm pad screws
$243.46
EA
1 - 7, 8a, 10 - 18b 114434 Height Adjustable T-Arm Long Side Shield, Desk, Tall- Does not include arm pad or arm pad screws
$243.46
EA
1 - 7, 8b, 10 - 18b 114435 Height Adjustable T-Arm Full, Long, Tall- Does not include arm pad or arm pad screws
$243.46
EA
4, 10, 11, 13 116375 Height Adjustable Tall T-Arm Release Lever Assembly
$9.50
EA
16, 17, 18a 116376 Height Adj Tall T-Arm Long Side Shield Assembly
$43.85
EA
16, 17, 18b 116377 Height Adjustable Tall T-Arm Short Shield Assembly
$18.40
EA
9, 21, 22, 24, 25 501730 Height Adj T-Arm Receiver Assm 1" CAT
$62.30
EA
1 113137 Height Adjustable T-Arm Post, Tall
$28.10
EA
2 113138 Height Adjustable T-Arm Transfer Tube, Tall
$36.74
EA
3, 5, 6, 10, 12, 14 116378 Height Adjustable Tall T-Arm Upper Latch Assembly
$45.41
EA
7 000090 Height Adjustable T Armrest Shim
$2.86
8a, 15 116379 Height Adjustable Tall T Armrest Upper Desk w/ Tube End Plug
$85.82
EA
8b, 15 116380 Height Adjustable Tall T Armrest Upper Full w/ Tube End Plug
$85.82
EA
9 100667 M6 x 12 BTN SHCS BLKZC w/Patch
$1.77
EA
10 103522 M5 x 0.8 x 12 FHCS CLS 10.9 Nyl Blk Zn DIN7991
$1.17
EA
11 000152 Height Adjustable T Armrest Release Spring Button
$1.21
EA
13 000135 Height Adjustable T Armrest Release Lever Spring
$1.21
EA
15 100803 Tube End Plug 7/8"
$1.77
EA
16 003641 .25" x .75" Dowel Pin
$1.17
EA
17 003457 M5 x 14mm Barrel Nut
$1.17
EA
19a 100500 Arm Pad Full
$26.45
EA
19b 100501 Arm Pad Desk
$26.45
EA
20a 100696 M5 x 30mm PPH Capscrew- Used with Standard Arm Pads
$1.77
EA
20b 100654 M5 x 40 DIN7985 PH Pan HD M/S ZC- Used with Waterfall Arm Pads
$1.77
21 000087 Height Adjustable T-Arm Receiver 1"
$17.07
EA
22 000088 Height Adjustable T Armrest Bracket
$30.69
EA
23a 102452 Waterfall Arm Pad Full
$36.71
EA
23b 102521 Waterfall Arm Pad Desk
$36.71
EA
24 000065 M6 x 23.68 Threaded Barrel
$4.63
EA
25 100866 M6 x 20 CLS12.9 DIN7991 FSHCS Blk Zc w/Patch
$2.94
