Catalyst 5vx
Name: Catalyst 5Vx: Catalyst 5vx Swing-in Anti-tip
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility

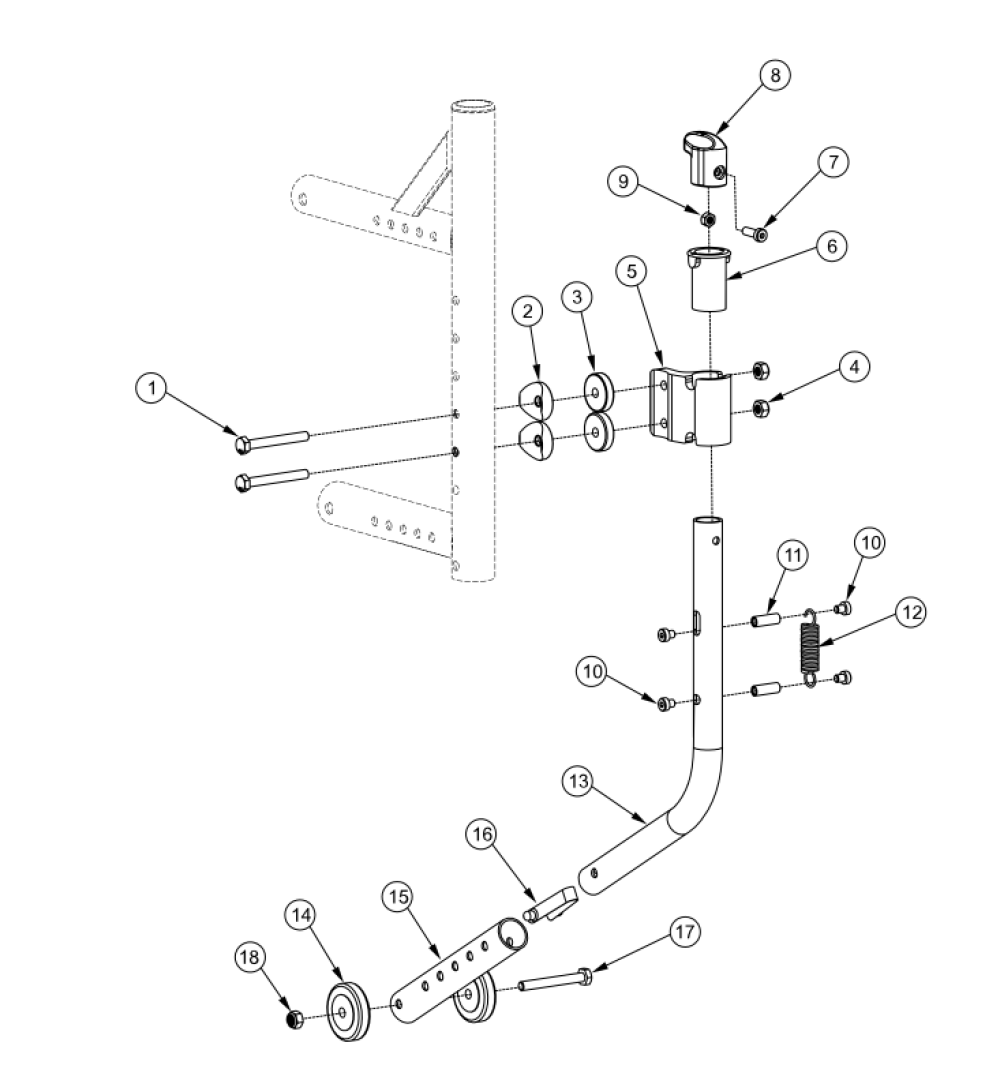

Part Picture
(Click on image to enlarge)
Attachments:
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 1 - 12, 13a, 14, 15a, 16 - 18 | 505428 | Swing-In Anti-Tip Short Assembly, 5VX (PAIR)- Used is rear seat height is less than 16" | Used is rear seat height is less than 16" | $330.94 | EA | |
| 1 - 12, 13c, 14, 15a, 16 - 18 | 505429 | Swing-In Anti-Tip Long Assembly, 5VX (PAIR)- Used if rear seat height is 16" or greater | Used if rear seat height is 16" or greater | $330.94 | EA | |
| 1 - 12, 13b, 14, 15b, 16 - 18 | 505430 | Swing-In Anti-Tip Steel, Short Assembly, Left 5VX- Used if rear seat height is less than 16" and a single Swing-In Anti-Tip is ordered | Used if rear seat height is less than 16" and a single Swing-In Anti-Tip is ordered | $165.47 | EA | |
| 1 - 12, 13b, 14, 15b, 16 - 18 | 109278 | Swing-In Anti-Tip Steel, Short Assembly, Right 5VX- Used if rear seat height is less than 16" and a single Swing-In Anti-Tip is ordered | Used if rear seat height is less than 16" and a single Swing-In Anti-Tip is ordered | $165.47 | EA | |
| 1 - 12, 13d, 14, 15b, 16 - 18 | 505431 | Swing-In Anti-Tip Steel, Long Assembly, Left 5VX- Used if rear seat height is 16" or greater and a single Swing-In Anti-Tip is ordered | Used if rear seat height is 16" or greater and a single Swing-In Anti-Tip is ordered | $165.47 | EA | |
| 1 - 12, 13d, 14, 15b, 16 - 18 | 109279 | Swing-In Anti-Tip Steel, Long Assembly, Right 5VX- Used if rear seat height is 16" or greater and a single Swing-In Anti-Tip is ordered | Used if rear seat height is 16" or greater and a single Swing-In Anti-Tip is ordered | $165.47 | EA | |
| 4, 10 - 12, 13a, 14, 15a, 16 - 18 | 505432 | Swing-In Anti-Tip Short Assembly Replacement, 5VX- Used if rear seat height is less than 16" and a pair of Swing-In Anti-Tips is present on chair | Used if rear seat height is less than 16" and a pair of Swing-In Anti-Tips is present on chair | $75.01 | EA | |
| 4, 10 - 12, 13c, 14, 15a, 16 - 18 | 505433 | Swing-In Anti-Tip Long Assembly Replacement, 5VX- Used if rear seat height is 16" or greater and a pair of Swing-In Anti-Tips is present on chair | Used if rear seat height is 16" or greater and a pair of Swing-In Anti-Tips is present on chair | $75.01 | EA | |
| 4, 10 - 12, 13b, 14, 15b, 16 - 18 | 505434 | Swing-In Anti-Tip Steel Short Assembly Replacement, 5VX- Used if rear seat height is less than 16" and a single Swing-In Anti-Tip is present on chair | Used if rear seat height is less than 16" and a single Swing-In Anti-Tip is present on chair | $75.01 | EA | |
| 4, 10 - 12, 13d, 14, 15b, 16 - 18 | 505435 | Swing-In Anti-Tip Steel Long Assembly Replacement, 5VX- Used if rear seat height is 16" or greater and a single Swing-In Anti-Tip is present on chair | Used if rear seat height is 16" or greater and a single Swing-In Anti-Tip is present on chair | $75.01 | EA | |
| 5 - 9 | 506289 | Catalyst Swing-In Anti-Tip Housing Assembly | $31.22 | EA | ||
| 1a | 100674 | M6 x 45 CLS10.9 DIN931 HHCS ZC | $1.66 | |||
| 1b | 101826 | M6 x 50 HHCS Blk Zn- Used in place of 100674 when Swing Away Arms and Transit are both present on chair | Used in place of 100674 when Swing Away Arms and Transit are both present on chair | $2.21 | EA | |
| 2 | 000056 | Saddle 1 1/8"- Used if Swing Away Arms or Transit is present on chair | Used if Swing Away Arms or Transit is present on chair | $1.66 | ||
| 3 | 003516 | 1.0" OD x 0.25" Thick Spacer Washer- Used if Swing Away Arms and Transit are present on chair in addition to the 000056 saddles | Used if Swing Away Arms and Transit are present on chair in addition to the 000056 saddles | $7.97 | ||
| 4 | 100658 | M6 Nylock Nut Blk Zn | $1.10 | EA | ||
| 5 | 003510INST | Swing In Anti-Tip Housing with Instruction | $23.50 | EA | ||
| 6 | 003511INST | Swing In Anti-Tip Sleeve with Instruction | $2.21 | EA | ||
| 7 | 102801 | M5 x 16, Low SHCS, Blk Zn | $1.66 | EA | ||
| 8 | 003515INST | Swing In Anti-Tip Knob with Instruction | $3.31 | EA | ||
| 9 | 100657 | M5 Nylock Nut Blk Zn | $0.56 | EA | ||
| 10 | 102796 | M5 x 6, Low SHCS, Blk Zn | $4.41 | |||
| 11 | 003518 | M5 x 19mm Threaded Barrel | $5.51 | |||
| 12 | 003514INST | Spring. Ext, .50 OD x 2.0 LG x 050 W with Instruction | $2.21 | EA | ||
| 13a | 003512 | Swing In Anti-Tip Tube Short- Used if rear seat height is less than 16" and a pair of Swing-In Anti-Tips is ordered | Used if rear seat height is less than 16" and a pair of Swing-In Anti-Tips is ordered | $11.04 | EA | |
| 13b | 003523 | Swing In Anti-Tip Tube, Steel, Short- Used if rear seat height is less than 16" and a single Swing-In Anti-Tip is ordered | Used if rear seat height is less than 16" and a single Swing-In Anti-Tip is ordered | $11.04 | EA | |
| 13c | 003513 | Swing In Anti-Tip Tube Long- Used if rear seat height is 16" or greater and a pair of Swing-In Anti-Tips is ordered | Used if rear seat height is 16" or greater and a pair of Swing-In Anti-Tips is ordered | $11.04 | EA | |
| 13d | 003524 | Swing In Anti-Tip Tube, Steel, Long- Used if rear seat height is 16" or greater and a single Swing-In Anti-Tip is ordered | Used if rear seat height is 16" or greater and a single Swing-In Anti-Tip is ordered | $11.04 | EA | |
| 14, 15a, 17, 18 | 112365 | Extension Assembly, Anti-Tip, Long | $26.12 | EA | ||
| 14, 15b, 17, 18 | 112367 | Extension Assembly, Anti-Tip, Long, E-Coat | $24.17 | EA | ||
| 16 | 100534 | Detent Button Lower | $3.77 | EA |
