Catalyst 5vx Rear Frame

Name: Catalyst 5Vx: Catalyst 5vx Rear Frame
Manufacturer: Ki Mobility

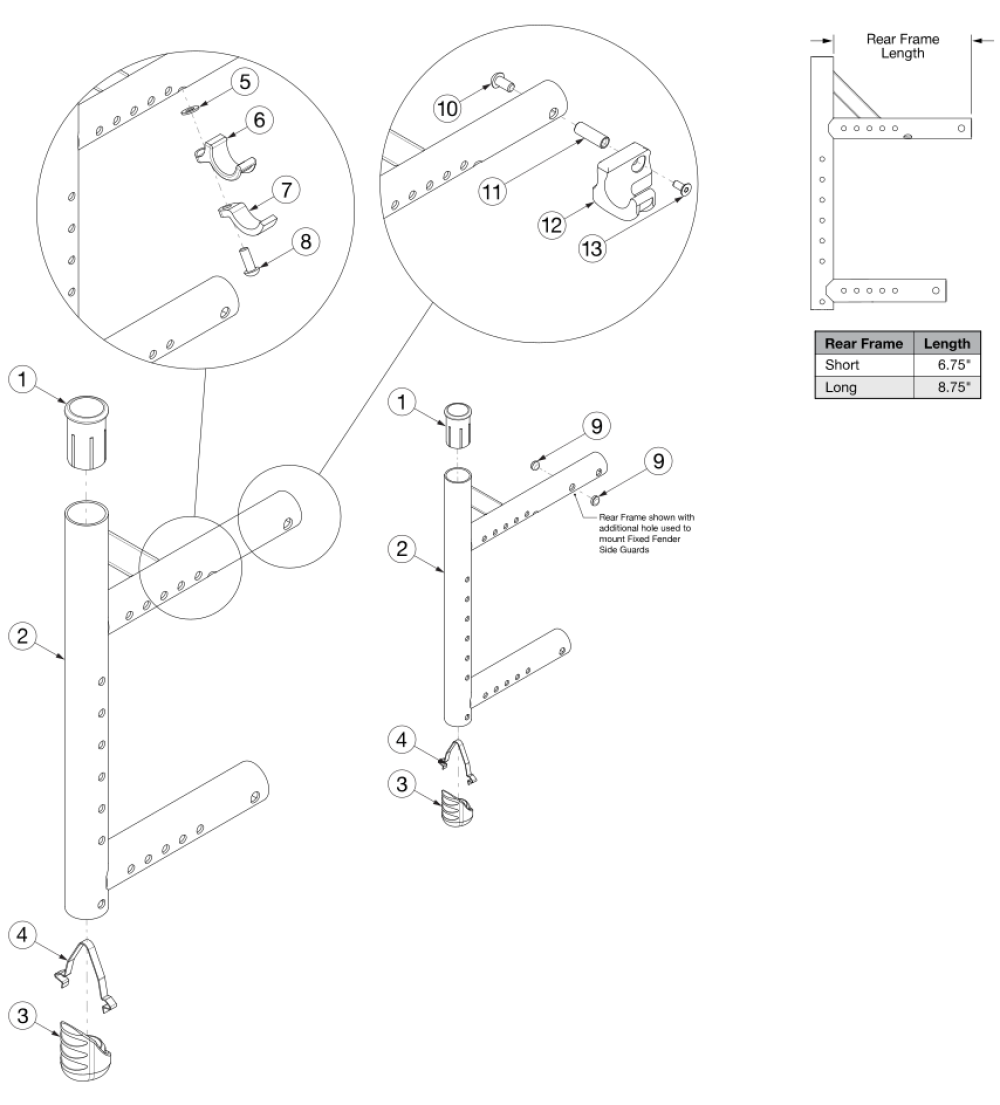

Catalyst 5vx Rear Frame parts diagram
(Click on image to enlarge)


*Use short frame for 14-17" Seat Depths. Use long frame for 18-20" Seat Depths
Pos. Part # Description Price Buy
1a, 2, 3 100267SBM Frame Assm Cat 5VX Rear Left Short Shadow Black SN - Frame Assm Cat 5VX Rear Left Short Price Dependent on Color
$210.74
1a, 2, 3 100267PUR Frame Assm Cat 5VX Rear Left Short Candy Purple SN - Frame Assm Cat 5VX Rear Left Short Price Dependent on Color
$210.74
1a, 2, 3 100267CBL Frame Assm Cat 5VX Rear Left Short Candy Blue SN - Frame Assm Cat 5VX Rear Left Short Price Dependent on Color
$210.74
1a, 2, 3 100267GSM Frame Assm Cat 5VX Rear Left Short Granny Smith SN - Frame Assm Cat 5VX Rear Left Short Price Dependent on Color
$210.74
1a, 2, 3 100267CGM Frame Assm Cat 5VX Rear Left Short Charcoal Gray SN - Frame Assm Cat 5VX Rear Left Short Price Dependent on Color
$210.74
1a, 2, 3 100267SAP Frame Assm Cat 5VX Rear Left Short Sapphire SN - Frame Assm Cat 5VX Rear Left Short Price Dependent on Color
$191.54
1a, 2, 3 100267BLU Frame Assm Cat 5VX Rear Left Short Blue SN - Frame Assm Cat 5VX Rear Left Short Price Dependent on Color
$210.74
1a, 2, 3 100267IBM Frame Assm Cat 5VX Rear Left Short Iridescent Burgundy SN - Frame Assm Cat 5VX Rear Left Short Price Dependent on Color
$210.74
1a, 2, 3 100267GGM Frame Assm Cat 5VX Rear Left Short Graphite Gray SN - Frame Assm Cat 5VX Rear Left Short Price Dependent on Color
$210.74
1a, 2, 3 100267ORG Frame Assm Cat 5VX Rear Left Short Orange SN - Frame Assm Cat 5VX Rear Left Short Price Dependent on Color
$210.74
1a, 2, 3 100267GRY Frame Assm Cat 5VX Rear Left Short Slate Gray SN - Frame Assm Cat 5VX Rear Left Short Price Dependent on Color
$210.74
1a, 2, 3 100267SKY Frame Assm Cat 5VX Rear Left Short Blue Skies SN - Frame Assm Cat 5VX Rear Left Short Price Dependent on Color
$210.74
1a, 2, 3 100267RED Frame Assm Cat 5VX Rear Left Short Candy Red SN - Frame Assm Cat 5VX Rear Left Short Price Dependent on Color
$210.74
1a, 2, 3 100267BRO Frame Assm Cat 5VX Rear Left Short Bright Orange SN - Frame Assm Cat 5VX Rear Left Short Price Dependent on Color
$124.06
1a, 2, 3 100267COP Frame Assm Cat 5VX Rear Left Short Copper SN - Frame Assm Cat 5VX Rear Left Short Price Dependent on Color
$210.74
1a, 2, 3 100267FUS Frame Assm Cat 5VX Rear Left Short Fuchsia SN - Frame Assm Cat 5VX Rear Left Short Price Dependent on Color
$210.74
1a, 2, 3 100267AGM Frame Assm Cat 5VX Rear Left Short Army Green SN - Frame Assm Cat 5VX Rear Left Short Price Dependent on Color
$210.74
1a, 2, 3 100267RRM Frame Assm Cat 5VX Rear Left Shor Retro Red SN - Frame Assm Cat 5VX Rear Left Short Price Dependent on Color
$210.74
1a, 2, 3 100267BUR Frame Assm Cat 5VX Rear Left Short Burgundy SN - Frame Assm Cat 5VX Rear Left Short Price Dependent on Color
$210.74
1a, 2, 3 100267PNK Frame Assm Cat 5VX Rear Left Short Bubblegum Pink SN - Frame Assm Cat 5VX Rear Left Short Price Dependent on Color
$210.74
1a, 2, 3 100267INM Frame Assm Cat 5VX Rear Left Short Iridescent Navy SN - Frame Assm Cat 5VX Rear Left Short Price Dependent on Color
$210.74
1a, 2, 3 100267FLM Frame Assm Cat 5VX Rear Left Short Graphic Image Transfer SN - Frame Assm Cat 5VX Rear Left Short Price Dependent on Color
$322.44
1a, 2, 3 100267EBL Frame Assm Cat 5VX Rear Left Short Electric Blue SN - Frame Assm Cat 5VX Rear Left Short Price Dependent on Color
$210.74
1a, 2, 3 100267GRN Frame Assm Cat 5VX Rear Left Short Forest Green SN - Frame Assm Cat 5VX Rear Left Short Price Dependent on Color
$210.74
1a, 2, 3 100267SWM Frame Assm Cat 5VX Rear Left Short Smooth White SN - Frame Assm Cat 5VX Rear Left Short Price Dependent on Color
$210.74
1a, 2, 3 100267EGM Frame Assm Cat 5VX Rear Left Short Emerald Green SN - Frame Assm Cat 5VX Rear Left Short Price Dependent on Color
$210.74
1a, 2, 3 100267BLK Frame Assm Cat 5VX Rear Left Short Black SN - Frame Assm Cat 5VX Rear Left Short Price Dependent on Color
$210.74
1a, 2, 3 100267RBM Frame Assm Cat 5VX Rear Left Short Royal Blue SN - Frame Assm Cat 5VX Rear Left Short Price Dependent on Color
$210.74
1b, 2, 3 100269CGM Frame Assm Cat 5VX Rear Left Long Charcoal Gray SN - Frame Assm Cat 5VX Rear Left Long
$210.74
1b, 2, 3 100269INM Frame Assm Cat 5VX Rear Left Long Iridescent Navy SN - Frame Assm Cat 5VX Rear Left Long
$210.74
1b, 2, 3 100269EGM Frame Assm Cat 5VX Rear Left Long Emerald Green SN - Frame Assm Cat 5VX Rear Left Long
$210.74
1b, 2, 3 100269BUR Frame Assm Cat 5VX Rear Left Long Burgundy SN - Frame Assm Cat 5VX Rear Left Long
$210.74
1b, 2, 3 100269AGM Frame Assm Cat 5VX Rear Left Long Army Green SN - Frame Assm Cat 5VX Rear Left Long
$210.74
1b, 2, 3 100269SAP Frame Assm Cat 5VX Rear Left Long Sapphire SN - Frame Assm Cat 5VX Rear Left Long
$210.74
1b, 2, 3 100269SBM Frame Assm Cat 5VX Rear Left Long Shadow Black SN - Frame Assm Cat 5VX Rear Left Long
$210.74
1b, 2, 3 100269BRO Frame Assm Cat 5VX Rear Left Long Bright Orange SN - Frame Assm Cat 5VX Rear Left Long
$124.06
1b, 2, 3 100269GRN Frame Assm Cat 5VX Rear Left Long Forest Green SN - Frame Assm Cat 5VX Rear Left Long
$210.74
1b, 2, 3 100269RBM Frame Assm Cat 5VX Rear Left Long Royal Blue SN - Frame Assm Cat 5VX Rear Left Long
$210.74
1b, 2, 3 100269GSM Frame Assm Cat 5VX Rear Left Long Granny Smith SN - Frame Assm Cat 5VX Rear Left Long
$210.74
1b, 2, 3 100269PUR Frame Assm Cat 5VX Rear Left Long Candy Purple SN - Frame Assm Cat 5VX Rear Left Long
$210.74
1b, 2, 3 100269COP Frame Assm Cat 5VX Rear Left Long Copper SN - Frame Assm Cat 5VX Rear Left Long
$210.74
1b, 2, 3 100269PNK Frame Assm Cat 5VX Rear Left Long Bubblegum Pink SN - Frame Assm Cat 5VX Rear Left Long
$210.74
1b, 2, 3 100269EBL Frame Assm Cat 5VX Rear Left Long Electric Blue SN - Frame Assm Cat 5VX Rear Left Long
$210.74
1b, 2, 3 100269GGM Frame Assm Cat 5VX Rear Left Long Graphite Gray SN - Frame Assm Cat 5VX Rear Left Long
$210.74
1b, 2, 3 100269FUS Frame Assm Cat 5VX Rear Left Long Fuchsia SN - Frame Assm Cat 5VX Rear Left Long
$210.74
1b, 2, 3 100269RED Frame Assm Cat 5VX Rear Left Long Candy Red SN - Frame Assm Cat 5VX Rear Left Long
$210.74
1b, 2, 3 100269IBM Frame Assm Cat 5VX Rear Left Long Iridescent Burgundy SN - Frame Assm Cat 5VX Rear Left Long
$210.74
1b, 2, 3 100269GRY Frame Assm Cat 5VX Rear Left Long Slate Gray SN - Frame Assm Cat 5VX Rear Left Long
$210.74
1b, 2, 3 100269SKY Frame Assm Cat 5VX Rear Left Long Blue Skies SN - Frame Assm Cat 5VX Rear Left Long
$210.74
1b, 2, 3 100269RRM Frame Assm Cat 5VX Rear Left Long Retro Red SN - Frame Assm Cat 5VX Rear Left Long
$210.74
1b, 2, 3 100269SWM Frame Assm Cat 5VX Rear Left Long Smooth White SN - Frame Assm Cat 5VX Rear Left Long
$210.74
1b, 2, 3 100269FLM Frame Assm Cat 5VX Rear Left Long Graphic Image Transfer SN - Frame Assm Cat 5VX Rear Left Long
$322.44
1b, 2, 3 100269CBL Frame Assm Cat 5VX Rear Left Long Candy Blue SN - Frame Assm Cat 5VX Rear Left Long
$210.74
1b, 2, 3 100269ORG Frame Assm Cat 5VX Rear Left Long Orange SN - Frame Assm Cat 5VX Rear Left Long
$210.74
1b, 2, 3 100269BLK Frame Assm Cat 5VX Rear Left Long Black SN - Frame Assm Cat 5VX Rear Left Long
$210.74
1b, 2, 3 100269BLU Frame Assm Cat 5VX Rear Left Long Blue SN - Frame Assm Cat 5VX Rear Left Long
$210.74
1c, 2, 3 100266IBM Frame Assm Cat 5VX Rear Right Short Iridescent Burgundy - Frame Assm Cat 5VX Rear Right Short
$210.74
1c, 2, 3 100266CBL Frame Assm Cat 5VX Rear Right Short Candy Blue - Frame Assm Cat 5VX Rear Right Short
$210.74
1c, 2, 3 100266BUR Frame Assm Cat 5VX Rear Right Short Burgundy - Frame Assm Cat 5VX Rear Right Short
$210.74
1c, 2, 3 100266SAP Frame Assm Cat 5VX Rear Right Short Sapphire - Frame Assm Cat 5VX Rear Right Short
$210.74
1c, 2, 3 100266RRM Frame Assm Cat 5VX Rear Right Short Retro Red - Frame Assm Cat 5VX Rear Right Short
$210.74
1c, 2, 3 100266CGM Frame Assm Cat 5VX Rear Right Short Charcoal Gray - Frame Assm Cat 5VX Rear Right Short
$210.74
1c, 2, 3 100266SKY Frame Assm Cat 5VX Rear Right Short Blue Skies - Frame Assm Cat 5VX Rear Right Short
$210.74
1c, 2, 3 100266INM Frame Assm Cat 5VX Rear Right Short Iridescent Navy - Frame Assm Cat 5VX Rear Right Short
$210.74
1c, 2, 3 100266BLK Frame Assm Cat 5VX Rear Right Short Black - Frame Assm Cat 5VX Rear Right Short
$210.74
1c, 2, 3 100266GGM Frame Assm Cat 5VX Rear Right Short Graphite Gray - Frame Assm Cat 5VX Rear Right Short
$210.74
1c, 2, 3 100266BLU Frame Assm Cat 5VX Rear Right Short Blue - Frame Assm Cat 5VX Rear Right Short
$210.74
1c, 2, 3 100266FUS Frame Assm Cat 5VX Rear Right Short Fuchsia - Frame Assm Cat 5VX Rear Right Short
$210.74
1c, 2, 3 100266EBL Frame Assm Cat 5VX Rear Right Short Electric Blue - Frame Assm Cat 5VX Rear Right Short
$210.74
1c, 2, 3 100266PUR Frame Assm Cat 5VX Rear Right Short Candy Purple - Frame Assm Cat 5VX Rear Right Short
$210.74
1c, 2, 3 100266ORG Frame Assm Cat 5VX Rear Right Short Orange - Frame Assm Cat 5VX Rear Right Short
$210.74
1c, 2, 3 100266COP Frame Assm Cat 5VX Rear Right Short Copper - Frame Assm Cat 5VX Rear Right Short
$210.74
1c, 2, 3 100266SWM Frame Assm Cat 5VX Rear Right Short Smooth White - Frame Assm Cat 5VX Rear Right Short
$210.74
1c, 2, 3 100266RBM Frame Assm Cat 5VX Rear Right Short Royal Blue - Frame Assm Cat 5VX Rear Right Short
$210.74
1c, 2, 3 100266AGM Frame Assm Cat 5VX Rear Right Short Army Green - Frame Assm Cat 5VX Rear Right Short
$210.74
1c, 2, 3 100266GSM Frame Assm Cat 5VX Rear Right Short Granny Smith - Frame Assm Cat 5VX Rear Right Short
$210.74
1c, 2, 3 100266GRN Frame Assm Cat 5VX Rear Right Short Forest Green - Frame Assm Cat 5VX Rear Right Short
$210.74
1c, 2, 3 100266EGM Frame Assm Cat 5VX Rear Right Short Emerald Green - Frame Assm Cat 5VX Rear Right Short
$210.74
1c, 2, 3 100266FLM Frame Assm Cat 5VX Rear Right Short Graphic Image Transfer - Frame Assm Cat 5VX Rear Right Short
$322.44
1c, 2, 3 100266SBM Frame Assm Cat 5VX Rear Right Short Shadow Black - Frame Assm Cat 5VX Rear Right Short
$210.74
1c, 2, 3 100266BRO Frame Assm Cat 5VX Rear Right Short Bright Orange - Frame Assm Cat 5VX Rear Right Short
$124.06
1c, 2, 3 100266RED Frame Assm Cat 5VX Rear Right Short Candy Red - Frame Assm Cat 5VX Rear Right Short
$210.74
1c, 2, 3 100266PNK Frame Assm Cat 5VX Rear Right Short Bubblegum Pink - Frame Assm Cat 5VX Rear Right Short
$210.74
1c, 2, 3 100266GRY Frame Assm Cat 5VX Rear Right Short Slate Gray - Frame Assm Cat 5VX Rear Right Short
$210.74
1d, 2, 3 100268BLK Frame Assm Cat 5VX Rear Right Long Black - Frame Assm Cat 5VX Rear Right Long
$210.74
1d, 2, 3 100268SAP Frame Assm Cat 5VX Rear Right Long Sapphire - Frame Assm Cat 5VX Rear Right Long
$210.74
1d, 2, 3 100268INM Frame Assm Cat 5VX Rear Right Long Iridescent Navy - Frame Assm Cat 5VX Rear Right Long
$210.74
1d, 2, 3 100268SWM Frame Assm Cat 5VX Rear Right Long Smooth White - Frame Assm Cat 5VX Rear Right Long
$210.74
1d, 2, 3 100268RBM Frame Assm Cat 5VX Rear Right Long Royal Blue - Frame Assm Cat 5VX Rear Right Long
$210.74
1d, 2, 3 100268IBM Frame Assm Cat 5VX Rear Right Long Iridescent Burgundy - Frame Assm Cat 5VX Rear Right Long
$210.74
1d, 2, 3 100268EBL Frame Assm Cat 5VX Rear Right Long Electric Blue - Frame Assm Cat 5VX Rear Right Long
$210.74
1d, 2, 3 100268RED Frame Assm Cat 5VX Rear Right Long Candy Red - Frame Assm Cat 5VX Rear Right Long
$210.74
1d, 2, 3 100268GSM Frame Assm Cat 5VX Rear Right Long Granny Smith - Frame Assm Cat 5VX Rear Right Long
$210.74
1d, 2, 3 100268SKY Frame Assm Cat 5VX Rear Right Long Blue Skies - Frame Assm Cat 5VX Rear Right Long
$210.74
1d, 2, 3 100268BRO Frame Assm Cat 5VX Rear Right Long Bright Orange - Frame Assm Cat 5VX Rear Right Long
$124.06
1d, 2, 3 100268BUR Frame Assm Cat 5VX Rear Right Long Burgundy - Frame Assm Cat 5VX Rear Right Long
$210.74
1d, 2, 3 100268GRY Frame Assm Cat 5VX Rear Right Long Slate Gray - Frame Assm Cat 5VX Rear Right Long
$210.74
1d, 2, 3 100268SBM Frame Assm Cat 5VX Rear Right Long Shadow Black - Frame Assm Cat 5VX Rear Right Long
$210.74
1d, 2, 3 100268CBL Frame Assm Cat 5VX Rear Right Long Candy Blue - Frame Assm Cat 5VX Rear Right Long
$210.74
1d, 2, 3 100268PNK Frame Assm Cat 5VX Rear Right Long Bubblegum Pink - Frame Assm Cat 5VX Rear Right Long
$210.74
1d, 2, 3 100268EGM Frame Assm Cat 5VX Rear Right Long Emerald Green - Frame Assm Cat 5VX Rear Right Long
$210.74
1d, 2, 3 100268GGM Frame Assm Cat 5VX Rear Right Long Graphite Gray - Frame Assm Cat 5VX Rear Right Long
$210.74
1d, 2, 3 100268CGM Frame Assm Cat 5VX Rear Right Long Charcoal Gray - Frame Assm Cat 5VX Rear Right Long
$210.74
1d, 2, 3 100268BLU Frame Assm Cat 5VX Rear Right Long BLU - Frame Assm Cat 5VX Rear Right Long
$210.74
1d, 2, 3 100268COP Frame Assm Cat 5VX Rear Right Long Copper - Frame Assm Cat 5VX Rear Right Long
$210.74
1d, 2, 3 100268AGM Frame Assm Cat 5VX Rear Right Long Army Green - Frame Assm Cat 5VX Rear Right Long
$210.74
1d, 2, 3 100268RRM Frame Assm Cat 5VX Rear Right Long Retro Red - Frame Assm Cat 5VX Rear Right Long
$210.74
1d, 2, 3 100268GRN Frame Assm Cat 5VX Rear Right Long Forest Green - Frame Assm Cat 5VX Rear Right Long
$210.74
1d, 2, 3 100268ORG Frame Assm Cat 5VX Rear Right Long Orange - Frame Assm Cat 5VX Rear Right Long
$210.74
1d, 2, 3 100268FLM Frame Assm Cat 5VX Rear Right Long Graphic Image Transfer - Frame Assm Cat 5VX Rear Right Long
$322.44
1d, 2, 3 100268FUS Frame Assm Cat 5VX Rear Right Long Fuchsia - Frame Assm Cat 5VX Rear Right Long
$210.74
1d, 2, 3 100268PUR Frame Assm Cat 5VX Rear Right Long Candy Purple - Frame Assm Cat 5VX Rear Right Long
$210.74
2 000030 Backrest Sleeve Cat
$3.35
3 100532 Tube End Plug 1 1/8"
$2.50
4 100831 1/2" washer OD .040" thick
$1.50
5 000003 Seat Hook CAT
$7.33
6 000004 Seat Hook Support CAT
$6.23
7 100668 M6 x 20 CLS10.9 BTN SHCS ZC w/Patch
$1.50
4, 5, 6, 7 501005 Seat Hook and Support Hardware Kit, Catalyst- This kit contains quantity of 1 each
$16.56
