Catalyst 5vx
Name: Catalyst 5Vx: Catalyst 5 Cross Braces - Open Seating (seating System)
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility

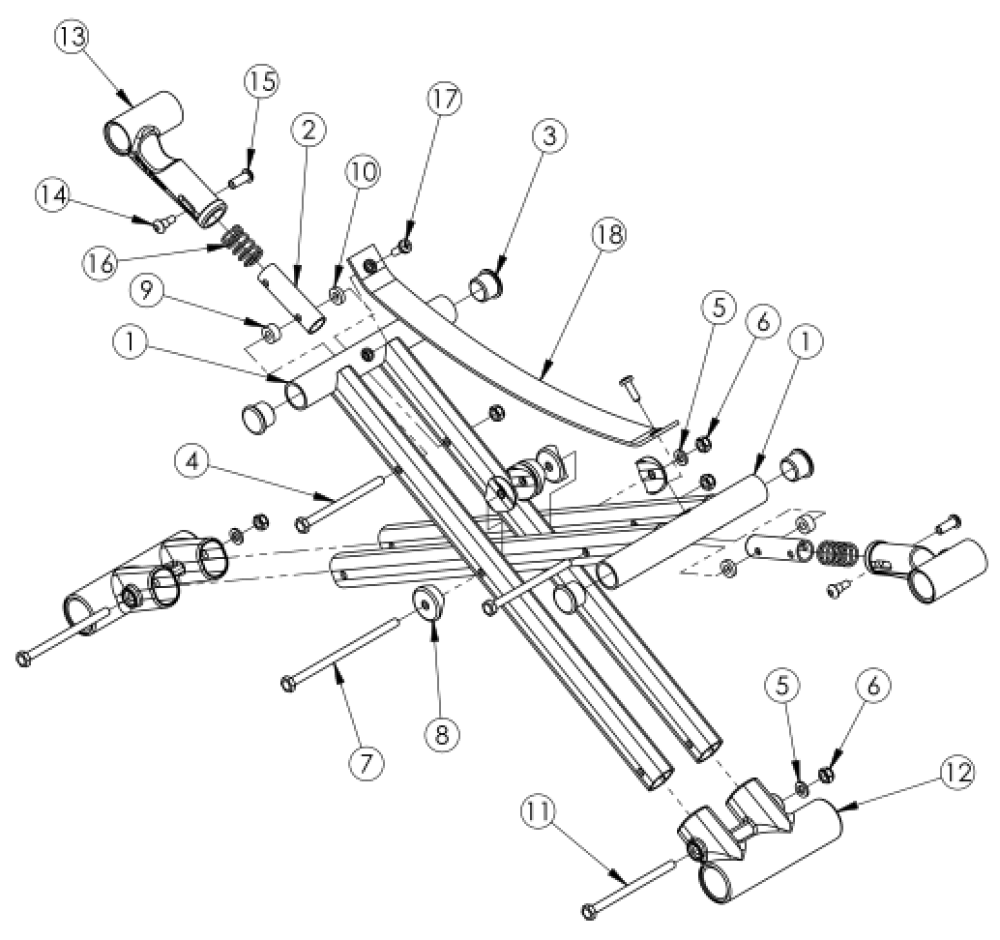

Part Picture
(Click on image to enlarge)
Pictured oval-style cross braces effective 6/15/16 on 14" - 22" wide chairs starting with serial numbers C5032544, C5037980, C5HD002834 and CVX0091137.
When changing from round-style to oval-style cross braces, lower frame pivots and cross brace hardware are required. Order kit 502177.
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 2a, 13a, 14 - 16 | 500024 | Upper Pivot Assembly 14" Width | $47.01 | EA | ||
| 2b, 13b, 14 - 16 | 500025 | Upper Pivot Assembly 15" Width | $47.01 | EA | ||
| 2c, 13b, 14 - 16 | 500026 | Upper Pivot Assembly 16" Width | $47.01 | EA | ||
| 2d, 13b, 14 - 16 | 500027 | Upper Pivot Assembly 17" Width | $47.01 | EA | ||
| 2e, 13b, 14 - 16 | 500028 | Upper Pivot Assembly 18" Width | $47.01 | EA | ||
| 2f, 13b, 14 - 16 | 500029 | Upper Pivot Assembly 19" Width | $47.01 | EA | ||
| 2g, 13b, 14 - 16 | 500030 | Upper Pivot Assembly 20" Width | $47.01 | EA | ||
| 2h, 13b, 14 - 16 | 501479 | Upper Pivot Assembly 21/22" Width | $47.01 | EA | ||
| 4 - 8, 11, 12 | 107296 | Lower Frame Pivot and Catalyst Oval-Style Cross Brace Hardware Kit 14" Wide (Pair) | $39.43 | EA | ||
| 4 - 12 | 502177 | Lower Frame Pivot and Catalyst Oval-Style Cross Brace Hardware Kit (Pair) | $47.22 | EA | ||
| 1a, 3 | 003353 | Seating System Cross Brace 14" Wide CAT | $158.10 | EA | ||
| 1b, 3 | 003354 | Seating System Cross Brace 15" Wide CAT | $158.10 | EA | ||
| 1c, 3 | 003355 | Seating System Cross Brace 16" Wide CAT | $158.10 | EA | ||
| 1d, 3 | 003356 | Seating System Cross Brace 17" Wide CAT | $158.10 | EA | ||
| 1f, 3 | 003357 | Seating System Cross Brace 18" Wide CAT | $158.10 | EA | ||
| 1g, 3 | 003358 | Seating System Cross Brace 19" Wide CAT | $158.10 | EA | ||
| 1h, 3 | 003359 | Seating System Cross Brace 20" Wide CAT | $158.10 | EA | ||
| 1i, 3 | 003360 | Seating System Cross Brace 21" Wide CAT | $158.10 | EA | ||
| 1j, 3 | 003361 | Seating System Cross Brace 22" Wide CAT | $158.10 | EA | ||
| 3 | 101162 | 7/8 OD End Plug BLK | $1.80 | |||
| 4 | 100660 | M6 x 80mm CLS8.8 DIN931 HHCS ZC | $1.66 | |||
| 5 | 100746 | M6 Flat Washer Blk Zn | $1.66 | EA | ||
| 6 | 100658 | M6 Nylock Nut Blk Zn | $1.10 | EA | ||
| 7 | 100678 | M6 x 110 CLS8.8 DIN931 HHCS ZC | $2.76 | EA | ||
| 8 | 002807 | Cross Tube Saddle CAT | $1.66 | |||
| 9 | 100880 | 1/4" Plastic Spacer- Not used on 14" wide chairs | Not used on 14" wide chairs | $2.76 | ||
| 10 | 105019 | 3/16" Plastic Spacer- Not used on 14" wide chairs | Not used on 14" wide chairs | $0.56 | ||
| 11 | 100704 | M6 x 90 CLS8.8 DIN931 HHCS ZC | $1.66 | EA | ||
| 4 - 11 | 503320 | Catalyst Cross Brace Hardware Kit | $25.16 | EA | ||
| 12 | 002806 | Lower Frame Pivot CAT | $11.04 | EA | ||
| 17 | 100734 | M5 x 16 PHMS ZC | $1.66 | EA | ||
| 18a | 200233 | Seat Strap Open Frame 14" Wide CAT | $6.62 | EA | ||
| 18b | 200234 | Seat Strap Open Frame 15" Wide CAT | $6.62 | EA | ||
| 18c | 200235 | Seat Strap Open Frame 16/21" Wide CAT | $6.62 | EA | ||
| 18d | 200236 | Seat Strap Open Frame 17/22" Wide CAT | $6.62 | EA | ||
| 18e | 200237 | Seat Strap Open Frame 18" Wide CAT | $6.62 | EA | ||
| 18f | 200238 | Seat Strap Open Frame 19" Wide CAT | $6.62 | EA | ||
| 18g | 200239 | Seat Strap Open Frame 20" Wide CAT | $6.62 | EA |
