Catalyst 5

Name: Catalyst 5: Catalyst 70 Degree Fixed Front Frame
Manufacturer: Ki Mobility

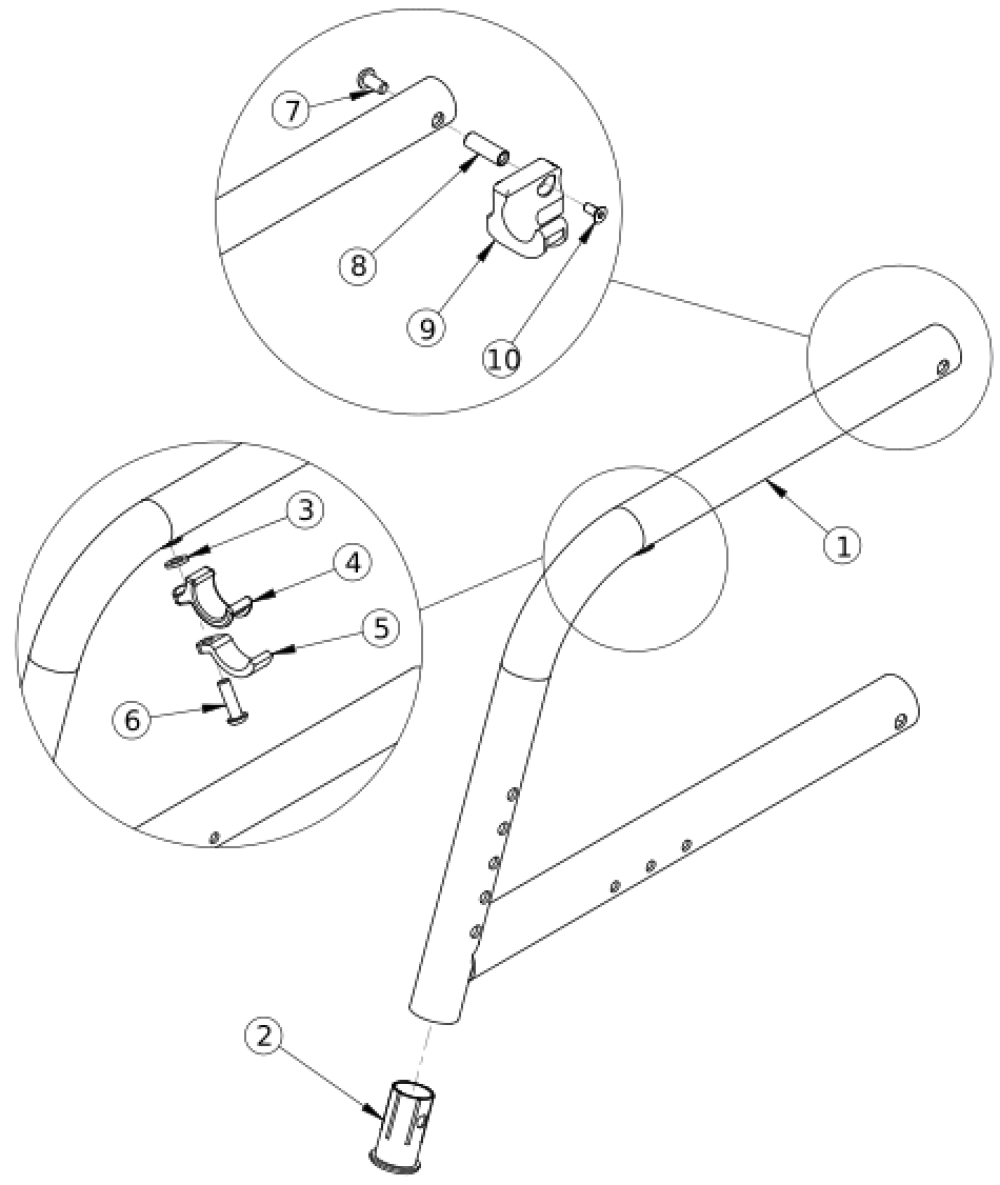

Catalyst 70 Degree Fixed Front Frame parts diagram
(Click on image to enlarge)

Pos. Part # Description Price UOM Buy
3, 4, 5, 6a 501005 Seat Hook and Support Hardware Kit, Standard, Catalyst- Used with Standard Weight Capacity. This kit contains quantity of 1 each
$19.48
EA
3, 4, 5, 6b 114528 Seat Hook and Support Hardware Kit, Standard, for Heavy Duty Catalyst- Used with Heavy Duty / 350 lbs Weight Capacity. This kit contains quantity of 1 each
$20.07
EA
7, 8, 9a, 10 111569 Seat Hook and Support Hardware Kit Seating System Right Front Frame / Left Rear Frame Catalyst- This kit contains quantity of 1 each
$33.09
EA
7, 8, 9b, 10 111570 Seat Hook and Support Hardware Kit, Seating System Left Front Frame / Right Rear Frame Catalyst- This kit contains quantity of 1 each
$33.09
EA
1a, 2 100138_ _ _ Frame Assm Cat Front Fixed 70 Left 14 _ _ _ N/A EA Please Call
1b, 2 100139_ _ _ Frame Assm Cat Front Fixed 70 Left 15 _ _ _ N/A EA Please Call
1c, 2 100140_ _ _ Frame Assm Cat Front Fixed 70 Left 16 _ _ _ N/A EA Please Call
1d, 2 100141_ _ _ Frame Assm Cat Front Fixed 70 Left 17 _ _ _ N/A EA Please Call
1e, 2 501613_ _ _ Frame Assm Cat Front Fixed 70 Left 18 _ _ _ N/A EA Please Call
1f, 2 501614_ _ _ Frame Assm Cat Front Fixed 70 Left 19 _ _ _ N/A EA Please Call
1g, 2 100142_ _ _ Frame Assm Cat Front Fixed 70 Left 20 _ _ _ N/A EA Please Call
1h, 2 100175_ _ _ Frame Assm Cat Front Fixed 70 Right 14 _ _ _ N/A EA Please Call
1i, 2 100176_ _ _ Frame Assm Cat Front Fixed 70 Right 15 _ _ _ N/A EA Please Call
1j, 2 100177_ _ _ Frame Assm Cat Front Fixed 70 Right 16 _ _ _ N/A EA Please Call
1k, 2 100178_ _ _ Frame Assm Cat Front Fixed 70 Right 17 _ _ _ N/A EA Please Call
1l, 2 501615_ _ _ Frame Assm Cat Front Fixed 70 Right 18 _ _ _ N/A EA Please Call
1m, 2 501616_ _ _ Frame Assm Cat Front Fixed 70 Right 19 _ _ _ N/A EA Please Call
1n, 2 100179_ _ _ Frame Assm Cat Front Fixed 70 Right 20 _ _ _ N/A EA Please Call
1c, 2 114310_ _ _ Frame Assm Cat Front with Flip Back Arm Modification Fixed 70 Left 16 _ _ _ N/A EA Please Call
1d, 2 114311_ _ _ Frame Assm Cat Front with Flip Back Arm Modification Fixed 70 Left 17 _ _ _ N/A EA Please Call
1e, 2 114351_ _ _ Frame Assm Cat Front with Flip Back Arm Modification Fixed 70 Left 18 _ _ _ N/A EA Please Call
1f, 2 114352_ _ _ Frame Assm Cat Front with Flip Back Arm Modification Fixed 70 Left 19 _ _ _ N/A EA Please Call
1g, 2 114312_ _ _ Frame Assm Cat Front with Flip Back Arm Modification Fixed 70 Left 20 _ _ _ N/A EA Please Call
1j, 2 114320_ _ _ Frame Assm Cat Front with Flip Back Arm Modification Fixed 70 Right 16 _ _ _ N/A EA Please Call
1k, 2 114321_ _ _ Frame Assm Cat Front with Flip Back Arm Modification Fixed 70 Right 17 _ _ _ N/A EA Please Call
1l, 2 114353_ _ _ Frame Assm Cat Front with Flip Back Arm Modification Fixed 70 Right 18 _ _ _ N/A EA Please Call
1m, 2 114354_ _ _ Frame Assm Cat Front with Flip Back Arm Modification Fixed 70 Right 19 _ _ _ N/A EA Please Call
1n, 2 114322_ _ _ Frame Assm Cat Front with Flip Back Arm Modification Fixed 70 Right 20 _ _ _ N/A EA Please Call
2 000034 Sleeve 3/4" x 1 1/2"
$4.10
EA
3 100831 1/2" Washer OD .040" Thick
$1.77
EA
4 000003 Seat Hook, Catalyst
$8.62
EA
5 000004 Seat Hook Support, Catalyst
$7.34
EA
6a 100668 M6 x 20 CLS10.9 BTN SHCS ZC w/Patch- Used with Standard Weight Capacity
$1.77
EA
6b 101180 M6 x 20 SHCS BLK ZC- Used with Heavy Duty / 350 lbs Weight Capacity
$2.36
EA
7 100667 M6 x 12 BTN SHCS BLKZC w/Patch
$1.77
EA
8 000065 M6 x 23.68 Threaded Barrel
$4.63
EA
9a 000960R Seat Hook Open Frame Right Front Frame / Left Rear Frame, Catalyst
$24.35
EA
9b 000960L Seat Hook Open Frame Left Front Frame / Right Rear Frame, Catalyst
$24.35
EA
10 101594 M6 x 14 CLS10.9 DIN7991 FSHCS BLKZC w/Patch
$2.36
EA
