Catalyst 5

Name: Catalyst 5: Catalyst Height Adjustable Straight With Push Handle (depth Adjustable)
Manufacturer: Ki Mobility

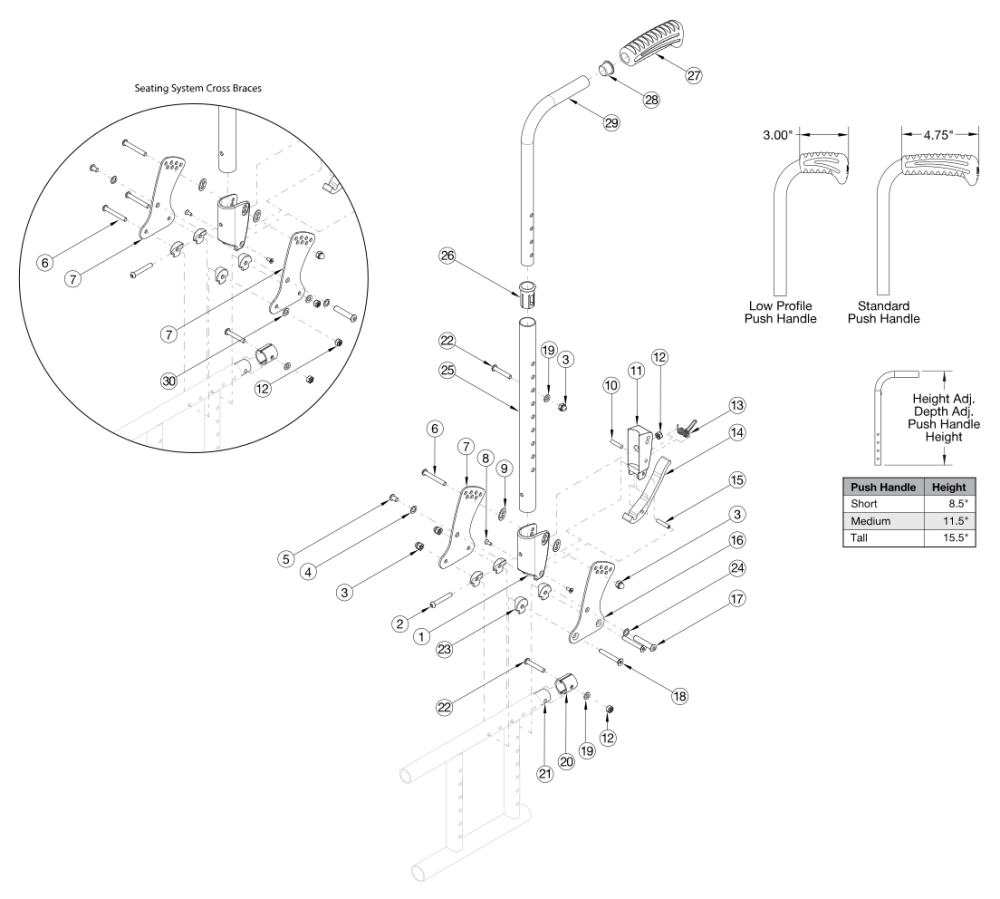

Catalyst Height Adjustable Straight With Push Handle (depth Adjustable) parts diagram
(Click on image to enlarge)

This backrest style was released February 8th, 2021 Low Profile Push Handles are not available with Heavy Duty Option or Drum Brake If the Drum Brake is present, see Drum Brake page for back Cane replacements
Pos. Part # Description Price UOM Buy
1 - 15, 16a, 17 - 20, 22 - 24, 25a, 26, 27a, 28, 29a 112616 Height Adjustable Straight with Push Handle Assembly, Short, Standard Grip, Attaching Hardware for Std Cross Braces, Left
$282.65
EA
1 - 15, 16b, 17 - 20, 22 - 24, 25a, 26, 27a, 28, 29a 112617 Height Adjustable Straight with Push Handle Assembly, Short, Standard Grip, Attaching Hardware for Std Cross Braces, Right
$282.65
EA
1 - 15, 16a, 17 - 20, 22 - 24, 25b, 26, 27a, 28, 29b 112618 Height Adjustable Straight with Push Handle Assembly, Medium, Standard Grip, Attaching Hardware for Std Cross Braces, Left
$282.65
EA
1 - 15, 16b, 17 - 20, 22 - 24, 25b, 26, 27a, 28, 29b 112619 Height Adjustable Straight with Push Handle Assembly, Medium, Standard Grip, Attaching Hardware for Std Cross Braces, Right
$282.65
EA
1 - 15, 16a, 17 - 20, 22 - 24, 25b, 26, 27a, 28, 29c 112620 Height Adjustable Straight with Push Handle Assembly, Tall, Standard Grip, Attaching Hardware for Std Cross Braces, Left
$282.65
EA
1 - 15, 16b, 17 - 20, 22 - 24, 25b, 26, 27a, 28, 29c 112621 Height Adjustable Straight with Push Handle Assembly, Tall, Standard Grip, Attaching Hardware for Std Cross Braces, Right
$282.65
EA
1 - 15, 16a, 17 - 20, 22 - 24, 25a, 26, 27b, 28, 29a 112622 Height Adjustable Straight with Push Handle Assembly, Short, Low Profile Grip, Attaching Hardware for Std Cross Braces, Left
$282.65
EA
1 - 15, 16b, 17 - 20, 22 - 24, 25a, 26, 27b, 28, 29a 112623 Height Adjustable Straight with Push Handle Assembly, Short, Low Profile Grip, Attaching Hardware for Std Cross Braces, Right
$282.65
EA
1 - 15, 16a, 17 - 20, 22 - 24, 25b, 26, 27b, 28, 29b 112624 Height Adjustable Straight with Push Handle Assembly, Medium, Low Profile Grip, Attaching Hardware for Std Cross Braces, Left
$282.65
EA
1 - 15, 16b, 17 - 20, 22 - 24, 25b, 26, 27b, 28, 29b 112625 Height Adjustable Straight with Push Handle Assembly, Medium, Low Profile Grip, Attaching Hardware for Std Cross Braces, Right
$282.65
EA
1 - 15, 16a, 17 - 20, 22 - 24, 25b, 26, 27b, 28, 29c 112626 Height Adjustable Straight with Push Handle Assembly, Tall, Low Profile Grip, Attaching Hardware for Std Cross Braces, Left
$282.65
EA
1 - 15, 16b, 17 - 20, 22 - 24, 25b, 26, 27b, 28, 29c 112627 Height Adjustable Straight with Push Handle Assembly, Tall, Low Profile Grip, Attaching Hardware for Std Cross Braces, Right
$282.65
EA
1 - 15, 17 - 20, 22, 23, 25a, 26, 27a, 28, 29a, 30 112628 Height Adjustable Straight with Push Handle Assembly, Short, Standard Grip, Attaching Hardware for Seating Cross Braces, One Side
$287.94
EA
1 - 15, 17 - 20, 22, 23, 25a, 26, 27a, 28, 29a, 30 112629 Height Adjustable Straight with Push Handle Assembly, Short, Standard Grip, Attaching Hardware for Seating Cross Braces, PAIR
$575.89
EA
1 - 15, 17 - 20, 22, 23, 25b, 26, 27a, 28, 29b, 30 112630 Height Adjustable Straight with Push Handle Assembly, Medium, Standard Grip, Attaching Hardware for Seating Cross Braces, One Side
$287.94
EA
1 - 15, 17 - 20, 22, 23, 25b, 26, 27a, 28, 29b, 30 112631 Height Adjustable Straight with Push Handle Assembly, Medium, Standard Grip, Attaching Hardware for Seating Cross Braces, PAIR
$575.89
EA
1 - 15, 17 - 20, 22, 23, 25b, 26, 27a, 28, 29c, 30 112632 Height Adjustable Straight with Push Handle Assembly, Tall, Standard Grip, Attaching Hardware for Seating Cross Braces, One Side
$287.94
EA
1 - 15, 17 - 20, 22, 23, 25b, 26, 27a, 28, 29c, 30 112633 Height Adjustable Straight with Push Handle Assembly, Tall, Standard Grip, Attaching Hardware for Seating Cross Braces, PAIR
$575.89
EA
1 - 15, 17 - 20, 22, 23, 25a, 26, 27b, 28, 29a, 30 112634 Height Adjustable Straight with Push Handle Assembly, Short, Low Profile Grip, Attaching Hardware for Seating Cross Braces, One Side
$287.94
EA
1 - 15, 17 - 20, 22, 23, 25a, 26, 27b, 28, 29a, 30 112635 Height Adjustable Straight with Push Handle Assembly, Short, Low Profile Grip, Attaching Hardware for Seating Cross Braces, PAIR
$575.89
EA
1 - 15, 17 - 20, 22, 23, 25b, 26, 27b, 28, 29b, 30 112636 Height Adjustable Straight with Push Handle Assembly, Medium, Low Profile Grip, Attaching Hardware for Seating Cross Braces, One Side
$287.94
EA
1 - 15, 17 - 20, 22, 23, 25b, 26, 27b, 28, 29b, 30 112637 Height Adjustable Straight with Push Handle Assembly, Medium, Low Profile Grip, Attaching Hardware for Seating Cross Braces, PAIR
$575.89
EA
1 - 15, 17 - 20, 22, 23, 25b, 26, 27b, 28, 29c, 30 112638 Height Adjustable Straight with Push Handle Assembly, Tall, Low Profile Grip, Attaching Hardware for Seating Cross Braces, One Side
$287.94
EA
1 - 15, 17 - 20, 22, 23, 25b, 26, 27b, 28, 29c, 30 112639 Height Adjustable Straight with Push Handle Assembly, Tall, Low Profile Grip, Attaching Hardware for Seating Cross Braces, PAIR
$575.89
EA
3, 19, 22, 25a, 26, 27a, 28, 29a 112610 Height Adjustable Straight with Push Handle Assembly, Short, Standard Grip
$133.11
EA
3, 19, 22, 25b, 26, 27a, 28, 29b 112611 Height Adjustable Straight with Push Handle Assembly, Medium, Standard Grip
$133.11
EA
3, 19, 22, 25b, 26, 27a, 28, 29c 112612 Height Adjustable Straight with Push Handle Assembly, Tall, Standard Grip
$133.11
EA
3, 19, 22, 25a, 26, 27b, 28, 29a 112613 Height Adjustable Straight with Push Handle Assembly, Short, Low Profile Grip
$133.11
EA
3, 19, 22, 25b, 26, 27b, 28, 29b 112614 Height Adjustable Straight with Push Handle Assembly, Medium, Low Profile Grip
$133.11
EA
3, 19, 22, 25b, 26, 27b, 28, 29c 112615 Height Adjustable Straight with Push Handle Assembly, Tall, Low Profile Grip
$133.11
EA
3, 19, 22, 25a, 26 118429 Height Adjustable Straight with Push Handle Assembly, Lower, Short, Standard Grip
$46.26
EA
3, 19, 22, 25b, 26 118430 Height Adjustable Straight with Push Handle Assembly, Lower, Medium, Standard Grip
$46.26
EA
3, 19, 22, 25b, 26 118431 Height Adjustable Straight with Push Handle Assembly, Lower, Tall, Standard Grip
$46.26
EA
27a, 28, 29a 501654 Depth Adjustable Height Adjustable Upper Push Handle Short Assembly w/ Standard Grip
$84.92
EA
27a, 28, 29b 501655 Depth Adjustable Height Adjustable Upper Push Handle Medium Assembly w/ Standard Grip
$84.92
EA
27a, 28, 29c 501656 Depth Adjustable Height Adjustable Upper Push Handle Tall Assembly w/ Standard Grip
$84.92
EA
27b, 28, 29a 002762 Depth Adjustable Height Adjustable Upper Push Handle Short Assembly w/ Low Profile Grip
$84.92
EA
27b, 28, 29b 002763 Depth Adjustable Height Adjustable Upper Push Handle Medium Assembly w/ Low Profile Grip
$84.92
EA
27b, 28, 29c 002764 Depth Adjustable Height Adjustable Upper Push Handle Tall Assembly w/ Low Profile Grip
$84.92
EA
1 - 15, 16a, 17 - 20, 22 - 24 112603 Depth Adjustable Backrest Hardware Assembly, for Std Cross Braces, Left Side
$149.55
EA
1 - 15, 16b, 17 - 20, 22 - 24 112604 Depth Adjustable Backrest Hardware Assembly, for Std Cross Braces, Right Side
$149.55
EA
1 - 15, 17 - 20, 22 - 23, 30 112605 Depth Adjustable Backrest Hardware Assembly, for Seating Cross Braces, One Side
$154.85
EA
1 - 15, 17 - 20, 22 - 23, 30 112606 Depth Adjustable Backrest Hardware Assembly, for Seating Cross Braces, PAIR
$309.67
EA
1, 9 503834 Cover Plate, Latch Insert Kit
$28.36
EA
2 100797 M6 x 40 BHCS BLK ZC
$1.17
EA
3 100558 M6 NYL INS Domed Cap L/N ZC
$1.17
EA
4 101701 Washer 3.315/.350 x .425/.525 x .059/.067 18-8 F/W
$2.94
EA
5 101184 M6 x 10 BTN SHCS BLKZC w/Patch
$1.77
EA
6 100670 M6 x 45 BTN SHCS BLK ZC
$1.77
EA
7 111833 Depth Adjustable Back Plate, Folding- Use quantity 1 per side if standard cross braces are present. Use quantity 2 per side if seating system cross braces are present.
$25.98
EA
8 101818 M4 x 10 FHCS BLKZC w/Patch
$1.17
EA
9 001897 Washer, Dual, PSA
$2.34
EA
10 102694 Dowel Pin, M5 X 24, Blk Zn
$1.77
EA
11 001895 Latch Insert, Folding Backrest
$7.39
EA
12 100658 M6 Nylock Nut Blk Zn- Use quantity 2 per side if standard cross braces are present. Use quantity 4 per side if seating system cross braces are present.
$1.17
EA
13 001896 Spring, Backrest Latch
$0.60
EA
14 001893 Latch Lever, Backrest
$14.94
EA
15 002513 Threaded Barrel, 5mm OD x M4
$2.17
EA
16a 111835 Depth Adjustable Back Plate, Inner, Folding, Left- Only used when standard cross braces are present
$25.98
EA
16b 111834 Depth Adjustable Back Plate, Inner, Folding, Right- Only used when standard cross braces are present
$25.98
EA
17 003284 Binding Post, 8mm x 40mm x M6
$1.64
EA
18 101592 M6 x 45 CLS10.9 DIN7991 FHCS BLKZC
$2.94
EA
19 100746 M6 Flat Washer Blk Zn
$1.77
EA
20 114443 Tube Spacer, Black, 1" OD x .083" x .80 LG- Replacement for part number 001230
$3.78
EA
21 000605 Depth Adjustable Frame Extension Tube, Catalyst/Spark
$41.58
EA
22 101811 M6 x 35 BHCS Blk Zn
$1.17
EA
23 000612 1" Half Saddle Washer
$2.15
24 101861 Nylon Washer 5/16 x 1/2 x .03- Only used when standard cross braces are present
$0.60
EA
26 000034 Sleeve 3/4" x 1 1/2"
$4.10
EA
27a 109432 Ergo Push Handle Grip 3/4" Standard with Instruction
$7.76
EA
27b 109430 Ergo Push Handle Grip 3/4" Low Profile with Instruction N/A EA Please Call
28 100638 Tube End Plug 3/4"
$2.36
EA
30 102803 Washer Flat .250 x .500 x .027 HX BLZ- Only used when seating system cross braces are present
$1.77
EA
