Catalyst 5

Name: Catalyst 5: Catalyst Iv Pole
Manufacturer: Ki Mobility

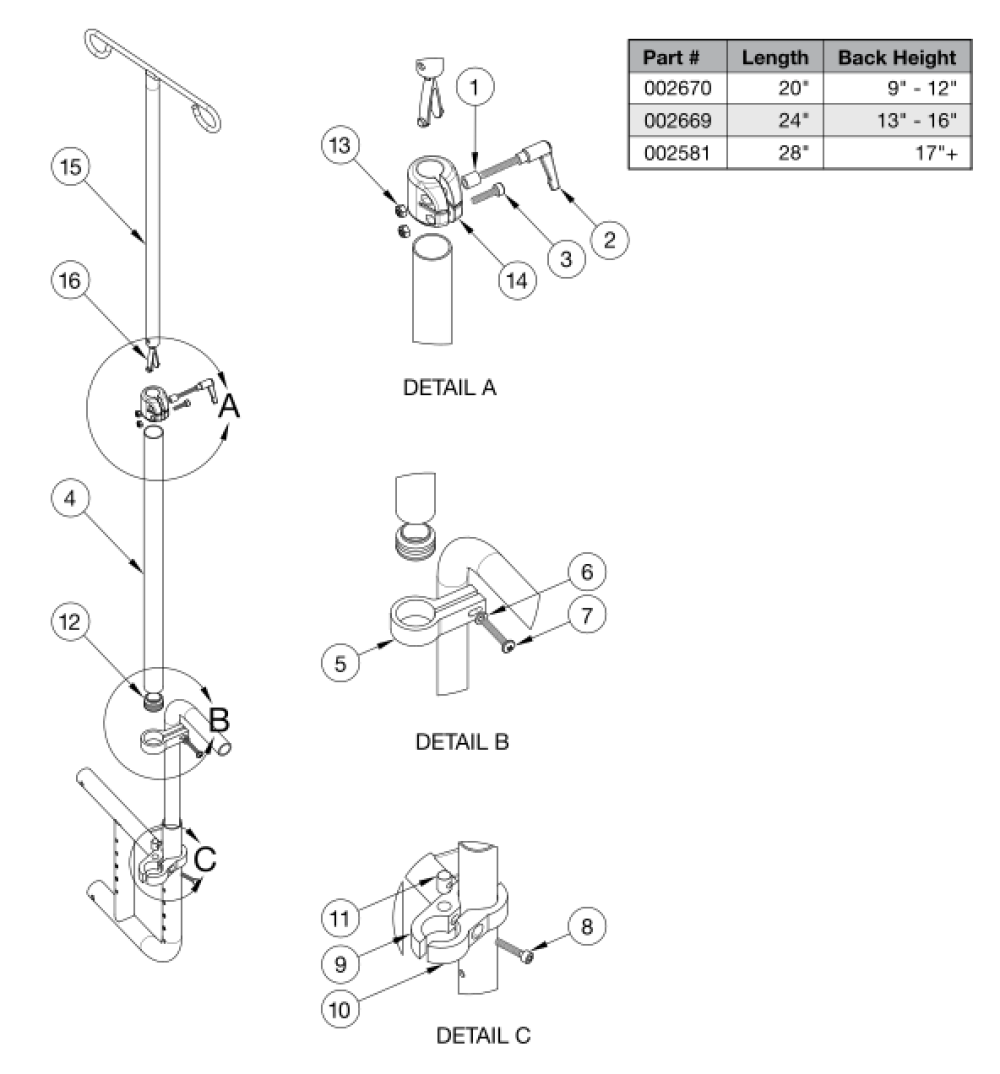

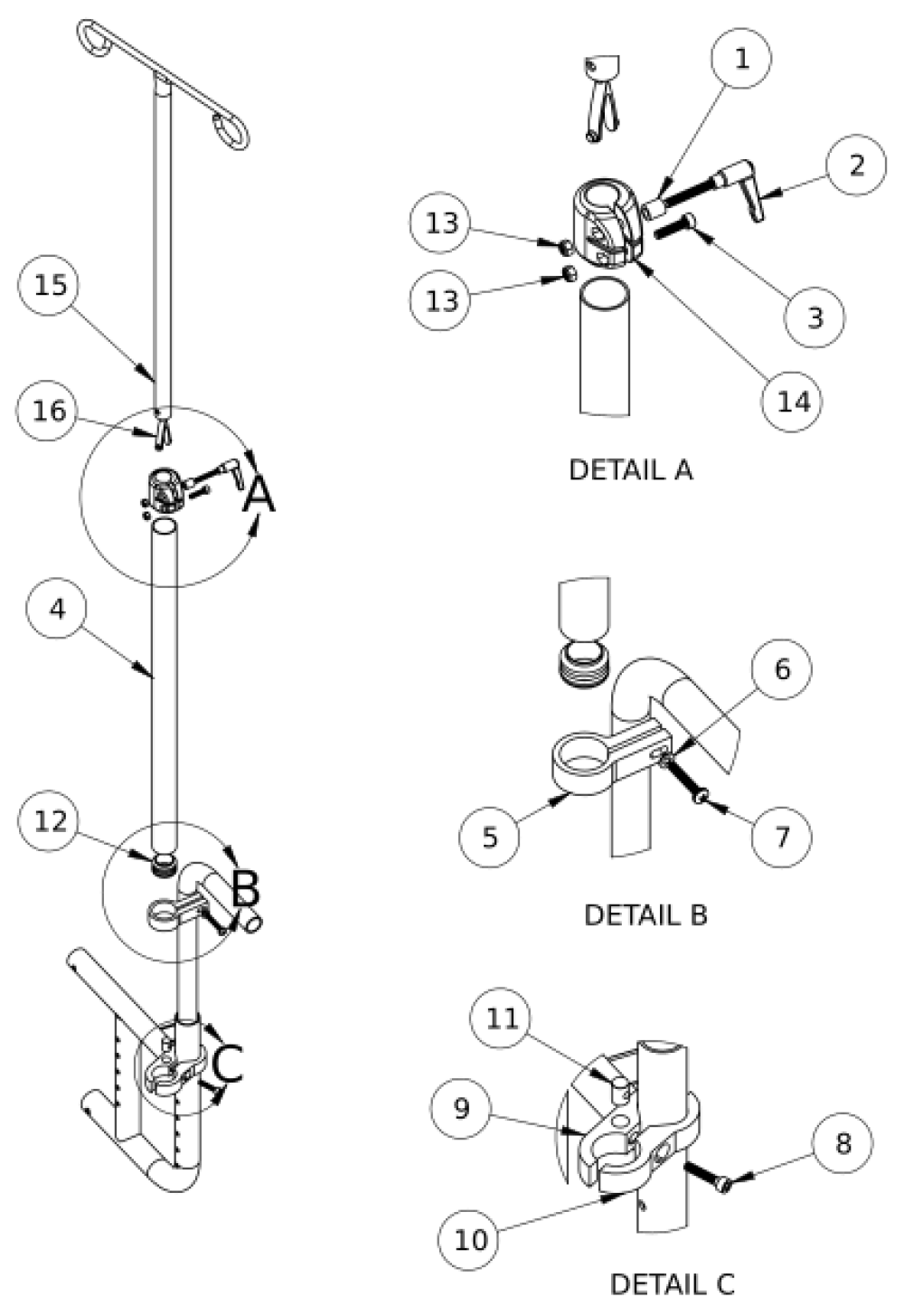

Catalyst Iv Pole parts diagram
(Click on image to enlarge)

Pos. Part # Description Price UOM Buy
1 - 3, 4a, 5 - 7, 8a, 8b, 9 - 16 502404 IV Pole Assembly 9-12" Back Height, Catalyst
$293.16
EA
1 - 3, 4b, 5 - 7, 8a, 8b, 9 - 17 502405 IV Pole Assembly 13-16" Back Height, Catalyst/Liberty
$293.16
EA
1 - 3, 4c, 5 - 7, 8a, 8b, 9 - 18 502406 IV Pole Assembly 17-20" Back Height, Catalyst/Liberty
$293.16
EA
1, 2, 3, 13, 14 502401 IV Pole Top Clamp Assembly
$49.79
EA
5, 6, 7 502402 IV Pole Middle Clamp Assembly, Catalyst
$43.80
EA
8a, 8b, 9, 10, 11 502403 IV Pole Bottom Clamp Assembly, Catalyst
$86.95
EA
1 102766 Spacer 3/8R. X 7/16 x .218 ID.
$7.91
EA
2 102767 Handle wM5 x 32L Threaded Stud
$33.00
EA
3 101843 M5 x 20 SHCS Blk Zn
$0.60
EA
4a 002670 IV Pole Outer Tube 20" Height
$33.61
EA
4b 002669 IV Pole Outer Tube 24" Height
$36.00
EA
4c 002581 IV Pole Outer Tube 28" Height
$38.40
EA
5 002707 IV Pole Clamp Single 1-1/8"
$42.00
EA
6 101856 Flat Washer, M5, Blk Zn
$0.60
EA
7 100696 M5 x 30mm PPH Capscrew
$1.77
EA
8a 100780 M6 x 25 SHCS ZC- Used on Catalyst 5 chairs
$2.36
EA
8b 102627 M6 X 30 SHCS BLK ZC- Used on Catalyst 4 chairs
$1.17
EA
9 002685 IV Pole Clamp 1-1/8" 1" Thru 1-1/4" w/ Cross Dowel Hole
$42.00
EA
10 002686 IV Pole Clamp 1-1/8" 1" Thru 1-1/4"
$42.00
EA
11 102768 M6 Barrel Nut
$5.60
EA
12 100532 Tube End Plug 1 1/8"
$2.94
EA
13 100657 M5 Nylock Nut Blk Zn
$0.60
EA
14 002395 Footrest Clamp Left LW
$7.80
EA
15 002585 IV Pole Upper
$30.00
EA
16 102769 Snap Button Plastic
$3.90
EA
