Catalyst 5

Name: Catalyst 5: 80 Degree Extension Mount Hanger
Manufacturer: Ki Mobility

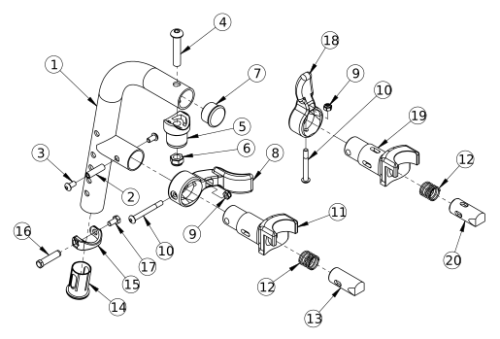

80 Degree Extension Mount Hanger parts diagram
(Click on image to enlarge)

Pos. Part # Description Price UOM Buy
1 - 17 100386_ _ _ Hanger Assm 80 Extension Mount Classic Latch Left _ _ _
$245.00
EA
1 - 17 100385_ _ _ Hanger Assm 80 Extension Mount Classic Latch Right _ _ _
$245.00
EA
1 - 7, 9, 10, 12, 14 - 20 504637_ _ _ Hanger Assm 80 Extension Mount 4-Way - In-Line
$245.00
EA
1 - 7, 9, 10, 12, 14 - 20 504659_ _ _ Hanger Assm 80 Extension Mount 4-Way - Out Left
$245.00
EA
1 - 7, 9, 10, 12, 14 - 20 504660_ _ _ Hanger Assm 80 Extension Mount 4-Way - Out Right
$245.00
EA
1, 7, 14 _ _ _338 Hanger Tube Assm 80 Extension Mount _ _ _ N/A EA Please Call
8 - 13 003417 Classic Hanger Latch Assembly, Left
$71.39
EA
8 - 13 003416 Classic Hanger Latch Assembly, Right
$71.39
EA
9, 10, 12, 18 - 20 003225 Assembled 4-Way In Line Hanger Release
$41.16
EA
9, 10, 12, 18 - 20 003225INST Assembled 4-Way In Line Hanger Release with Instruction
$41.16
EA
9, 10, 12, 18 - 20 003643 Assembled 4-Way Out Hanger Release, Left
$41.16
EA
9, 10, 12, 18 - 20 003643INST Assembled 4-Way Out Hanger Release, Left with Instruction
$41.16
EA
9, 10, 12, 18 - 20 003642 Assembled 4-Way Out Hanger Release, Right
$41.16
EA
9, 10, 12, 18 - 20 003642INST Assembled 4-Way Out Hanger Release, Right with Instruction
$41.16
EA
2 000073 M5 x 24 Threaded Barrel
$4.23
EA
3 100669 M5 x 10 BTN SHCS BLKZC w/Patch
$1.77
EA
4 100673 M8 x 45 BTN SHCS BLKZC
$1.77
EA
5 000032 Footrest Hanger Pivot Saddle
$5.88
EA
6 100659 M8 Nylock Nut Blk Zn
$1.17
EA
7 100804 Tube End Plug 1"
$1.77
EA
8 001158 Lever Swing Away Short
$8.19
EA
9 100657 M5 Nylock Nut Blk Zn
$0.60
EA
10 001374 M5 x 40 BHCS P/THD BLKZC
$2.40
EA
11 000031 Hanger Bracket N/A EA Please Call
12 000119 Hanger Spring
$3.42
EA
13 000352 Hanger Release Pin N/A EA Please Call
14 000034 Sleeve 3/4" x 1 1/2"
$4.10
EA
15 000988 Fastener Retainer
$4.41
EA
16 000987 Threaded Fastener
$4.23
EA
17 200427 M5 x 10 CLS8.8 HHCS ZC w/Patch DIN933
$0.60
EA
18 003228 Hanger Latch, 4-Way, Lever
$3.53
EA
18 003228INST Hanger Latch, 4-Way, Lever with Instruction
$3.53
EA
19 003226 Hanger Latch, 4-Way, Bracket
$25.30
EA
19 003226INST Hanger Latch, 4-Way, Bracket with Instruction
$25.30
EA
20 003227 Hanger Latch, 4-Way, Pin
$22.35
EA
20 003227INST Hanger Latch, 4-Way, Pin with Instruction
$22.35
EA
