Catalyst 5 Replacement Parts by Ki Mobility

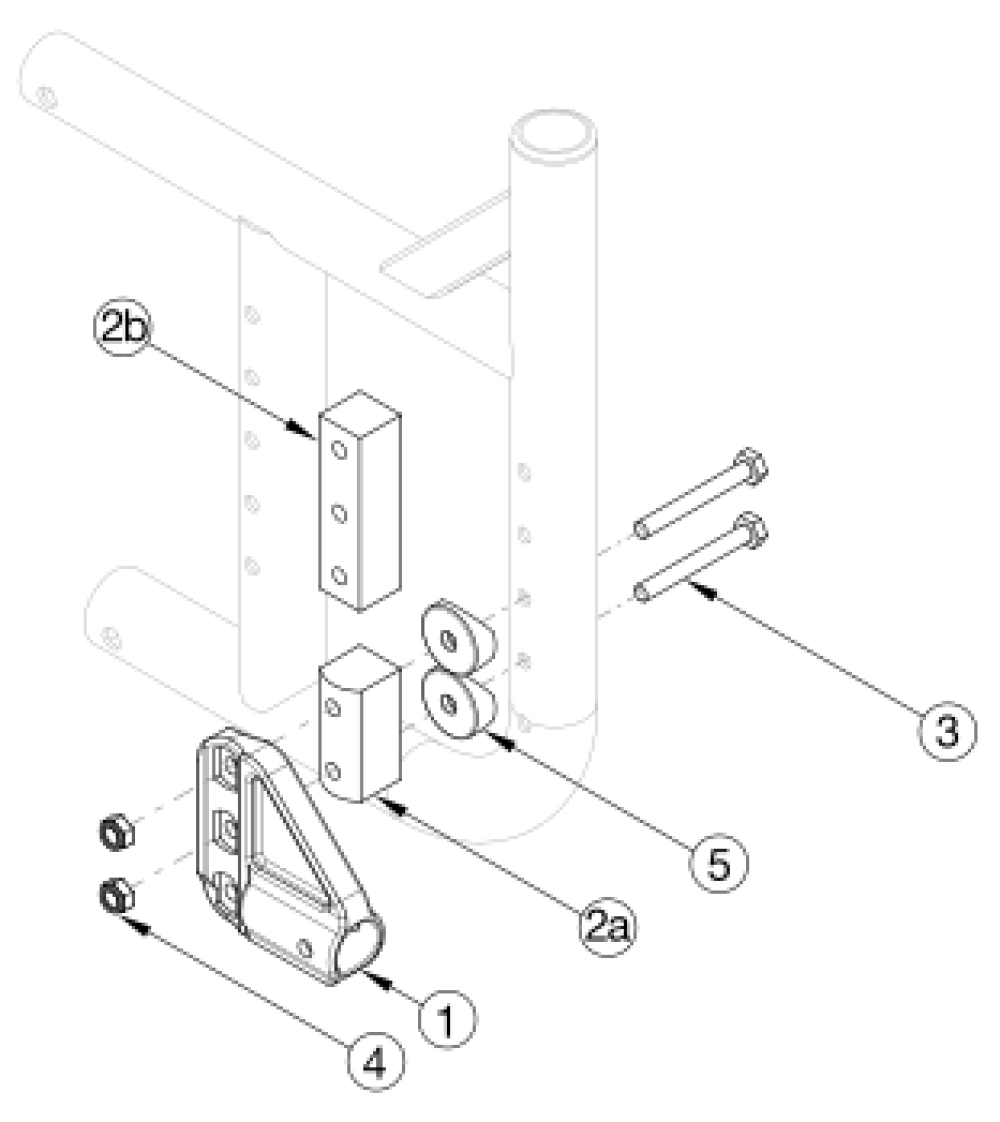

Name: Catalyst 5: Catalyst 5 Anti-tip Receiver
Manufacturer: Ki Mobility

(Click on image to enlarge)

Pos.	Part #	Description	Remarks	Price
1a	000046	Anti Tip Receiver CAT- Used prior to November 14, 2018 invoice date	Used prior to November 14, 2018 invoice date	$13.94
1b	004539	Anti Tip Receiver, Catalyst- Used with Universal Axle Plate or if chair has an invoice date after November 13, 2018. Replacement for 000046	Used with Universal Axle Plate or if chair has an invoice date after November 13, 2018. Replacement for 000046	$14.36
2	002329	Amputee Anti-Tip Spacer CAT- Used when Anti-Tips are present with Amputee Axle Plate	Used when Anti-Tips are present with Amputee Axle Plate	$51.46
3a	101826	M6 x 50 HHCS Blk Zn ()- Used when Amputee Anti-Tip Spacers are not present	Used when Amputee Anti-Tip Spacers are not present	$2.06
3b	100544	M6 x 75 CLS 8.8 DIN931 HHCS ZC ()- Used with Amputee Anti-Tip Spacers	Used with Amputee Anti-Tip Spacers	$1.55
4	100658	M6 Nylock Nut Blk Zn ()		$1.03
5	000056	Saddle 1 1/8" ()- Used with Amputee Anti-Tip Spacers and Standard Rear Frame	Used with Amputee Anti-Tip Spacers and Standard Rear Frame	$1.55
5b	000055	Saddle 1" ()- Used with Amputee Anti-Tip Spacers and Depth Adjustable Rear Frame	Used with Amputee Anti-Tip Spacers and Depth Adjustable Rear Frame	$1.55
6	003341	Amputee Anti-Tip Spacer w/ Transit CAT- Used when Transit and Anti-Tips are present with Amputee Axle Plate	Used when Transit and Anti-Tips are present with Amputee Axle Plate	$36.05
