Name: Catalyst 5: Catalyst Reclining Backrest
Manufacturer: Ki Mobility

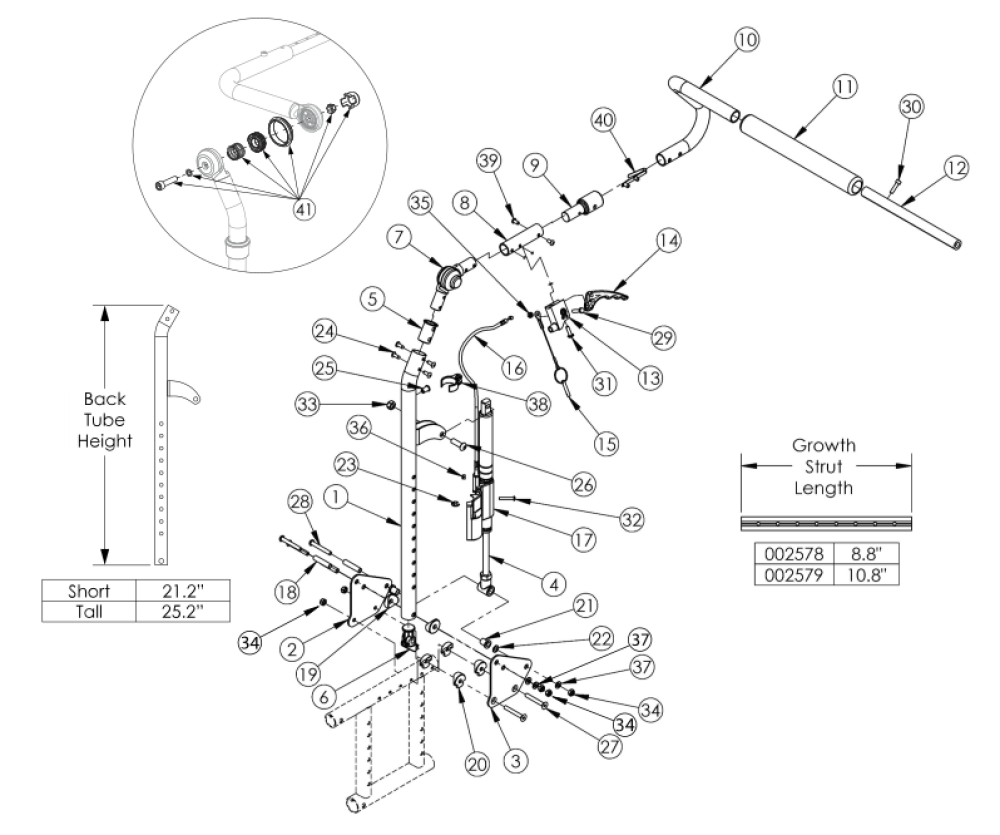

Catalyst Reclining Backrest parts diagram
(Click on image to enlarge)

If retrofitting, new rear frames and amputee axle plates are required. New sized anti-tips may be required Not available with Transit Option or Heavy Duty option.
Pos. Part # Description Price UOM Buy
1a, 2, 3a, 3b, 4a, 4b, 5 - 7, 8a, 8b, 9, 10a, 10b, 11, 12a, 13 - 15, 16a, 17a, 17b, 18 - 40 503333 Recline Back Kit, Short Height, 14-17" Width, Standard Gas Spring PAIR, Catalyst- Contains parts for complete retrofit
$1,244.17
EA
1a, 2, 3a, 3b, 4a, 4b, 5 - 7, 8a, 8b, 9, 10a, 10b, 11, 12b, 13 - 15, 16a, 17a, 17b, 18 - 40 503334 Recline Back Kit, Short Height, 18-22" Width, Standard Gas Spring PAIR, Catalyst- Contains parts for complete retrofit
$1,244.17
EA
1b, 2, 3a, 3b, 4a, 4b, 5 - 7, 8a, 8b, 9, 10a, 10b, 11, 12a, 13 - 15, 16b, 17a, 17b, 18 - 40 503335 Recline Back Kit, Tall Height, 14-17" Width, Standard Gas Spring PAIR, Catalyst- Contains parts for complete retrofit
$1,244.17
EA
1b, 2, 3a, 3b, 4a, 4b, 5 - 7, 8a, 8b, 9, 10a, 10b, 11, 12b, 13 - 15, 16b, 17a, 17b, 18 - 40 503336 Recline Back Kit, Tall Height, 18-22" Width, Standard Gas Spring PAIR, Catalyst- Contains parts for complete retrofit
$1,244.17
EA
1a, 2, 3a, 3b, 4c, 4d, 5 - 7, 8a, 8b, 9, 10a, 10b, 11, 12a, 13 - 15, 16a, 17a, 17b, 18 - 40 503337 Recline Back Kit, Short Height, 14-17" Width, Heavy Duty Gas Spring PAIR, Catalyst- Contains parts for complete retrofit
$1,244.17
EA
1a, 2, 3a, 3b, 4c, 4d, 5 - 7, 8a, 8b, 9, 10a, 10b, 11, 12b, 13 - 15, 16a, 17a, 17b, 18 - 40 503338 Recline Back Kit, Short Height, 18-22" Width, Heavy Duty Gas Spring PAIR, Catalyst- Contains parts for complete retrofit
$1,244.17
EA
1b, 2, 3a, 3b, 4c, 4d, 5 - 7, 8a, 8b, 9, 10a, 10b, 11, 12a, 13 - 15, 16b, 17a, 17b, 18 - 40 503339 Recline Back Kit, Tall Height, 14-17" Width, Heavy Duty Gas Spring PAIR, Catalyst- Contains parts for complete retrofit
$1,244.17
EA
1b, 2, 3a, 3b, 4c, 4d, 5 - 7, 8a, 8b, 9, 10a, 10b, 11, 12b, 13 - 15, 16b, 17a, 17b, 18 - 40 503340 Recline Back Kit, Tall Height, 18-22" Width, Heavy Duty Gas Spring PAIR, Catalyst- Contains parts for complete retrofit
$1,244.17
EA
1a, 5, 7, 8b, 9, 10a, 11, 24, 25, 39, 40 503327 Recline Back Tube Subassembly, Short 22", Right, Catalyst
$153.82
EA
1a, 5, 7, 8a, 9, 10b, 11, 24, 25, 39, 40 503328 Recline Back Tube Subassembly, Short 22", Left, Catalyst
$153.82
EA
1b, 5, 7, 8b, 9, 10a, 11, 24, 25, 39, 40 503329 Recline Back Tube Subassembly, Tall 26", Right, Catalyst
$156.60
EA
1b, 5, 7, 8a, 9, 10b, 11, 24, 25, 39, 40 503330 Recline Back Tube Subassembly, Tall 26", Left, Catalyst
$156.60
EA
9, 10a, 10b, 11, 12a, 30, 39, 40 503331 Recline Removable Stroller Handle Assembly 14 - 17W Catalyst- Kit includes parts for both sides
$131.39
EA
9, 10a, 10b, 11, 12b, 30, 39, 40 503332 Recline Removable Stroller Handle Assembly 18 - 22W Catalyst- Kit includes parts for both sides
$131.39
EA
2 003217 Backplate, Catalyst Recline, Outside
$30.23
EA
3a 003218 Backplate, Catalyst Recline, Inside Left
$36.59
EA
3b 003219 Backplate, Catalyst Recline, Inside Right
$36.59
EA
4a 001264 Gas Spring Lock 92mm 20kg, Left (Standard Weight Capacity)
$164.59
EA
4b 001265 Gas Spring Lock 92mm 20kg, Right (Standard Weight Capacity)
$164.59
EA
4c 001375 Gas Spring Lock 92mm 40kg, Left (Heavy Duty)
$164.59
EA
4d 001376 Gas Spring Lock 92mm 40kg, Right (Heavy Duty)
$164.59
EA
6 001267 Plug, Back Tube, Lower, Recline
$2.38
EA
9 003222 Recline Stroller Handle Adaptor
$17.17
EA
10a, 11 501090 Stroller Handle with Foam Grip, Right
$55.34
EA
10b, 11 501091 Stroller Handle with Foam Grip, Left
$55.34
EA
12a 002578 Growth Strut, Stroller, Short- Used on chair widths 14 - 17
$27.82
EA
12b 002579 Growth Strut, Stroller, Long- Used on chair widths 18 - 22
$30.44
EA
13 003638 Trigger Mount, No Lockout
$3.41
EA
14 001123 Trigger Horizontal
$8.50
EA
15 001124 Pin with Lanyard
$20.45
EA
16a 001268 Cable, Recline, Short
$100.53
EA
16b 001269 Cable, Recline, Long
$102.13
EA
17a 001298 Cover, Gas Spring, Left
$4.30
EA
17b 001299 Cover, Gas Spring, Right
$4.30
EA
18 003223 Recline Backplate Stop Pin
$2.84
19 001271 1" Saddle, .323 Hole
$1.75
EA
20 000612 1" Half Saddle Washer
$2.08
21 102081 Bushing Flange .319 IDx.394 OD
$0.61
22 101861 Nylon Washer 5/16 x 1/2 x .03
$0.58
EA
23 101076 1/4" E Ring
$1.71
EA
26 101814 M8 x 25 BHCS Blk Zn
$1.13
EA
27 101592 M6 x 45 CLS10.9 DIN7991 FHCS BLKZC
$2.84
EA
28 100670 M6 x 45 BTN SHCS BLK ZC
$1.71
EA
29 101820 M5 x 22 HHCS Blk Zn
$6.25
EA
30 101843 M5 x 20 SHCS Blk Zn
$0.58
EA
31 100734 M5 x 16 PHMS ZC
$1.71
EA
32 102328 M4 x 25 Pan Head Phil Blk Zn
$1.13
EA
33 100659 M8 Nylock Nut Blk Zn
$1.13
EA
34 100658 M6 Nylock Nut Blk Zn
$1.13
EA
35 100657 M5 Nylock Nut Blk Zn
$0.58
EA
36 102329 M4 Nylock Nut Blk Zn
$1.13
EA
37 100746 M6 Flat Washer Blk Zn
$1.71
EA
38 001117 Cable Clip 1"
$4.14
EA
39 100669 M5 x 10 BTN SHCS BLKZC w/Patch
$1.71
EA
40 100533 Detent Button
$3.88
EA
41 110524 Locking Hinge Button Assembly with Instruction- This kit contains the contents inside callout # 7. This assembly may not be compatible if chair was invoiced prior to 6/22/16
$39.72
EA
