Catalyst 5

Name: Catalyst 5: (discontinued) Catalyst / Spark Seating Dynamics Rocker Back
Manufacturer: Ki Mobility

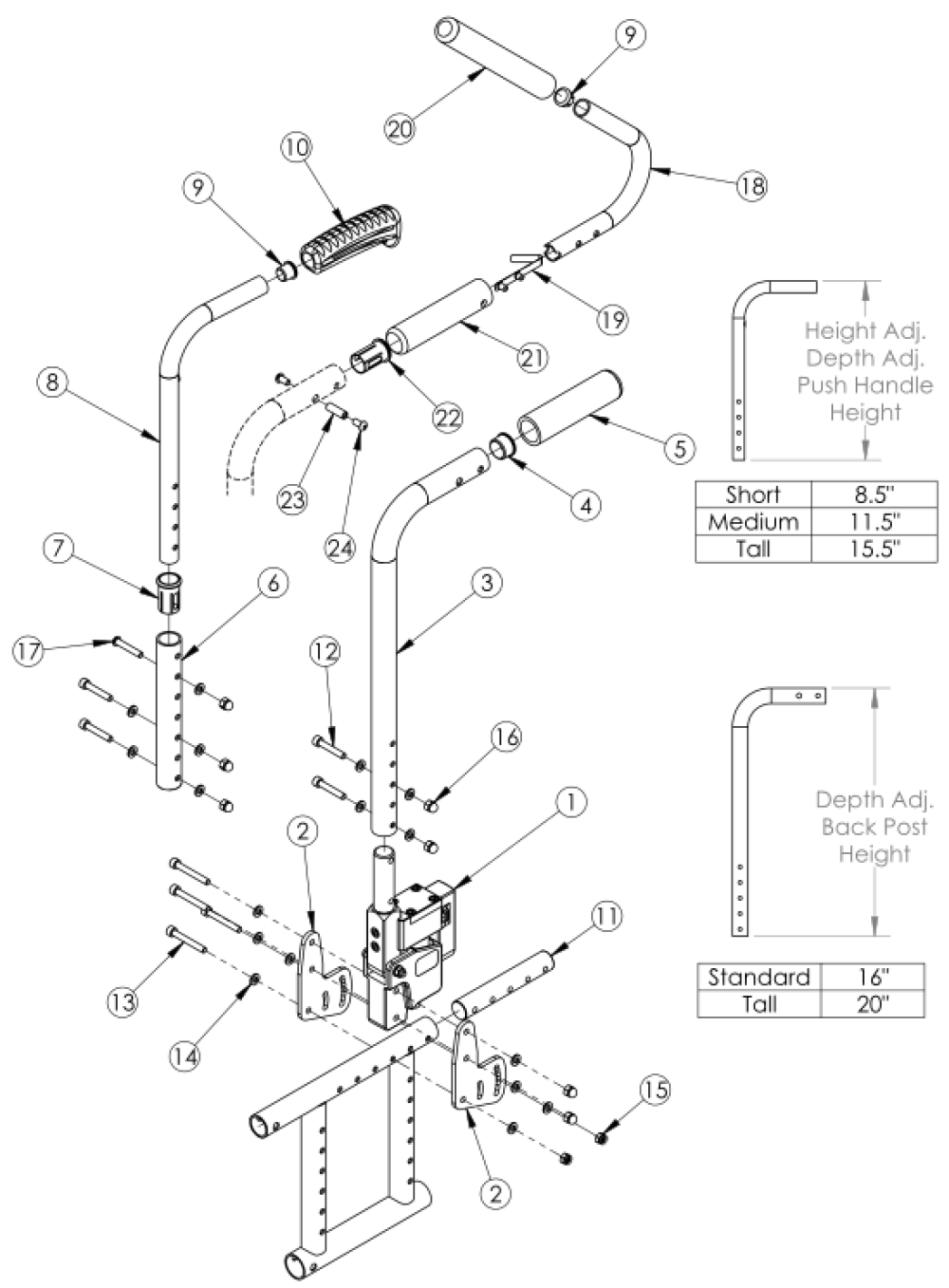

(discontinued) Catalyst / Spark Seating Dynamics Rocker Back parts diagram
(Click on image to enlarge)

Pos. Part # Description Price UOM Buy
1, 2 200527 Dynamic Rocker Back (PAIR) Catalyst/Spark N/A EA Please Call
13 - 16 502596 Frame Attaching Hardware Kit for Rocker Back, (One Side) Catalyst
$27.27
EA
3a , 4, 5, 12, 14, 16 502595 Depth Adj Rocker Back Tube Assm w/ Grip, Short, One Side CAT
$70.06
EA
3b , 4, 5, 12, 14, 16 502594 Depth Adj Rocker Back Tube Assm w/ Grip, Tall, One Side CAT
$70.06
EA
6, 7, 8a, 9, 10a, 12, 14, 16, 17 502597 Depth Adjustable Height Adjustable Rocker Back Tube Assembly, 16" - 18" Back Height, One Side
$81.23
EA
6, 7, 8b, 9, 10a, 12, 14, 16, 17 502598 Depth Adjustable Height Adjustable Rocker Back Tube Assembly, 19" - 22" Back Height, One Side
$81.23
EA
6, 7, 8c, 9, 10a, 12, 14, 16, 17 502599 Depth Adjustable Height Adjustable Rocker Back Tube Assembly, 23" - 24" Back Height, One Side
$81.23
EA
8a, 9, 10a 501654 Depth Adjustable Height Adjustable Upper Push Handle Short Assembly w/ Standard Grip
$84.92
EA
8b, 9, 10a 501655 Depth Adjustable Height Adjustable Upper Push Handle Medium Assembly w/ Standard Grip
$84.92
EA
8c, 9, 10a 501656 Depth Adjustable Height Adjustable Upper Push Handle Tall Assembly w/ Standard Grip
$84.92
EA
8a, 9, 10b 002762 Depth Adjustable Height Adjustable Upper Push Handle Short Assembly w/ Low Profile Grip
$84.92
EA
8b, 9, 10b 002763 Depth Adjustable Height Adjustable Upper Push Handle Medium Assembly w/ Low Profile Grip
$84.92
EA
8c, 9, 10b 002764 Depth Adjustable Height Adjustable Upper Push Handle Tall Assembly w/ Low Profile Grip
$84.92
EA
3a, 9, 12, 14, 16, 18 - 24 114175 Stroller Handle Back Post with Extension Complete Assembly, Short
$162.58
EA
3b, 9, 12, 14, 16, 18 - 24 114176 Stroller Handle Back Post with Extension Complete Assembly, Tall
$162.58
EA
9, 18 - 24 500743 Stroller Handle Extension Assembly
$66.67
EA
9, 18 - 20 501653 Stroller Handle Extension Handle Assembly
$40.99
EA
3a, 21 - 24 503080 Stroller Handle Depth Adj Rocker Back Post Assembly, Short CAT
$72.49
EA
3b, 21 - 24 503081 Stroller Handle Depth Adj Rocker Back Post Assembly, Tall CAT
$72.49
EA
4 100804 Tube End Plug 1"
$1.77
EA
6 002039 Depth Adjustable Height Adjustable Rocker Back Tube, Lower
$21.61
EA
9 100638 Tube End Plug 3/4"
$2.36
EA
10a 109432 Ergo Push Handle Grip 3/4" Standard with Instruction
$7.76
EA
10b 109430 Ergo Push Handle Grip 3/4" Low Profile with Instruction N/A EA Please Call
11 000605 Depth Adjustable Frame Extension Tube, Catalyst/Spark
$41.58
EA
12 101810 M6 x 35 SHCS BLK ZC
$1.17
EA
13 101472 M6 x 45 SHCS BLK ZC
$1.77
EA
14 100746 M6 Flat Washer Blk Zn
$1.77
EA
15 100658 M6 Nylock Nut Blk Zn
$1.17
EA
16 100558 M6 NYL INS Domed Cap L/N ZC
$1.17
EA
17 101811 M6 x 35 BHCS Blk Zn
$1.17
EA
19 100533 Detent Button
$4.02
EA
22 000034 Sleeve 3/4" x 1 1/2"
$4.10
EA
23 000065 M6 x 23.68 Threaded Barrel
$4.63
EA
24 100667 M6 x 12 BTN SHCS BLKZC w/Patch
$1.77
EA
