Catalyst 5
Name: Catalyst 5: (discontinued) Catalyst 5 Standard Axle Plate
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility

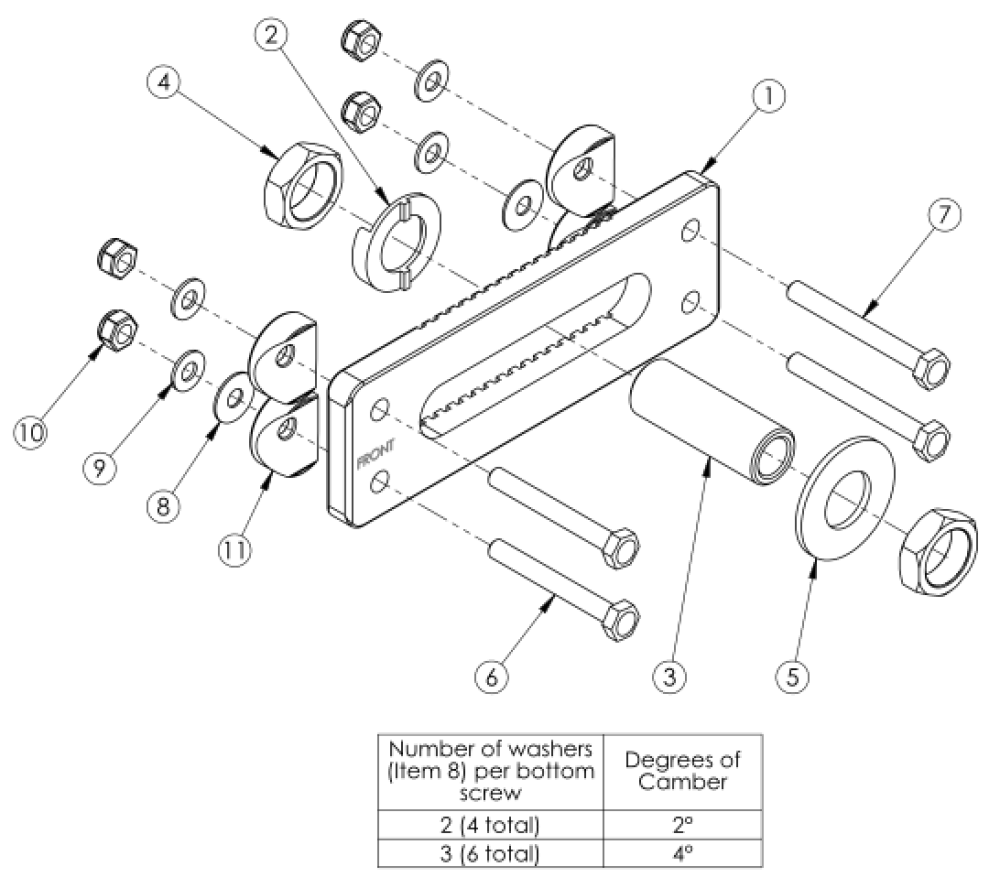

Part Picture
(Click on image to enlarge)
Rear Seat Height vs. Discontinued Axle Plate Reference
Attachments:
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 6a, 7b, 7c, 9, 10 | 503275 | Axle Plate Hardware Kit Cat 5 for Anti Tips (Pair) |
$64.78
|
EA |
|
|
| 6a, 7c, 7d, 9, 10, 11 | 503276 | Axle Plate Hardware Kit Cat 5 for Anti Tips and Transit and Swing Away Arms (Pair) |
$82.75
|
EA |
|
|
| 6b, 7b, 9, 10 | 503278 | Axle Plate Hardware Kit Cat 5 Depth Adj or Spark for Anti Tips (Pair) |
$64.78
|
EA |
|
|
| 6b, 7b, 7c, 7d, 9, 10 | 503279 | Axle Plate Hardware Kit Cat 5 Depth Adj or Spark for Anti Tips and Transit |
$68.37
|
EA |
|
|
| 1 - 5 | 500506 | Standard Axle Plate Assembly 1/2" | N/A | EA | Please Call | |
| 2 - 5 | 500504 | Axle Receiver Assembly 1/2" |
$34.85
|
EA |
|
|
| 1 | 000028 | Axle Plate Standard | N/A | EA | Please Call | |
| 2 | 004444 | Axle Plate Index Washer- Replaced 000051 and 004678 | Replaced 000051 and 004678 |
$9.38
|
EA |
|
| 3 | 100756 | Axle Receiver 1/2" Diameter |
$19.50
|
EA |
|
|
| 4 | 100514 | Axle Receiver Nut M18 x D12 x 8mm |
$1.76
|
EA |
|
|
| 5 | 004445 | Axle Plate Flat Washer- Replaced 000465 | Replaced 000465 |
$2.12
|
EA |
|
| 6a | 101826 | M6 x 50 HHCS Blk Zn- Used with Curved Rear Frames | Used with Curved Rear Frames |
$2.41
|
EA |
|
| 6b | 100674 | M6 x 45 CLS10.9 DIN931 HHCS ZC- Used with Depth Adjustable and Spark Rear Frames | Used with Depth Adjustable and Spark Rear Frames |
$1.81
|
|
|
| 7a | 101826 | M6 x 50 HHCS Blk Zn- Used when attaching axle plate only | Used when attaching axle plate only |
$2.41
|
EA |
|
| 7b | 100676 | M6 x 55 CLS10.9 DIN931 HHCS ZC- Used when attaching axle plate and anti-tip, transit or swing away arm bracket | Used when attaching axle plate and anti-tip, transit or swing away arm bracket |
$1.81
|
EA |
|
| 7c | 100677 | M6 x 60 CLS10.9 DIN931 HHCS ZC- Used when attaching axle plate and anti-tip and transit or swing away arm bracket | Used when attaching axle plate and anti-tip and transit or swing away arm bracket |
$1.81
|
EA |
|
| 7d | 100679 | M6 x 65 CLS 8.8 DIN931 HHCS ZC- Used when attaching axle plate and anti-tip, transit and swing away arm brackets | Used when attaching axle plate and anti-tip, transit and swing away arm brackets |
$1.81
|
|
|
| 8 | 100763 | Washer #12 Thin |
$1.76
|
|
||
| 9 | 100746 | M6 Flat Washer Blk Zn |
$1.81
|
EA |
|
|
| 10 | 100658 | M6 Nylock Nut Blk Zn |
$1.19
|
EA |
|
|
| 11 | 000056 | Saddle 1 1/8"- Used with transit or swing away arm bracket | Used with transit or swing away arm bracket |
$1.81
|
|
