Catalyst 5 Ti
Name: Catalyst 5 Ti: Catalyst 5ti Rear Frame
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility

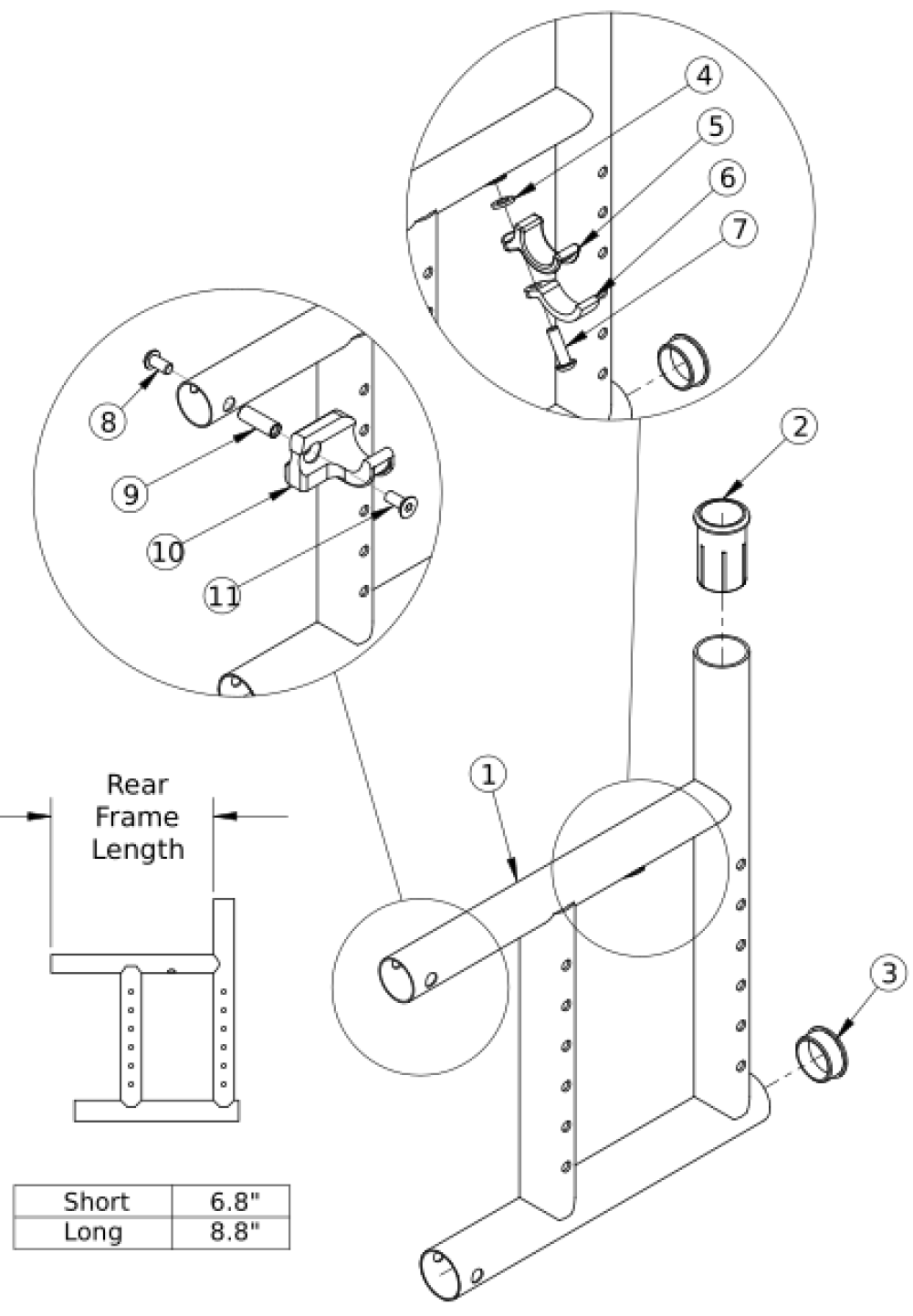

Part Picture
(Click on image to enlarge)
If chair has any type of direct mount side guards, select a frame assembly with Side Guard Mount Modification.
Use the short frame for 14-17" Seat Depths. Use long the frame for 18-20" Seat Depths.
If switching to a new Seat Depth, new Height Adjustable Flip Back T-Arms may be required.
Attachments:
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 4, 5, 6, 7a | 501005 | Seat Hook and Support Hardware Kit, Standard, Catalyst- Used with Standard Weight Capacity. This kit contains quantity of 1 each | Used with Standard Weight Capacity. This kit contains quantity of 1 each |
$19.87
|
EA |
|
| 4, 5, 6, 7b | 114528 | Seat Hook and Support Hardware Kit, Standard, for Heavy Duty Catalyst- Used with Heavy Duty / 350 lbs Weight Capacity. This kit contains quantity of 1 each | Used with Heavy Duty / 350 lbs Weight Capacity. This kit contains quantity of 1 each |
$20.47
|
EA |
|
| 1c, 2, 3 | 100277 | Frame Assm Cat TI Rear Left Short |
$639.58
|
EA |
|
|
| 1a, 2, 3 | 100275 | Frame Assm Cat TI Rear Right Short |
$639.58
|
EA |
|
|
| 1a, 2, 3 | 123156 | Frame Assm Cat TI Rear Right Short Not For Transit- Please quote when transit is not present. | Please quote when transit is not present. |
$639.58
|
EA |
|
| 1d, 2, 3 | 100278 | Frame Assm Cat TI Rear Left Long |
$639.58
|
EA |
|
|
| 1b, 2, 3 | 100276 | Frame Assm Cat TI Rear Right Long |
$639.58
|
EA |
|
|
| 1b, 2, 3 | 123157 | Frame Assm Cat TI Rear Right Long Not For Transit- Please quote when transit is not present. | Please quote when transit is not present. |
$639.58
|
EA |
|
| 1c, 2, 3 | 114424 | Frame Assm Cat TI Rear with Side Guard Mount Modification Left Short |
$639.58
|
EA |
|
|
| 1a, 2, 3 | 114422 | Frame Assm Cat TI Rear with Side Guard Mount Modification Right Short |
$639.58
|
EA |
|
|
| 1a, 2, 3 | 123165 | Frame Assm Cat TI Rear with Side Guard Mount Modification Right Short Not For Transit- Please quote when transit is not present. | Please quote when transit is not present. |
$639.58
|
EA |
|
| 1d, 2, 3 | 114425 | Frame Assm Cat TI Rear with Side Guard Mount Modification Left Long |
$639.58
|
EA |
|
|
| 1b, 2, 3 | 114423 | Frame Assm Cat TI Rear with Side Guard Mount Modification Right Long |
$639.58
|
EA |
|
|
| 1b, 2, 3 | 123166 | Frame Assm Cat TI Rear with Side Guard Mount Modification Right Long Not For Transit- Please quote when transit is not present. | Please quote when transit is not present. |
$639.58
|
EA |
|
| 2 | 000030 | Backrest Sleeve Cat |
$4.02
|
EA |
|
|
| 3 | 100532 | Tube End Plug 1 1/8" |
$3.00
|
EA |
|
|
| 4 | 100831 | 1/2" Washer OD .040" Thick |
$1.81
|
EA |
|
|
| 5 | 000003 | Seat Hook, Catalyst |
$8.79
|
EA |
|
|
| 6 | 000004 | Seat Hook Support, Catalyst |
$7.49
|
EA |
|
|
| 7a | 100668 | M6 x 20 CLS10.9 BTN SHCS ZC w/Patch- Used with Standard Weight Capacity | Used with Standard Weight Capacity |
$1.81
|
EA |
|
| 8 | 100667 | M6 x 12 BTN SHCS BLKZC w/Patch |
$1.81
|
EA |
|
|
| 9 | 000065 | M6 x 23.68 Threaded Barrel |
$4.72
|
EA |
|
|
| 10a | 000960R | Seat Hook Open Frame Right Front Frame / Left Rear Frame, Catalyst |
$24.84
|
EA |
|
|
| 10b | 000960L | Seat Hook Open Frame Left Front Frame / Right Rear Frame, Catalyst |
$24.84
|
EA |
|
|
| 11 | 101594 | M6 x 14 CLS10.9 DIN7991 FSHCS BLKZC w/Patch |
$2.41
|
EA |
|
