loadingLoading...Catalyst 5 Ti

Catalyst 5 Ti

Name: Catalyst 5 Ti: Discontinued Catalyst 5 Height Adjustable Flip Back Armrest
Manufacturer: Ki Mobility

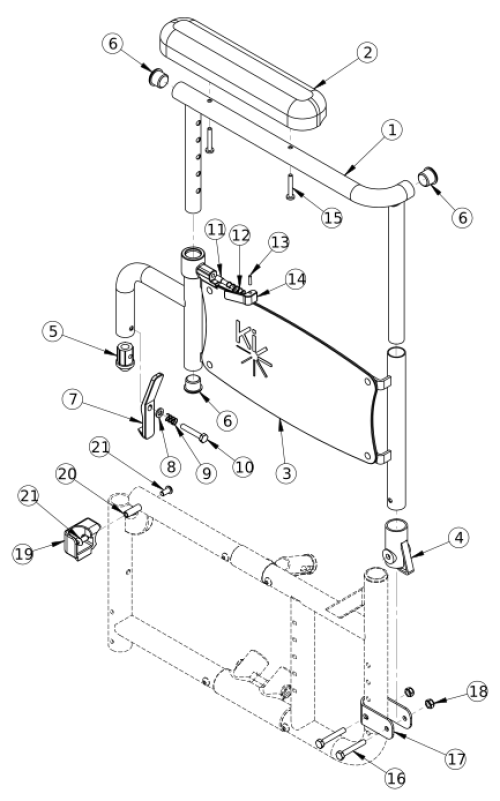

Discontinued Catalyst 5 Height Adjustable Flip Back Armrest parts diagram
(Click on image to enlarge)

Pos.Part #DescriptionPriceUOMBuy
1a, 2b, 3a, 4 - 18, 19a, 20, 21502271Armrest Height Adjustable Flip Back w/ Receiver and Bracket Kit Left Desk CAT5N/AEAPlease Call
1d, 2a, 3b, 4 - 18, 19b, 20, 21502274Armrest Height Adjustable Flip Back w/ Receiver and Bracket Kit Right Full CAT5N/AEAPlease Call
1a, 1b, 2b, 3a, 3b, 4 - 21502277Armrest Height Adjustable Flip Back w/ Receiver and Bracket Kit PAIR Desk CAT5N/AEAPlease Call
1c, 1d, 2a, 3a, 3b, 4 - 21502278Armrest Height Adjustable Flip Back w/ Receiver and Bracket Kit PAIR Full CAT5N/AEAPlease Call
11 - 14500711Arm Height Adj Flip Back Lever Assembly
$27.95
EA
1b, 2b, 6, 15503152Armrest Assembly Height Adj Flip Back Upper Desk Right
$136.96
EA
1a, 2b, 6, 15503153Armrest Assembly Height Adj Flip Back Upper Desk Left
$136.96
EA
1d, 2a, 6, 15503154Armrest Assembly Height Adj Flip Back Upper Full RightN/AEAPlease Call
1c, 2a, 6, 15503155Armrest Assembly Height Adj Flip Back Upper Full Left
$155.61
EA
1a, 2b, 3a, 4 - 15100193Armrest Assembly Height Adj Flip Back Complete Desk LeftN/AEAPlease Call
1b, 2b, 3b, 4 - 15100192Armrest Assembly Height Adj Flip Back Complete Desk Right
$232.17
EA
1c, 2a, 3a, 4 - 15100191Armrest Assembly Height Adj Flip Back Complete Full Left
$238.44
EA
1d, 2a, 3b, 4 - 15100190Armrest Assembly Height Adj Flip Back Complete Full RightN/AEAPlease Call
3a, 4 - 14503150Armrest Assembly Height Adj Flip Back Lower Left
$106.53
EA
3b, 4 - 14503151Armrest Assembly Height Adj Flip Back Lower Right
$106.53
EA
16 - 18502264Armrest Height Adjustable Flip Back Bracket Kit CAT5
$13.71
EA
19a, 20, 21502265Armrest Height Adjustable Flip Back Receiver Kit Left CAT
$17.44
EA
19b, 20, 21502266Armrest Height Adjustable Flip Back Receiver Kit Right CAT
$17.44
EA
1a000382LArmrest Flip Back Height Adj Frame Upper Desk Left
$101.59
EA
1b000382RArmrest Flip Back Height Adj Frame Upper Desk RightN/AEAPlease Call
1c000383LArmrest Flip Back Height Adj Frame Upper Full LeftN/AEAPlease Call
1d000383RArmrest Flip Back Height Adj Frame Upper Full RightN/AEAPlease Call
2a100500Arm Pad Full
$25.56
EA
2b100501Arm Pad Desk
$25.56
EA
3a, 11 - 14000431-LArmrest Flip Back Height Adj Frame Lower Left
$87.80
EA
3b, 11 - 14000431-RArmrest Flip Back Height Adj Frame Lower RightN/AEAPlease Call
4100691Armrest Flip Back Rear Pivot Bracket
$3.64
EA
5100690Armrest Flip Back Front Tube Plug
$1.94
EA
6100803Tube End Plug 7/8"
$1.71
EA
7100689Armrest Flip Back Release Lever
$4.23
EA
8102072Washer Nylon .234 ID x .406 OD x .062 Thick
$0.58
EA
9100693Compression Spring 0.34" OD x 0.70 LG
$1.74
EA
10100860M6 x 35 HHCS P/THD ZC
$1.71
EA
11000099Height Adjustable Armrest Lever Pin
$20.69
EA
12000134Height Adjustable Armrest Lever Spring
$1.21
EA
13200257Dowel Pin 1/8 x 1/2
$2.84
EA
14000098Height Adjustable Armrest LeverN/AEAPlease Call
15100696M5 x 30mm PPH Capscrew
$1.71
EA
16100681M6 x 40 CLS8.8 DIN931 HHCS ZC
$1.71
EA
17000280Armrest Flip Back Bracket CAT 5
$8.89
EA
18100658M6 Nylock Nut Blk Zn
$1.13
EA
19a000081Armrest Flip Back Receiver Left CAT
$10.36
EA
19b000082Armrest Flip Back Receiver Right CAT
$10.36
EA
20000065M6 x 23.68 Threaded Barrel
$4.47
EA
21100667M6 x 12 BTN SHCS BLKZC w/Patch
$1.71
EA
