Catalyst 5 Ti
Name: Catalyst 5 Ti: Discontinued Catalyst Aluminum Cross Braces
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility

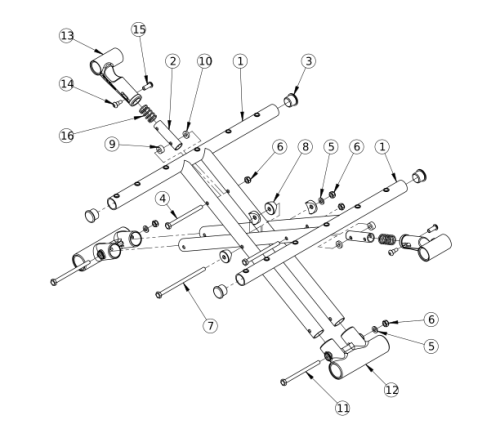

Part Picture
(Click on image to enlarge)
Pictured round-style cross braces effective prior to 4/13/16 on 21" and 22" wide chairs ending with serial numbers C4017704, C4HD002592, C5030817, C5HD002748, C5TH003678.
Pictured round-style cross braces effective prior to 6/15/16 on 14" - 20" wide chairs ending with serial numbers C4018743, C4HD002700, C5032543, C5037979, C5HD002834, C5TH003715.
Attachments:
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 2a, 13a, 14 - 16 | 500024 | Upper Pivot Assembly 14" Width |
$51.11
|
EA |
|
|
| 2b, 13b, 14 - 16 | 500025 | Upper Pivot Assembly 15" Width |
$51.11
|
EA |
|
|
| 2c, 13b, 14 - 16 | 500026 | Upper Pivot Assembly 16" Width |
$51.11
|
EA |
|
|
| 2d, 13b, 14 - 16 | 500027 | Upper Pivot Assembly 17" Width |
$51.11
|
EA |
|
|
| 2e, 13b, 14 - 16 | 500028 | Upper Pivot Assembly 18" Width |
$51.11
|
EA |
|
|
| 2f, 13b, 14 - 16 | 500029 | Upper Pivot Assembly 19" Width |
$51.11
|
EA |
|
|
| 2g, 13b, 14 - 16 | 500030 | Upper Pivot Assembly 20" Width |
$51.11
|
EA |
|
|
| 2h, 13b, 14 - 16 | 501479 | Upper Pivot Assembly 21/22" Width |
$51.11
|
EA |
|
|
| 3 | 101162 | 7/8 OD End Plug BLK |
$1.95
|
|
||
| 4 | 100660 | M6 x 80mm CLS8.8 DIN931 HHCS ZC |
$1.81
|
|
||
| 5 | 100746 | M6 Flat Washer Blk Zn |
$1.81
|
EA |
|
|
| 6 | 100658 | M6 Nylock Nut Blk Zn |
$1.19
|
EA |
|
|
| 7 | 100678 | M6 x 110 CLS8.8 DIN931 HHCS ZC |
$3.00
|
EA |
|
|
| 8 | 000054 | Saddle 7/8" |
$1.81
|
|
||
| 9 | 100880 | 1/4" Plastic Spacer |
$3.00
|
|
||
| 10 | 105019 | 3/16" Plastic Spacer |
$0.61
|
|
||
| 11 | 100704 | M6 x 90 CLS8.8 DIN931 HHCS ZC |
$1.81
|
EA |
|
|
| 4 - 11 | 501398 | Round-Style Cross Brace Hardware Kit CAT |
$27.36
|
EA |
|
|
| 12 | 000001 | Lower Frame Pivot CAT |
$31.64
|
EA |
|
