Catalyst 5 Ti
Name: Catalyst 5 Ti: Discontinued Catalyst Loop Footplate
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility
Part Picture
(Click on image to enlarge)
This Catalyst Loop Footplate is discontinued as of November 30th, 2015
Attachments:

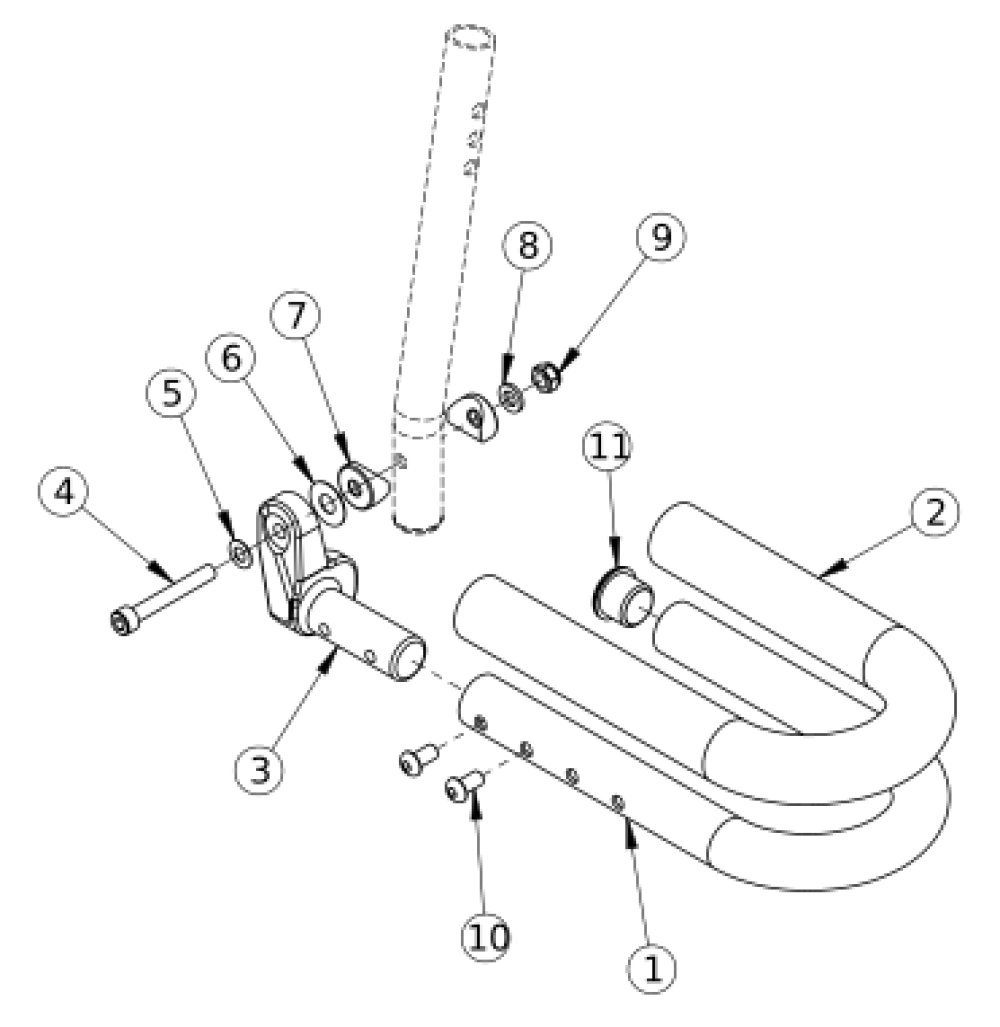

| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 1a, 2a, 3b, 4 - 11 | 501023 | Footplate Loop Assembly 14/15 Left | N/A | EA | Please Call | |
| 1a, 2a, 3a, 4 - 11 | 500740 | Footplate Loop Assembly 14/15 Right |
$103.63
|
EA |
|
|
| 1b, 2b, 3b, 4 - 11 | 501024 | Footplate Loop Assembly 16/17 Left | N/A | EA | Please Call | |
| 1b, 2b, 3a, 4 - 11 | 500741 | Footplate Loop Assembly 16/17 Right |
$103.63
|
EA |
|
|
| 1c, 2c, 3b, 4 - 11 | 501025 | Footplate Loop Assembly 18-22 Left | N/A | EA | Please Call | |
| 1c, 2c, 3a, 4 - 11 | 500742 | Footplate Loop Assembly 18-22 Right |
$103.63
|
EA |
|
|
| 1a, 2a, 11 | 100538 | Footplate Loop w/ Grip 14/15 |
$68.23
|
EA |
|
|
| 1b, 2b, 11 | 100541 | Footplate Loop w/ Grip 16/17 |
$68.23
|
EA |
|
|
| 1c, 2c, 11 | 100543 | Footplate Loop w/ Grip 18-22 |
$68.23
|
EA |
|
|
| 3a | 000067 | Footplate Loop Casting 3/4" Right |
$24.99
|
EA |
|
|
| 3b | 000069 | Footplate Loop Casting 3/4" Left | N/A | EA | Please Call | |
| 4 | 101472 | M6 x 45 SHCS BLK ZC |
$1.81
|
EA |
|
|
| 5 | 101455 | M6 Belleville Washer (.252 x .551 x .050) |
$1.81
|
EA |
|
|
| 6 | 000428 | Wear Washer |
$3.00
|
EA |
|
|
| 7 | 000053 | Saddle 3/4" |
$1.81
|
|
||
| 8 | 100746 | M6 Flat Washer Blk Zn |
$1.81
|
EA |
|
|
| 9 | 120030 | M6 Top Lock Nut |
$1.19
|
EA |
|
|
| 10 | 100667 | M6 x 12 BTN SHCS BLKZC w/Patch |
$1.81
|
EA |
|
|
| 11 | 100803 | Tube End Plug 7/8" |
$1.81
|
EA |
|
