Catalyst 5 Ti

Name: Catalyst 5 Ti: Catalyst 5 Amputee Axle Plate
Manufacturer: Ki Mobility

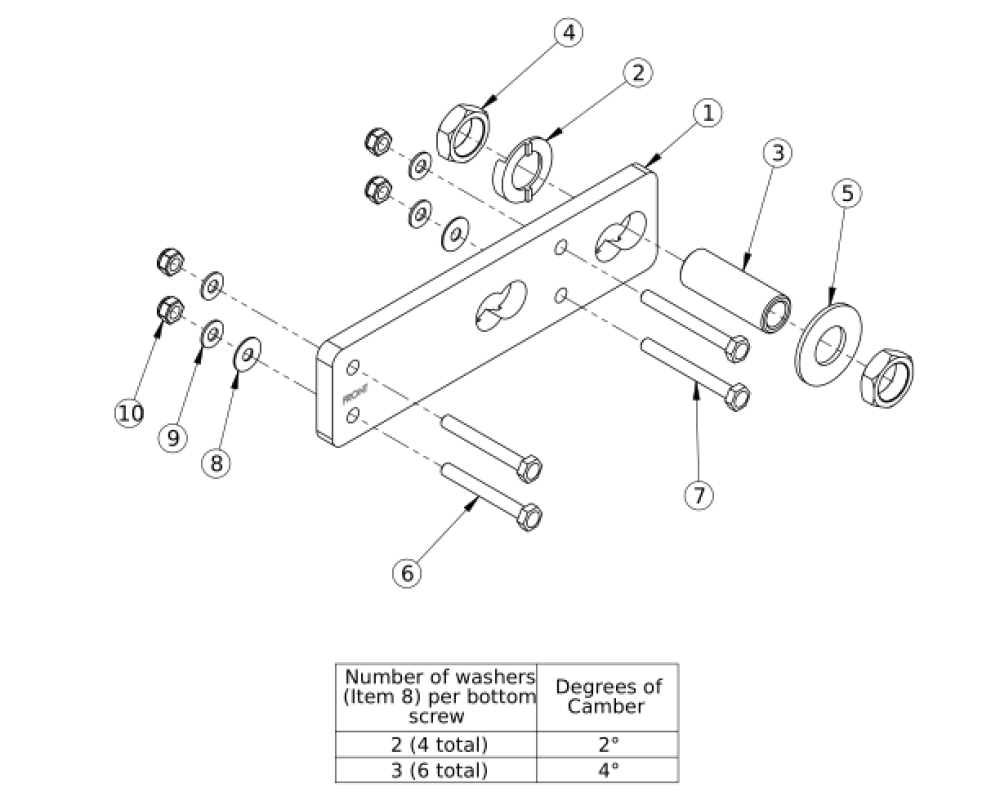

Catalyst 5 Amputee Axle Plate parts diagram
(Click on image to enlarge)

Pos. Part # Description Price UOM Buy
1, 2, 3a, 4, 5 500503 Amputee Axle Plate Assembly 1/2"- Used with Quad Quick Release Axles
$154.31
EA
1, 2, 3b, 4, 5 117324 Amputee Axle Plate Assembly 2.5"- Used with Quick Release and Fixed Axles
$154.31
EA
2, 3a, 4, 5 500504 Axle Receiver Assembly 1/2"- Used with Quad Quick Release Axles
$33.01
EA
2, 3b, 4, 5 117325 Axle Receiver Assembly 2.5"- Used with Quick Release and Fixed Axles
$33.01
EA
1 000145 Amputee Axle Plate
$121.34
EA
2 004444 Axle Plate Index Washer- Replaced 000051 and 004678
$8.89
EA
3a 100756 Axle Receiver 1/2" Diameter- Used with Quad Quick Release Axles
$19.12
EA
3b 114480 Axle Receiver, 2.5" Length- Used with Quick Release and Fixed Axles
$18.44
EA
4 100514 Axle Receiver Nut M18 x D12 x 8mm
$1.67
EA
5 004445 Axle Plate Flat Washer- Replaced 000465
$2.01
EA
7a 101826 M6 x 50 HHCS Blk Zn- Used when attaching axle plate only
$2.28
EA
7b 100677 M6 x 60 CLS10.9 DIN931 HHCS ZC- Used when attaching axle plate and anti-tip receiver or transit bracket
$1.71
EA
7c 100679 M6 x 65 CLS 8.8 DIN931 HHCS ZC- Used when attaching axle plate, anti-tip receiver and transit bracket
$1.71
8 100763 Washer #12 Thin- Use 4 Washers with 2° of Camber or use 8 Washers with 4° of Camber
$1.67
9 100746 M6 Flat Washer Blk Zn
$1.71
EA
10 100658 M6 Nylock Nut Blk Zn
$1.13
EA
