Catalyst 5 Ti

Name: Catalyst 5 Ti: (discontinued) Catalyst 5 Curved Axle Plate
Manufacturer: Ki Mobility

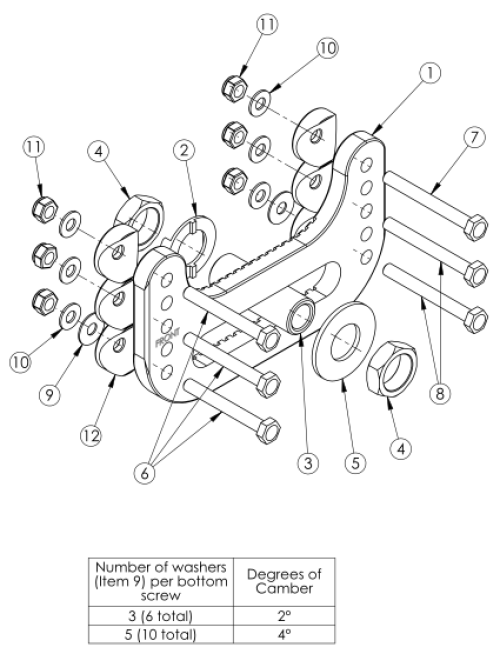

(discontinued) Catalyst 5 Curved Axle Plate parts diagram

(Click on image to enlarge)

Pos.	Part #	Description	Remarks	Price	UOM	Buy
6a, 7b, 8b, 10, 11	503275	Axle Plate Hardware Kit Cat 5 for Anti Tips (Pair)		$61.36	EA
6a, 7c, 8c, 8d, 10, 11, 12	503276	Axle Plate Hardware Kit Cat 5 for Anti Tips and Transit and Swing Away Arms (Pair)		$78.39	EA
6b, 7a, 7b, 10, 11	503278	Axle Plate Hardware Kit Cat 5 Depth Adj or Spark for Anti Tips (Pair)		$61.36	EA
6b, 7b, 7c, 8c, 10, 11	503279	Axle Plate Hardware Kit Cat 5 Depth Adj or Spark for Anti Tips and Transit		$64.76	EA
1 - 5	500502	Curved Axle Plate Assembly 1/2"		N/A	EA	Please Call
2 - 5	500504	Axle Receiver Assembly 1/2"		$33.01	EA
1	000029	Axle Plate Curved		N/A	EA	Please Call
2	004444	Axle Plate Index Washer- Replaced 000051 and 004678	Replaced 000051 and 004678	$8.89	EA
3	100756	Axle Receiver 1/2" Diameter		$19.12	EA
4	100514	Axle Receiver Nut M18 x D12 x 8mm		$1.67	EA
5	004445	Axle Plate Flat Washer- Replaced 000465	Replaced 000465	$2.01	EA
6a	101826	M6 x 50 HHCS Blk Zn- Used with Curved Rear Frames	Used with Curved Rear Frames	$2.28	EA
6b	100674	M6 x 45 CLS10.9 DIN931 HHCS ZC- Used with Depth Adjustable and Spark Rear Frames	Used with Depth Adjustable and Spark Rear Frames	$1.71
7a	101826	M6 x 50 HHCS Blk Zn- Used with Axle Plate Only on Curved Rear Frames	Used with Axle Plate Only on Curved Rear Frames	$2.28	EA
7b	100676	M6 x 55 CLS10.9 DIN931 HHCS ZC- Used with Anti-Tip or Transit or Swing Away Arm Bracket	Used with Anti-Tip or Transit or Swing Away Arm Bracket	$1.71	EA
7c	100677	M6 x 60 CLS10.9 DIN931 HHCS ZC- Used with Anti-Tip and Transit or Swing Away Arm Bracket	Used with Anti-Tip and Transit or Swing Away Arm Bracket	$1.71	EA
8a	101826	M6 x 50 HHCS Blk Zn- Used with Axle Plate Only	Used with Axle Plate Only	$2.28	EA
8b	100677	M6 x 60 CLS10.9 DIN931 HHCS ZC- Used with Anti-Tip or Transit or Swing Away Arm Bracket	Used with Anti-Tip or Transit or Swing Away Arm Bracket	$1.71	EA
8c	100679	M6 x 65 CLS 8.8 DIN931 HHCS ZC- Used with Anti-Tip and Transit or Swing Away Arm Bracket	Used with Anti-Tip and Transit or Swing Away Arm Bracket	$1.71
8d	100680	M6 x 70 CLS 8.8 DIN931 HHCS ZC- Used with Anti-Tip and Transit and Swing Away Arm Bracket	Used with Anti-Tip and Transit and Swing Away Arm Bracket	$1.71
9	100763	Washer #12 Thin		$1.67
10	100746	M6 Flat Washer Blk Zn		$1.71	EA
11	100658	M6 Nylock Nut Blk Zn		$1.13	EA
12	000056	Saddle 1 1/8"- Used with Transit or Swing Away Arm Bracket	Used with Transit or Swing Away Arm Bracket	$1.71
