Catalyst 5 Ti

Name: Catalyst 5 Ti: Catalyst 5ti 80 Degree Fixed Front Frame
Manufacturer: Ki Mobility

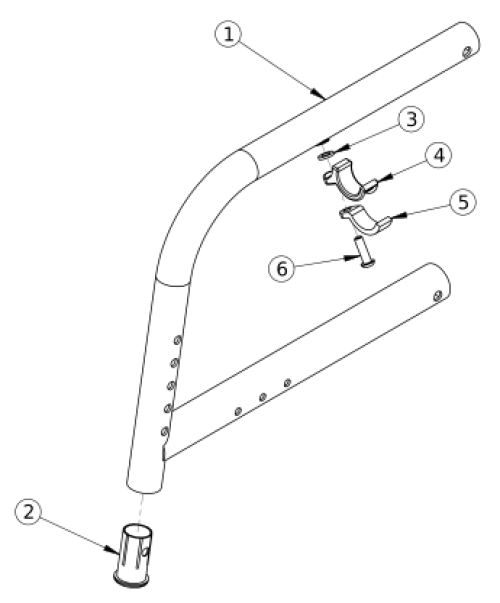

Catalyst 5ti 80 Degree Fixed Front Frame parts diagram
(Click on image to enlarge)

Pos. Part # Description Price UOM Buy
3, 4, 5, 6a 501005 Seat Hook and Support Hardware Kit, Standard, Catalyst- Used with Standard Weight Capacity. This kit contains quantity of 1 each
$18.82
EA
3, 4, 5, 6b 114528 Seat Hook and Support Hardware Kit, Standard, for Heavy Duty Catalyst- Used with Heavy Duty / 350 lbs Weight Capacity. This kit contains quantity of 1 each
$19.39
EA
1a, 2 100414 Frame Assm Cat TI Front Fixed 80 Left 14
$498.73
EA
1b, 2 100415 Frame Assm Cat TI Front Fixed 80 Left 15
$498.73
EA
1c, 2 100416 Frame Assm Cat TI Front Fixed 80 Left 16
$498.73
EA
1d, 2 100417 Frame Assm Cat TI Front Fixed 80 Left 17
$498.73
EA
1e, 2 501647 Frame Assm Cat Ti Front Fixed 80 Left 18
$498.73
EA
1f, 2 501648 Frame Assm Cat Ti Front Fixed 80 Left 19
$498.73
EA
1g, 2 100418 Frame Assm Cat TI Front Fixed 80 Left 20
$498.73
EA
1h, 2 100409 Frame Assm Cat TI Front Fixed 80 Right 14
$498.73
EA
1i, 2 100410 Frame Assm Cat TI Front Fixed 80 Right 15
$498.73
EA
1j, 2 100411 Frame Assm Cat TI Front Fixed 80 Right 16
$498.73
EA
1k, 2 100412 Frame Assm Cat TI Front Fixed 80 Right 17
$498.73
EA
1l, 2 501649 Frame Assm Cat Ti Front Fixed 80 Right 18
$498.73
EA
1m, 2 501650 Frame Assm Cat Ti Front Fixed 80 Right 19
$498.73
EA
1n, 2 100413 Frame Assm Cat TI Front Fixed 80 Right 20
$498.73
EA
1c, 2 114386 Frame Assm Cat TI Front with Flip Back Arm Modification Fixed 80 Left 16
$498.73
EA
1d, 2 114387 Frame Assm Cat TI Front with Flip Back Arm Modification Fixed 80 Left 17
$498.73
EA
1e, 2 114397 Frame Assm Cat Ti Front with Flip Back Arm Modification Fixed 80 Left 18
$498.73
EA
1f, 2 114398 Frame Assm Cat Ti Front with Flip Back Arm Modification Fixed 80 Left 19
$498.73
EA
1g, 2 114388 Frame Assm Cat TI Front with Flip Back Arm Modification Fixed 80 Left 20
$498.73
EA
1j, 2 114381 Frame Assm Cat TI Front with Flip Back Arm Modification Fixed 80 Right 16
$498.73
EA
1k, 2 114382 Frame Assm Cat TI Front with Flip Back Arm Modification Fixed 80 Right 17
$498.73
EA
1l, 2 114399 Frame Assm Cat Ti Front with Flip Back Arm Modification Fixed 80 Right 18
$498.73
EA
1m, 2 114400 Frame Assm Cat Ti Front with Flip Back Arm Modification Fixed 80 Right 19
$498.73
EA
1n, 2 114383 Frame Assm Cat TI Front with Flip Back Arm Modification Fixed 80 Right 20
$498.73
EA
2 000034 Sleeve 3/4" x 1 1/2"
$3.96
EA
3 100831 1/2" Washer OD .040" Thick
$1.71
EA
4 000003 Seat Hook, Catalyst
$8.33
EA
5 000004 Seat Hook Support, Catalyst
$7.09
EA
6a 100668 M6 x 20 CLS10.9 BTN SHCS ZC w/Patch- Used with Standard Weight Capacity
$1.71
EA
6b 101180 M6 x 20 SHCS BLK ZC- Used with Heavy Duty / 350 lbs Weight Capacity
$2.28
EA
