Loading... Quickie S636/S646 (After S/N Prefix S64a & S63a-143733)

Anti-tip Lock-out Mech S636 & S646

Name: Quickie S636/S646 (After S/N Prefix S64a & S63a-143733): Anti-tip Lock-out Mech S636 & S646
Manufacturer: Sunrise Medical

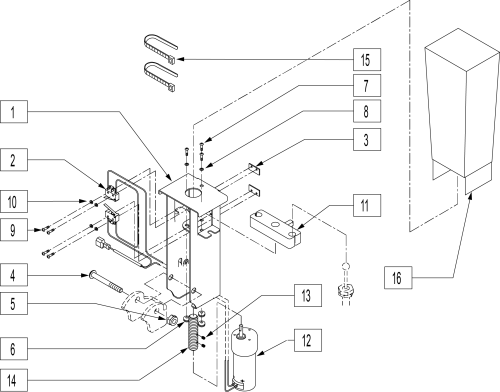

Anti-tip Lock-out Mech S636 & S646 parts diagram
(Click on image to enlarge)

Note: lock-out mechanism used with power recline only.
Pos. Part # Description Price Buy
1 505636 MOTOR ENCLOSURE
$170.00
2 120263 HARNESS ANTI-TIP LOCKOUT MOTOR N/A Please Call
3 124500 TILT LIMIT SWITCH PLATE
$23.00
4 226217 5/16-18 X 2" BH C/S BLK
$4.25
5 202116 5/16-18 NYLOCK NUT THIN BLK
$4.25
6 349585 GROMMET RUBBER 3/16 X 1/16
$4.25
7 281036 4-40 x 3/8 PAN PHIL M/S BLK
$4.25
8 200306 WASHER FLAT #4 .312 OD x .125 ID
$3.00
9 281013 2-56 x 1/2 PAN PHIL M/S BLK
$3.00
10 261536 #2 x 1/4 FLAT WASHER
$3.00
11 342086 ACME DRIVE NUT
$60.00
13 225082 6-32 x 3/16 SET SCR BLK N/A Please Call
15 560416 WIRE TIE T-35 N/A Please Call
16 755215 MOTOR ENCLOSURE COVER
$30.00
1 - 16 120262 MOTOR ASSY S6X6
$910.00
