Loading... Quickie Iris (S/N Prefix CGT)

Hgt Adj Backrest W/ Adj Stroller Handle (s/n Prefix Cgt)

Name: Quickie Iris (S/N Prefix CGT): Hgt Adj Backrest W/ Adj Stroller Handle (s/n Prefix Cgt)
Manufacturer: Sunrise Medical

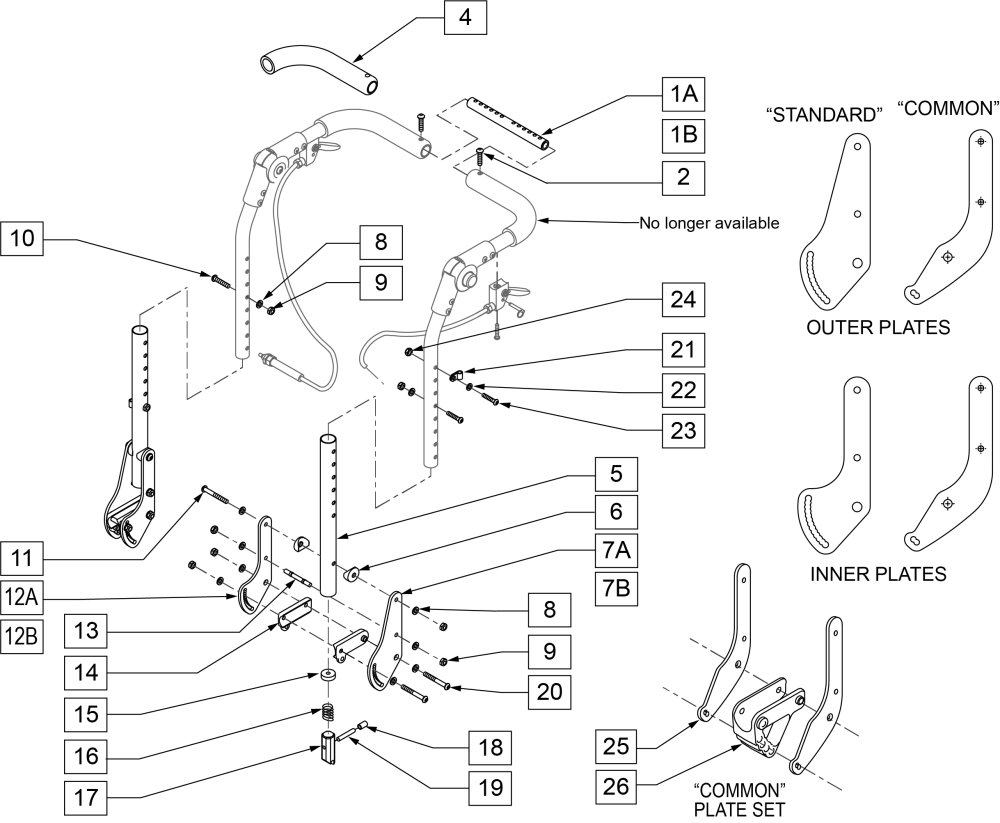

Hgt Adj Backrest W/ Adj Stroller Handle (s/n Prefix Cgt) parts diagram
(Click on image to enlarge)

NOTE: ITEM 4 - ORDER CABLE ASSEMBLY SEPERATELY BASED ON "TILT HANDLE-CABLE ASSM FOR HEIGHT ADJ BACK" PAGE.NOTE: ITEM 20 - ORDER HARDWARE FOR IRIS BACK BRACKETS BASED ON "BACK PLATE REPLACEMENT BOLT KIT" PAGE.NOTE: FITS CHAIRS W/ SERIAL NUMBER PREFIX CGT ONLY.NOTE: SEE "BACKPLATE REPLACEMENT BOLT KIT" REFERENCE TABLE ATTACHED.
Pos. Part # Description Price Buy
1A 521272 SHAFT GROWTH HANDLE 14 -19" WIDE
$39.00
1B 521392 SHAFT GROWTH HANDLE 17 -22" WIDE
$43.00
2 226168 1/4 - 28 x 5/8 BH C/S
$4.25
3A 681434 ADJUSTABLE HEIGHT ADJ PH -STANDARD- RIGHT
$232.00
3A 681435 ADJUSTABLE HEIGHT ADJ PH -STANDARD- LEFT
$232.00
3B 681436 ADJUSTABLE HEIGHT ADJ PH -TALL- RIGHT
$243.00
3B 681437 ADJUSTABLE HEIGHT ADJ PH -TALL- LEFT
$243.00
4 560638 FOAM GRIP
$11.50
5 520757 TUBE BACK FRAME LOWER
$36.00
6 561004 1” SADDLE 1/4” HOLE
$4.25
7A 500584 BACK PLATE OUTER
$22.00
7B 500585 BACK PLATE OUTER OFFSET
$21.00
8 106943 WASHER FLAT AN 1/4 ROHS
$4.25
9 106935 NUT NYLOCK THIN 1/4-28 ROHS
$6.25
10 226223 1/4 -28 x 1 1/4 BH C/S BLK
$4.25
11 221066 1/4 -28 x 2 BHCS 1.70 SHOULDER
$4.25
12A 500673 BACK PLATE INNER
$21.00
12B 500674 BACK PLATE INNER OFFSET
$21.00
13 481042 BACK REL STOP PIN QTS
$11.50
14 560512 SADDLE BACK REST -RIGHT- RIGHT
$4.25
14 560513 SADDLE BACK REST -LEFT- LEFT
$4.25
15 483020 S/A SPRING RETAINER
$4.25
16 321110 S/A LATCH SPRING
$4.25
17 560173 S-A LATCH .885 OD
$22.00
18 126238 PUSH ON ROUND CAP
$4.25
19 481084 BACK RELEASE PIN Z2/QT/EX
$4.25
21 349511 1/2 ID PLASTIC CLAMP BLK
$4.25
22 261204 #10 AN WASHER .063
$4.25
23 226032-QU 10-32 x 1 1/2 BH C/S BLK
$4.25
24 200100-QU 10-32 NYLOCK NUT
$4.25
25 483317 PUSH BUTTON MULTI POSITION HINGE
$4.25
26 500689 BACKPLATE COMMON CGTS
$28.00
27 560517 BLOCK ANGLE BACKREST MOUNT
$11.50
5, 15 - 19 681111 ADJUSTABLE HEIGHT ADJ PH LOWER TUBE W/ LATCH
$134.00
1A - 3A, 8 - 10 681440 STROLLER HANDLE -STANDARD 14-19 WIDE
$416.00
1B - 3A, 8 - 10 681441 STROLLER HANDLE -STANDARD 17-22 WIDE
$416.00
1A - 3B, 8 - 10 681442 STROLLER HANDLE -LONG 14-19 WIDE
$416.00
1B - 3B, 8 - 10 681443 STROLLER HANDLE -LONG 17-22 WIDE
$416.00
1A - 3A, 4 - 7A, 8 - 12A, 13 - 24 921554 ADJUSTABLE HEIGHT ADJ PH STANDARD 14-19 WIDE S/PLATE- Complete Retro Kit
$769.00
1B - 3A, 4 - 7A, 8 - 12A, 13 - 24 921555 ADJUSTABLE HEIGHT ADJ PH STANDARD 17-22 WIDE S/PLATE- Complete Retro Kit
$769.00
1A - 3B, 4 - 7A, 8 - 12A, 13 - 24 921556 ADJUSTABLE HEIGHT ADJ PH TALL 14-19 WIDE S/PLATE- Complete Retro Kit
$769.00
1B - 3B, 4 - 7A, 8 - 12A, 13 - 24 921557 ADJUSTABLE HEIGHT ADJ PH TALL 17-22 WIDE S/PLATE- Complete Retro Kit
$769.00
