Quickie Qs5 X

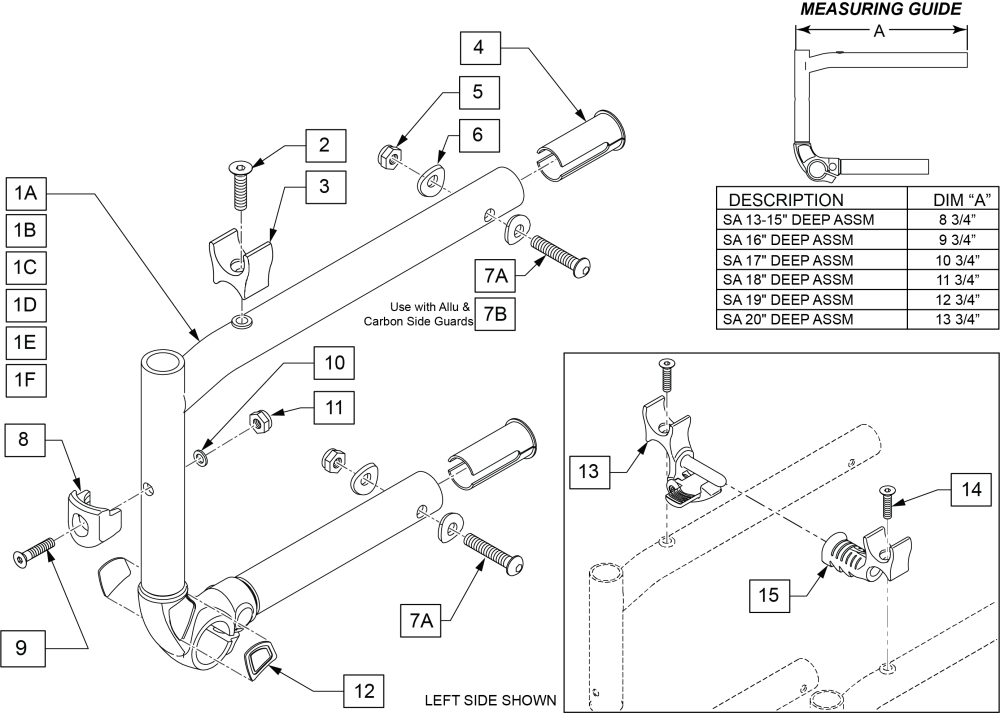

Name: Quickie Qs5 X: Front Side Frame
Manufacturer: Sunrise Medical
(Click on image to enlarge)
Manufacturer: Sunrise Medical
Part Picture
(Click on image to enlarge)
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 1A - 7A, 8 - 11 | 169741S | FRONT FRM SA ASSM 13-15 D QS5X |
$130.00
|
EA |
|
|
| 1B - 7A, 8 - 11 | 169742S | FRONT FRAME SA ASSM 16 D QS5X |
$130.00
|
EA |
|
|
| 1C - 7A, 8 - 11 | 169743S | FRONT FRAME SA ASSM 17 D QS5X |
$130.00
|
EA |
|
|
| 1D - 7A, 8 - 11 | 169744S | FRONT FRAME SA ASSM 18 D QS5X |
$130.00
|
EA |
|
|
| 1E - 7A, 8 - 11 | 169745S | FRONT FRAME SA ASSM 19 D QS5X |
$130.00
|
EA |
|
|
| 1F - 7A, 8 - 11 | 169746S | FRONT FRAME SA ASSM 20 D QS5X |
$130.00
|
EA |
|
|
| 2, 3 | 169747 | SADDLE KIT FOLDING |
$15.00
|
EA |
|
|
| 4 | 170134 | FRAME BUSHING KIT |
$15.00
|
EA |
|
|
| 5, 6, 7A, 7B | 169748 | FRONT FRAME FASTENER KIT QS5X |
$15.00
|
EA |
|
|
| 7B | 102262-006 | BHCS, M6X1X40, FULL, NP | N/A | EA | Please Call | |
| 8 - 11 | 119514S | LATCH RECEIVER KIT |
$77.00
|
EA |
|
|
| 12 | 170133 | TOUCH POINT REPLACEMENT KIT- 1 inside piece & 1 outside piece | 1 inside piece & 1 outside piece |
$15.00
|
EA |
|
| 13 - 15 | 170204 | FRAME FOLD LOCK KIT STD |
$20.00
|
EA |
|
