Focus CR Replacement Parts by Ki Mobility

Name: Focus CR: Focus Cr Base Frame
Manufacturer: Ki Mobility

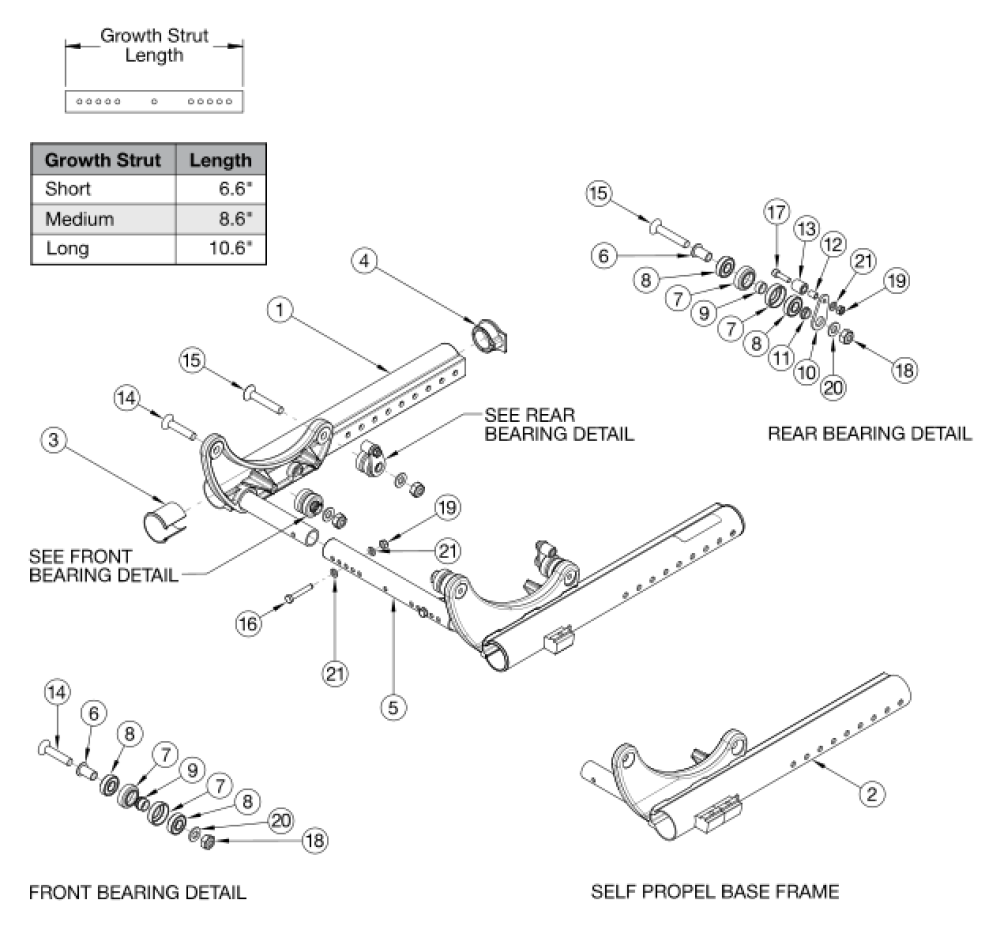

(Click on image to enlarge)

Color Codes Heavy Duty Base Frame required for X-Large (20"-24") Frame Width Range

Attachments:

Pos.	Part #	Description	Remarks	Price	UOM	Buy
1a, 3, 4	501064_ _ _	Base Frame Assembly Right		N/A	EA	Please Call
1b, 3, 4	501065_ _ _	Base Frame Assembly Left		N/A	EA	Please Call
2a, 3, 4	503413_ _ _	Base Frame Self Propel Assembly Right		N/A	EA	Please Call
2b, 3, 4	503414_ _ _	Base Frame Self Propel Assembly Left		N/A	EA	Please Call
6 - 9, 14, 18, 20	502412	Front Bearing Kit Focus (1 Side)		$76.21	EA
6 - 13, 15, 17 - 21	502413	Rear Bearing Kit Focus (1 Side)		$121.18	EA
6 - 15, 17 - 21	501066	Bearing Replacement Kit Focus		$394.44	EA
3	001009	Sleeve Base Frame TILT		$5.84
4	001010	Plug Base Frame TILT		$10.95
5a	001011	Growth Strut, Base, Small Tilt- Used on Small Width Range	Used on Small Width Range	$20.46	EA
5b	001012	Growth Strut, Base, Medium Tilt- Used on Medium Width Range	Used on Medium Width Range	$20.46	EA
5c	001013	Growth Strut, Base, Large Tilt- Used on Large Width Range	Used on Large Width Range	$20.46	EA
6	001014	Bearing Shaft TILT		$26.76
7	001015	Bearing Liner TILT		$5.84
8	100902	Bearing 1 1/8" x 1/2" R8RS		$6.82	EA
9	001016	Bearing Spacer TILT		$7.29
10	001017	Swivel Plate TILT		$8.02
12	001019	Bearing Shaft Upper		$6.08
13	001020	Bearing Upper TILT		$5.84
14	101816	M10 x 50 FHCS Blk Zn		$3.98
15	101817	M10 x 60 FHCS Blk Zn		$5.12
16	101825	M6 x 40 HHCS Blk Zn		$1.13	EA
17	101845	M6 x 22 SHCS Blk Zn		$1.71
18	101840	M10 Nylock Nut Blk Zn		$1.13	EA
19	100658	M6 Nylock Nut Blk Zn		$1.13	EA
20	101859	M10 Flat Washer Blk Zn		$0.58	EA
21	100746	M6 Flat Washer Blk Zn		$1.71	EA
