Name: Focus CR: Focus Cr Inverted Axle Plate
Manufacturer: Ki Mobility

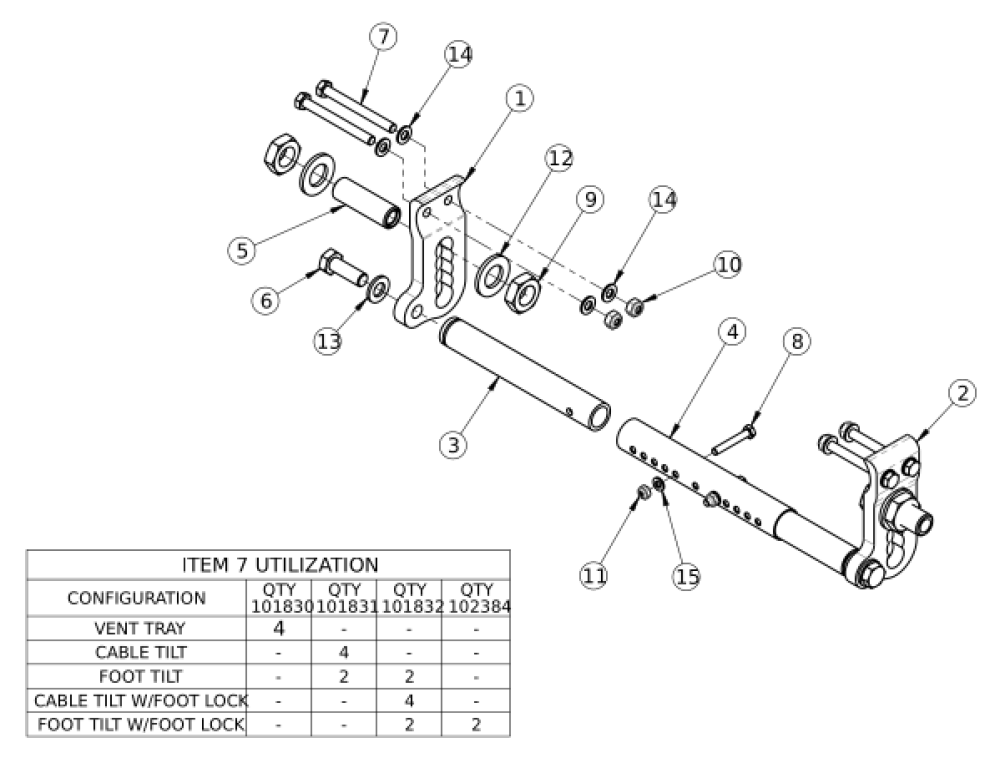

Focus Cr Inverted Axle Plate parts diagram
(Click on image to enlarge)

Standard vs Inverted Axle Plates If changing from a standard axle plate, new wheel locks may be required. Effective 3/23/2023, Axle Receiver 114479 has replaced 001419. For axle plates used with the Drum Brake, see Focus CR Drum Brake page.
Pos. Part # Description Price UOM Buy
1, 3, 5, 6, 7d, 9, 10, 12 - 14 117335 Inverted Axle Plate Kit, Right, Focus- Replacement for kit# 502643
$194.36
EA
2, 3, 5, 6, 7d, 9, 10, 12 - 14 117336 Inverted Axle Plate Kit, Left, Focus- Replacement for kit# 502644
$194.36
EA
1 - 3, 5, 6, 7d, 9, 10, 12 - 14 117337 Inverted Axle Plate Kit, Focus (PAIR)- Replacement for kit# 501425
$388.74
EA
1 003772 Inverted Axle Plate Right - Tilt- Replacement for part# 001394 which was used on serial numbers prior to FCR0025346 and FCHD002317
$85.69
EA
2 003773 Inverted Axle Plate Left - Tilt- Replacement for part# 001395 which was used on serial numbers prior to FCR0025346 and FCHD002317
$85.69
EA
3 001067 Axle Strut Tilt
$46.19
4a 001011 Growth Strut, Base, Small Tilt
$21.18
EA
4b 001012 Growth Strut, Base, Medium Tilt
$21.18
EA
4c 001013 Growth Strut, Base, Large Tilt
$21.18
EA
4d 112005 Growth Strut, Base, X-Large Tilt
$23.50
EA
5 114479 Axle Sleeve Bushing 3", Focus- Replaced part number 001419
$22.88
EA
6 101833 HHCS M12 X 1.75 X 35 ENVRBLK W/PRE5, DIN933
$9.40
7a 101830 M8 x 70 HHCS Blk Zn
$2.94
EA
7b 101831 M8 x 80 HHCS Blk Zn
$3.44
EA
7c 101832 M8 x 90 HHCS Blk Zn
$4.12
EA
7d 102384 M8 x 100 HHCS Blk Zc Part THD
$4.12
8 101825 M6 x 40 HHCS Blk Zn
$1.17
EA
9 101836 Nut M20 x 1.5 Thin Blk Zn
$4.12
EA
10 100659 M8 Nylock Nut Blk Zn
$1.17
EA
11 100658 M6 Nylock Nut Blk Zn
$1.17
EA
12 101855 Washer 3/4 SAE G8 Blk Zn
$2.36
EA
13 101860 Washer Flat M12 Blk Zn
$1.17
14 101858 Washer Flat M8 Blk Zn
$0.60
EA
15 100746 M6 Flat Washer Blk Zn
$1.77
EA
