Name: Focus CR: Tilt Iv Pole
Manufacturer: Ki Mobility

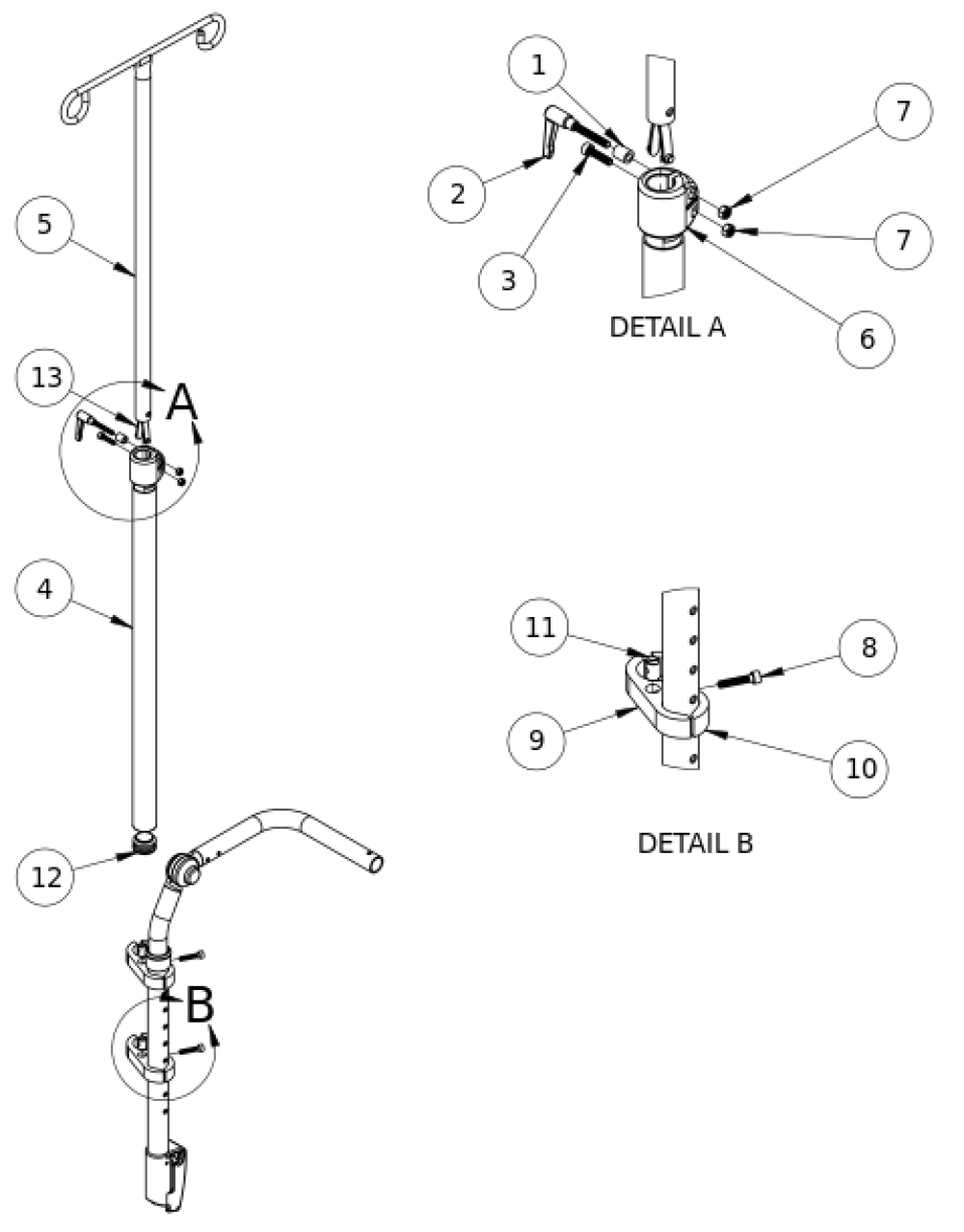

Tilt Iv Pole parts diagram
(Click on image to enlarge)

Pos.Part #DescriptionPriceUOMBuy
1 - 13502409IV Pole Assembly Focus/Flip
$275.00
EA
1, 2, 3, 6, 7502401IV Pole Top Clamp Assembly
$46.71
EA
8, 9, 10, 11502408IV Pole Bottom Clamp Assembly Focus
$170.76
EA
1102766Spacer 3/8R. X 7/16 x .218 ID.
$7.42
EA
2102767Handle wM5 x 32L Threaded Stud
$30.95
EA
3101843M5 x 20 SHCS Blk Zn
$0.56
EA
4002581IV Pole Outer Tube 28" Height
$36.02
EA
5002585IV Pole Upper
$28.15
EA
6002395Footrest Clamp Left LW
$7.32
EA
7100657M5 Nylock Nut Blk Zn
$0.56
EA
8100780M6 x 25 SHCS ZC
$2.21
EA
9002685IV Pole Clamp 1-1/8" 1" Thru 1-1/4" w/ Cross Dowel Hole
$39.40
EA
10002686IV Pole Clamp 1-1/8" 1" Thru 1-1/4"
$39.40
EA
12100532Tube End Plug 1 1/8"
$2.76
EA
13102769Snap Button Plastic
$3.66
EA
